Body Emblem: Service and Repair
ORNAMENTINSTALLATION

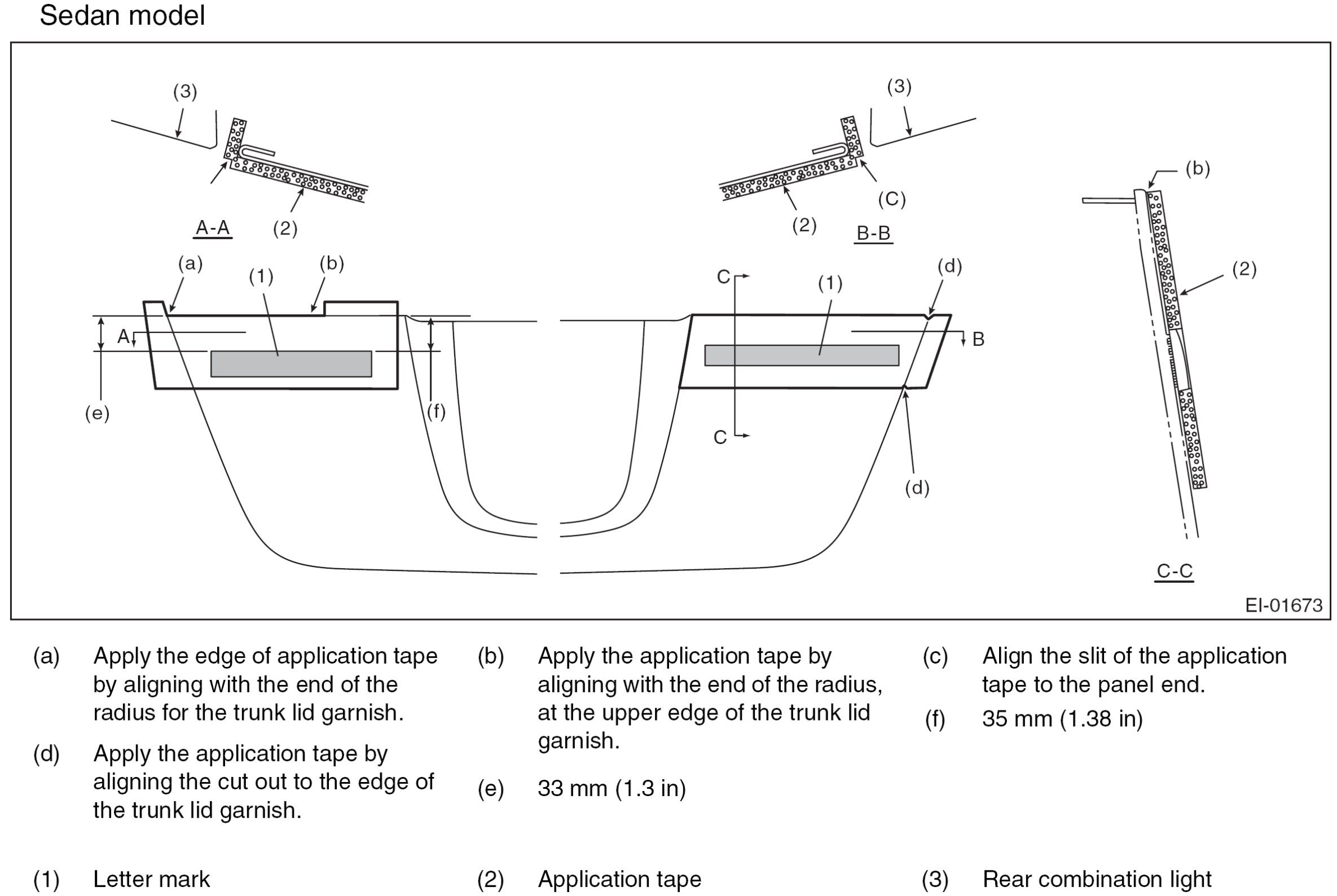

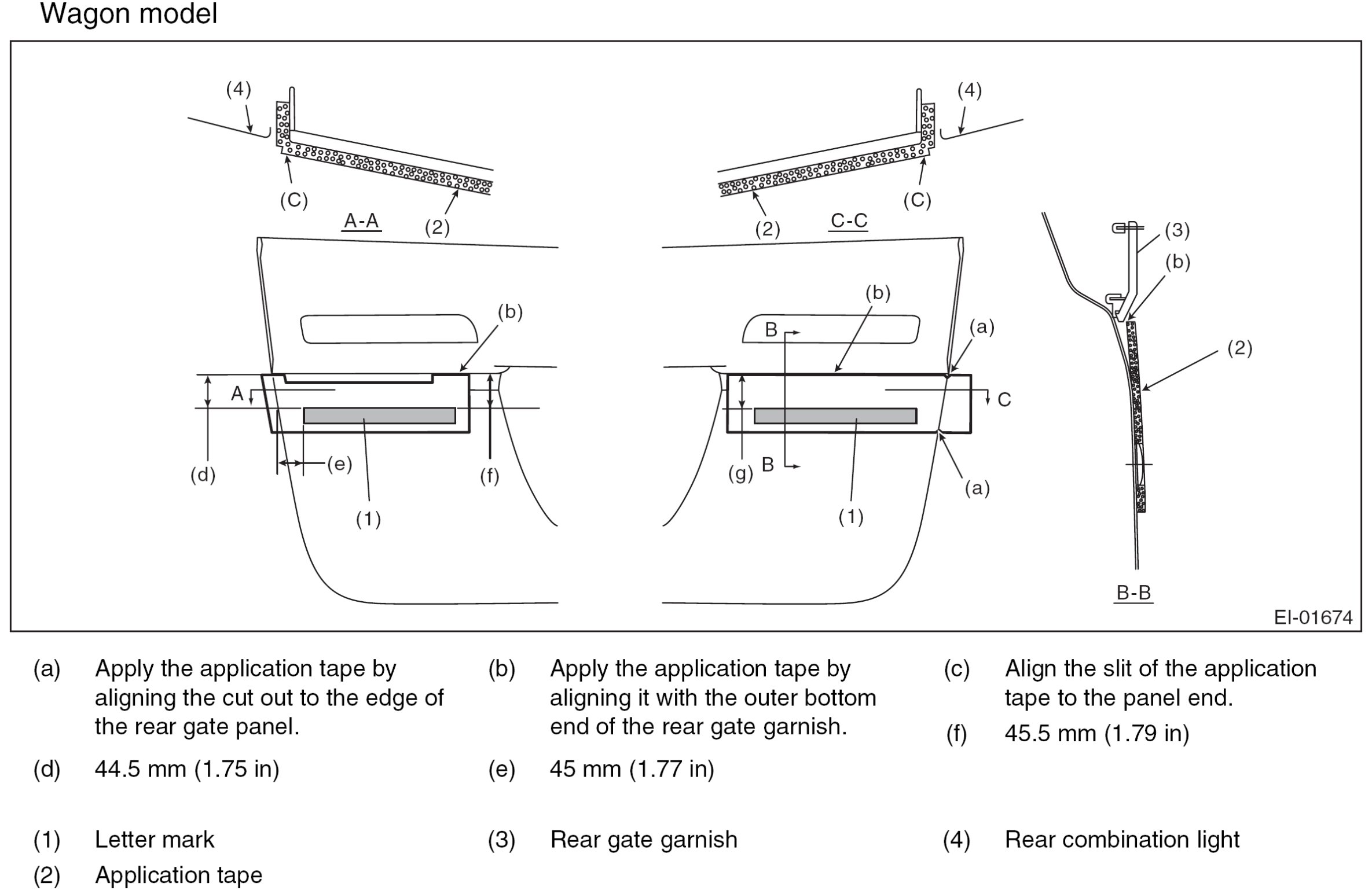

1. LETTER MARK
Adhere the letter mark according to the following measurements.

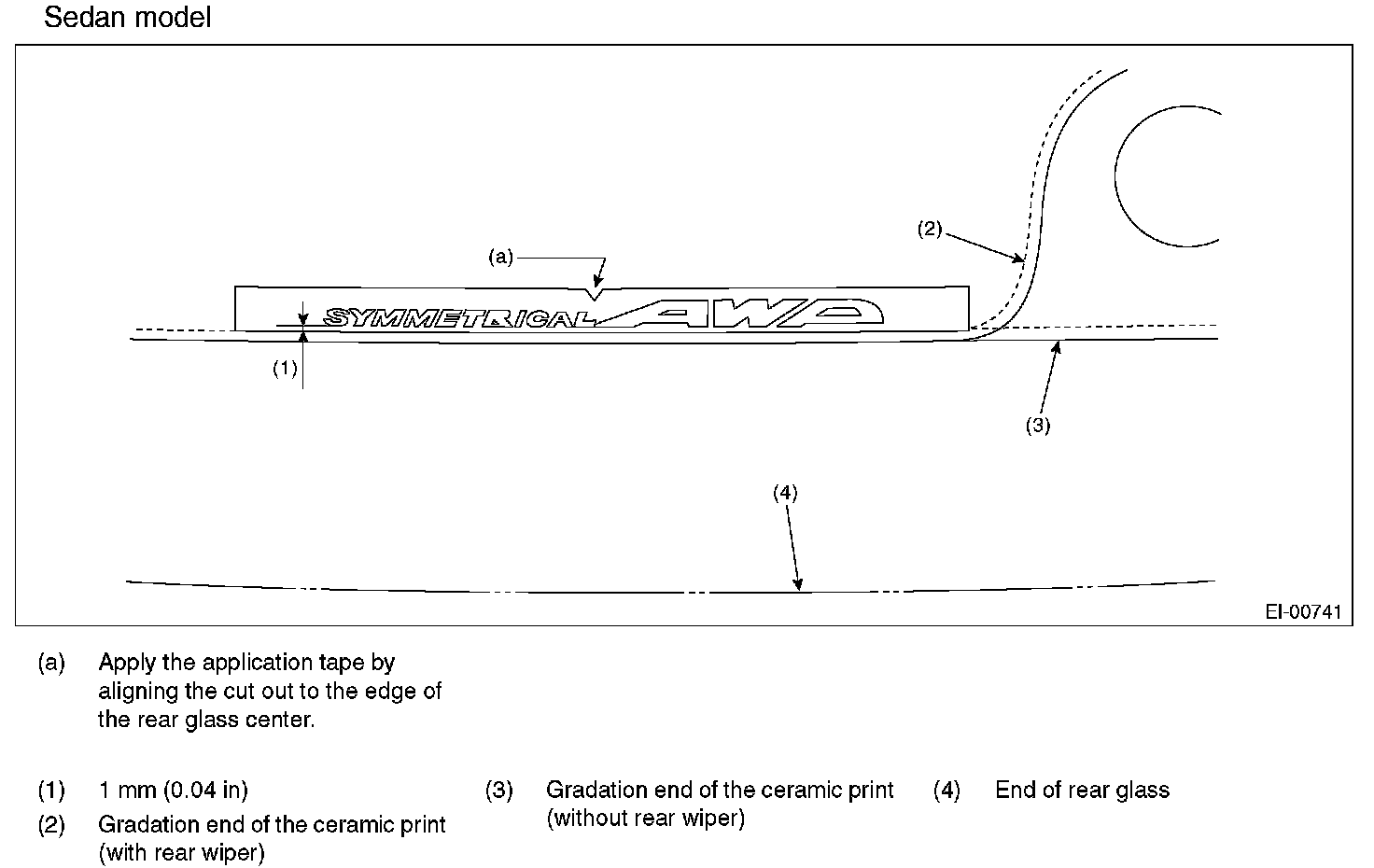

2. AWD STICKER
Apply the AWD sticker from inside of the glass according to the following dimensions.
INSTALLATION
1. LETTER MARK
Adhere the letter mark according to the following measurements.
2. AWD STICKER
Apply the AWD sticker from inside of the glass according to the following dimensions.
