U1213

DTC U1213 CAN-HS VDC/ABS DATA ABNORMAL

DTC DETECTING CONDITION:
VDC/ABSCM itself is malfunctioning, the main harness is open or shorted, the connector is not connected properly, or the terminal is crimped poorly.

TROUBLE SYMPTOM:
- ABS warning light and VDC warning light come on.
- "Er HC" or "Er Ab" is displayed in odo/trip meter. (Except for meter with MID)

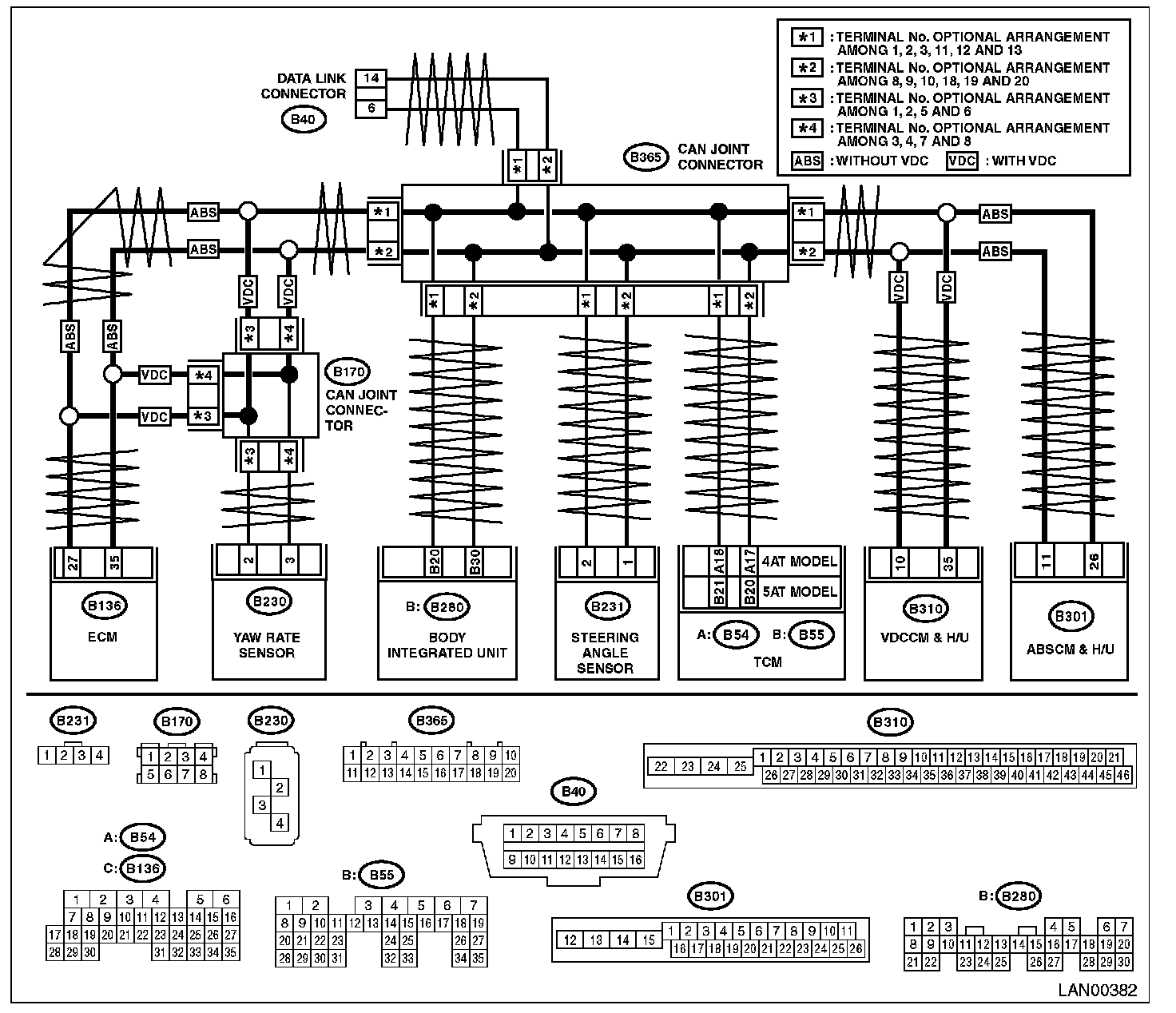

WIRING DIAGRAM
