U1212

DTC U1212 CAN-HS TCM DATA ABNORMAL

DTC DETECTING CONDITION:
TCM has error, harness between the main harness splice and TCM is open or shorted, connectors are not connected securely, or the terminal has poor crimping.

TROUBLE SYMPTOM:
- SPORT indicator light blinks.
- "Er HC" or "Er tC" is displayed in odo/trip meter. (Except for meter with MID)

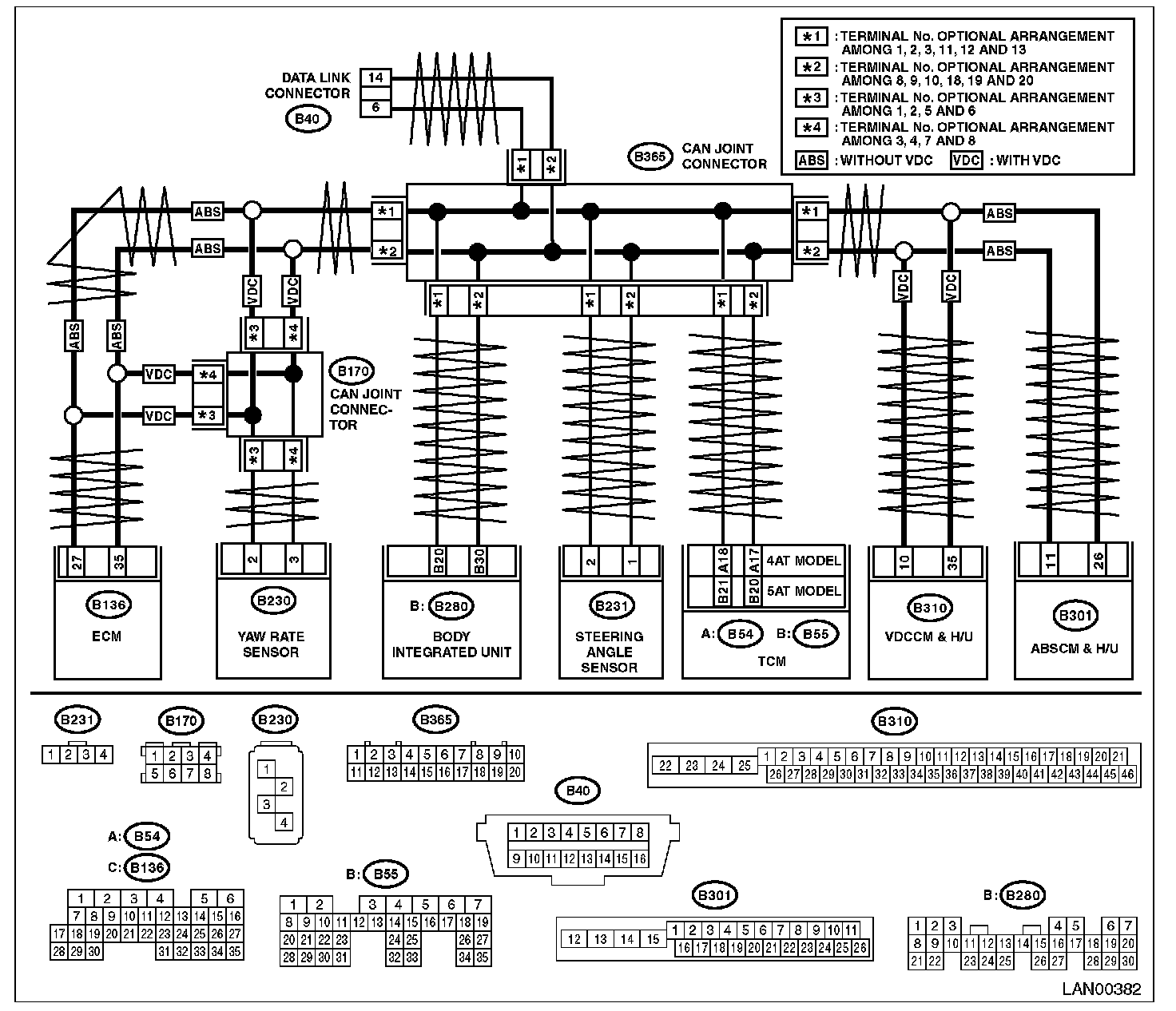

WIRING DIAGRAM
