P2138

DTC P2138 THROTTLE/PEDAL POSITION SENSOR/SWITCH "D7"E" VOLTAGE CORRELATION

DTC DETECTING CONDITION:
- Immediately at fault recognition
- GENERAL DESCRIPTION P2138

CAUTION: After repair or replacement of faulty parts, perform Clear Memory Mode Clear Memory Mode and Inspection Mode. Preparation For the Inspection Mode

TROUBLE SYMPTOM:
- Improper idling
- Poor driving performance

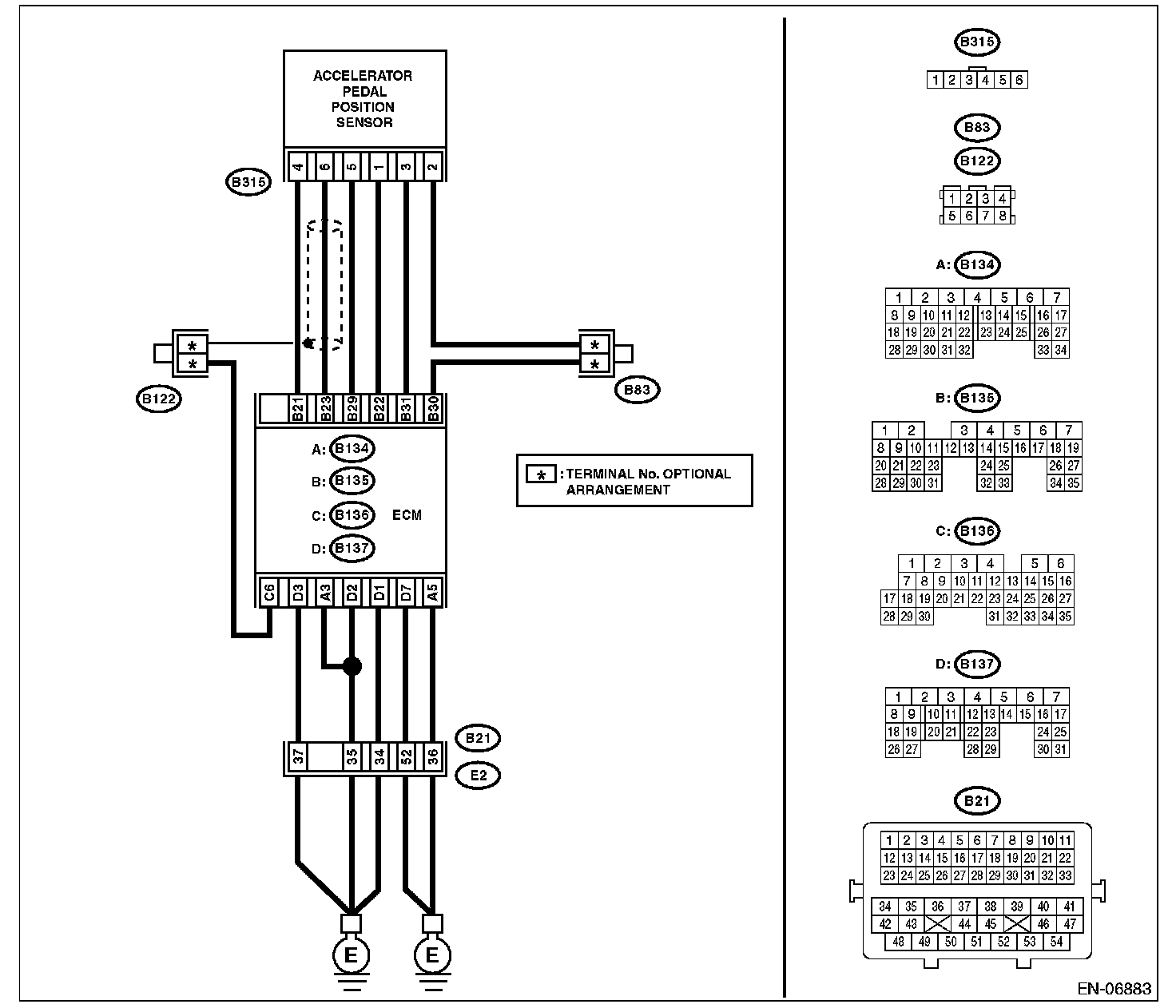

WIRING DIAGRAM:

Wiring Diagram:

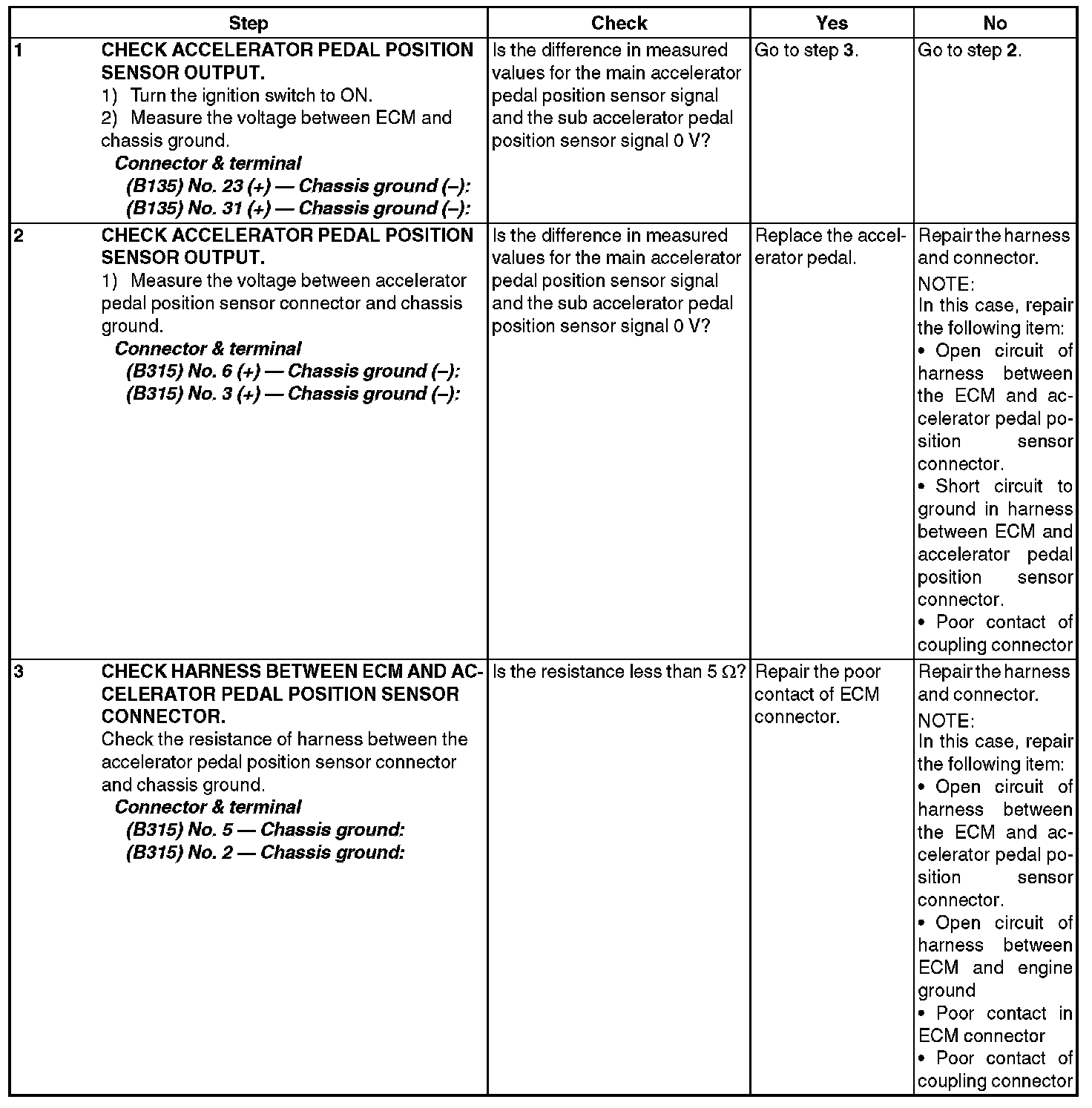

Step 1-3:
