P1762

DTC P1762 LATERAL ACCELERATION SENSOR CIRCUIT HIGH
DTC DETECTING CONDITION: Lateral G sensor output voltage fault

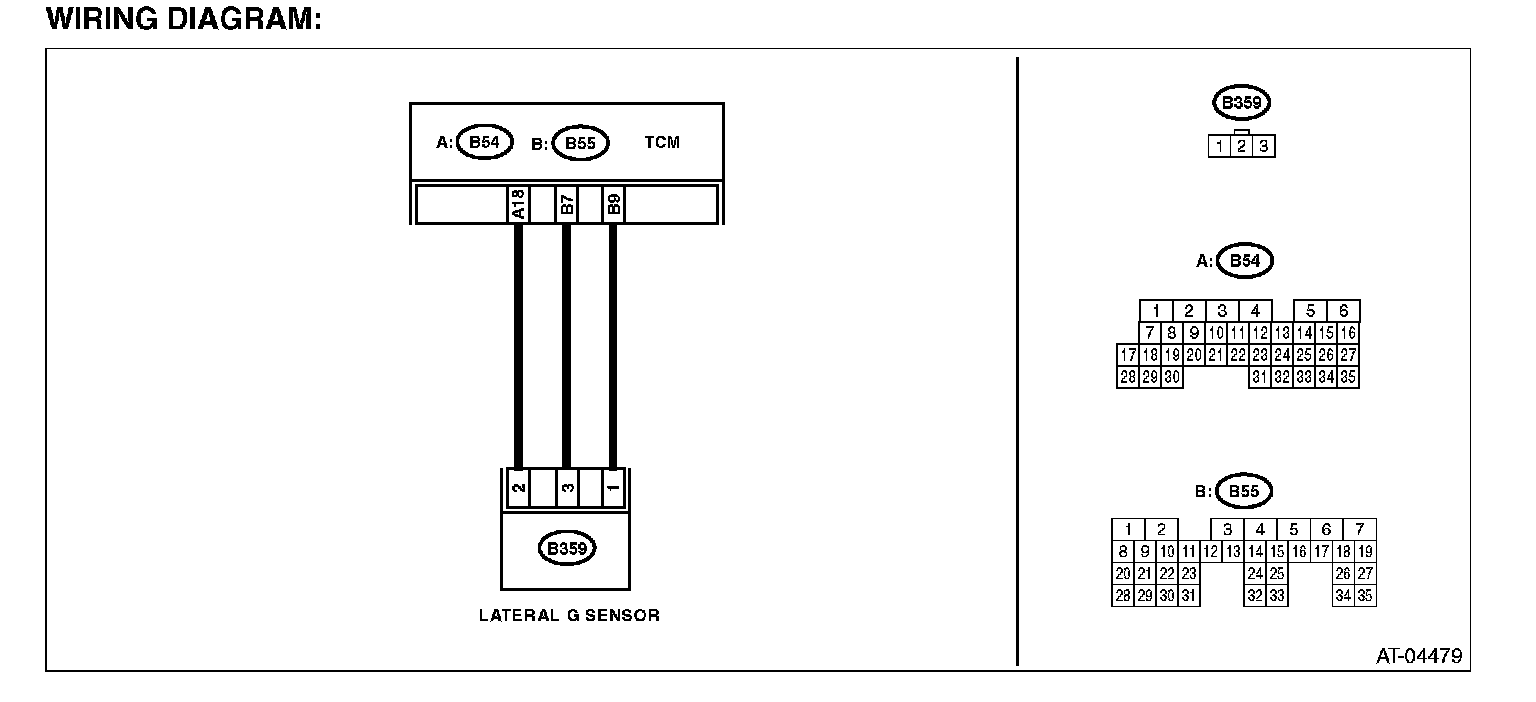

WIRING DIAGRAM:

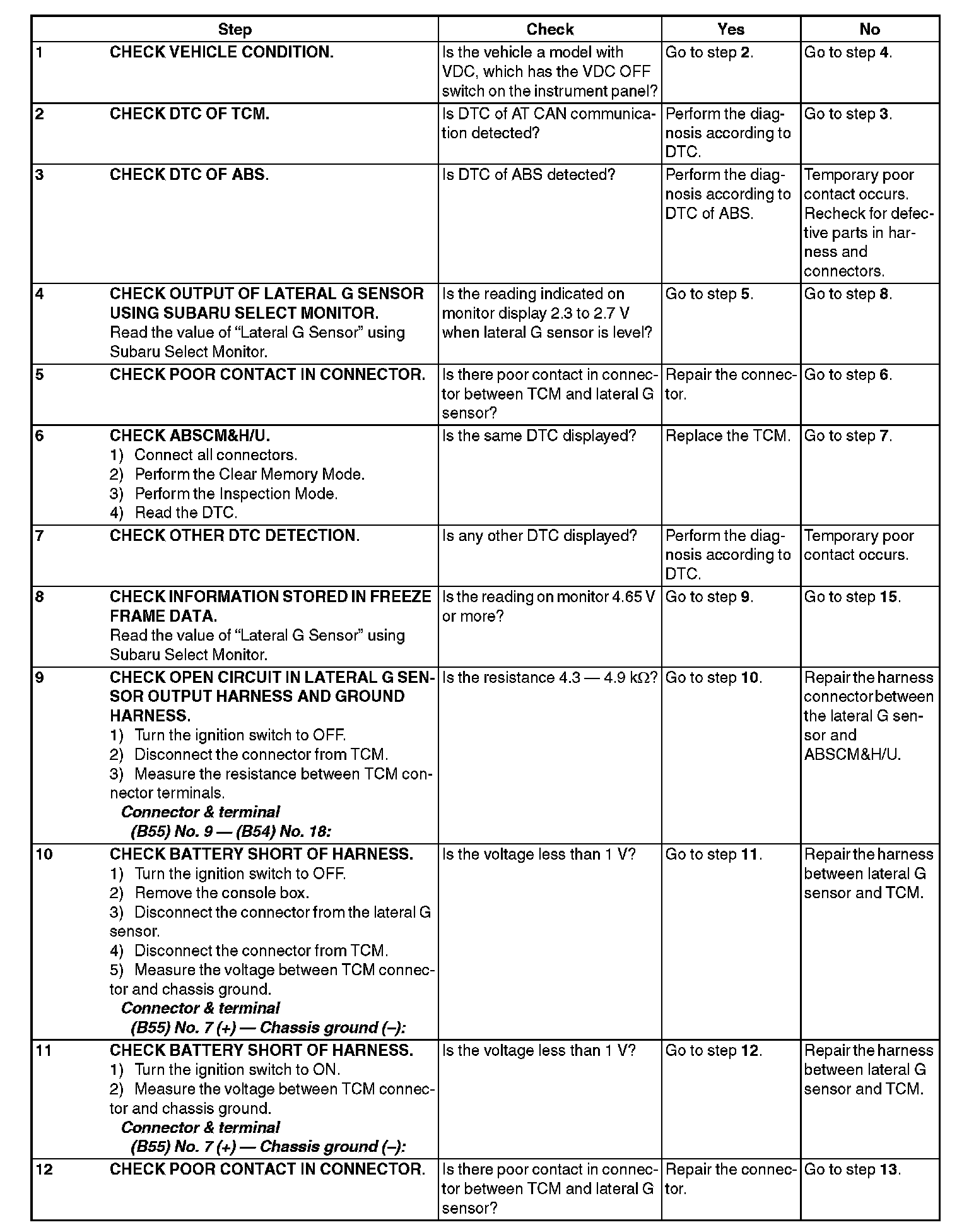

Step 1-Step 12:

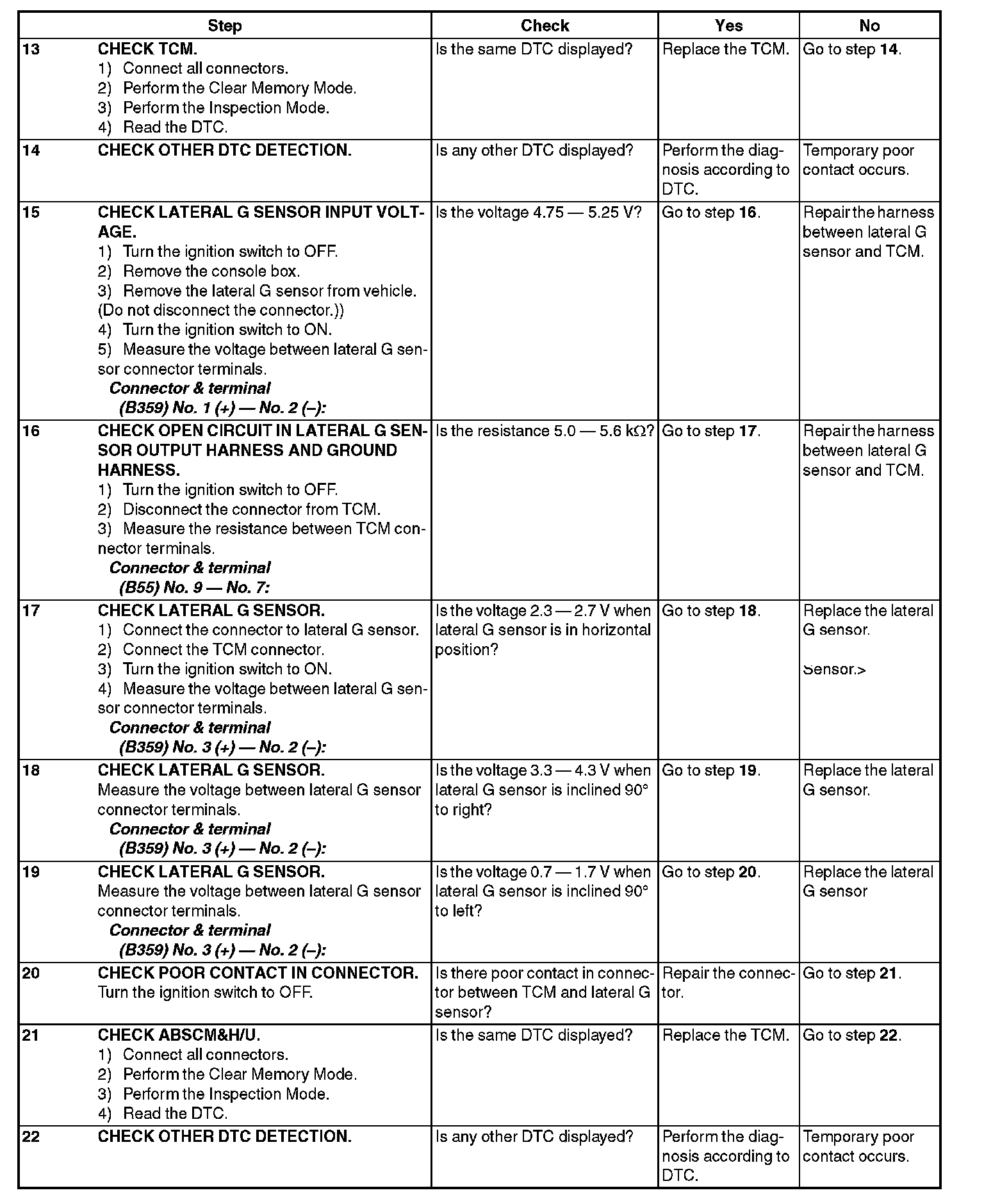

Step 13-Step 22:
