P0743

DTC P0743 TORQUE CONVERTER CLUTCH CIRCUIT ELECTRICAL
DTC DETECTING CONDITION: Output signal circuit of lock-up pressure linear solenoid is open or shorted.
TROUBLE SYMPTOM: No lock-up occurs. (After engine is warmed up.

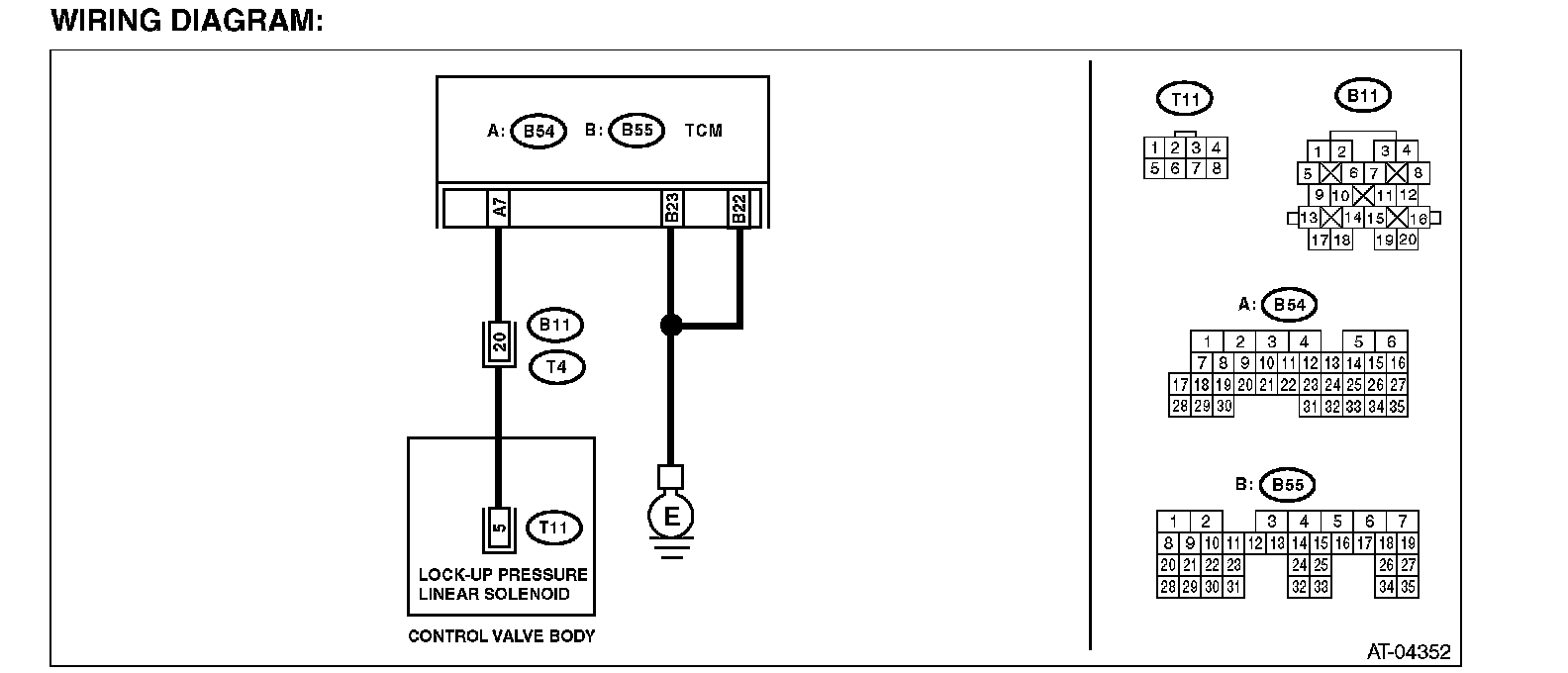

WIRING DIAGRAM:

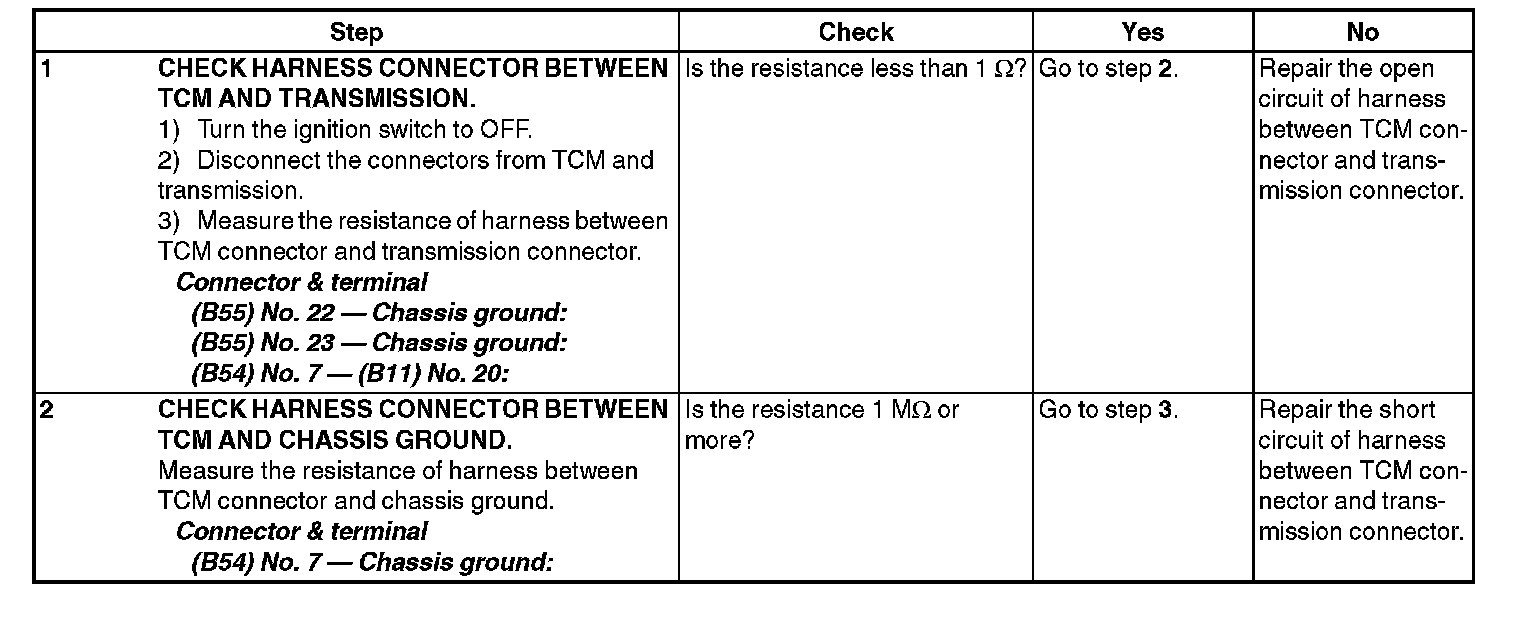

Step 1-Step 2:

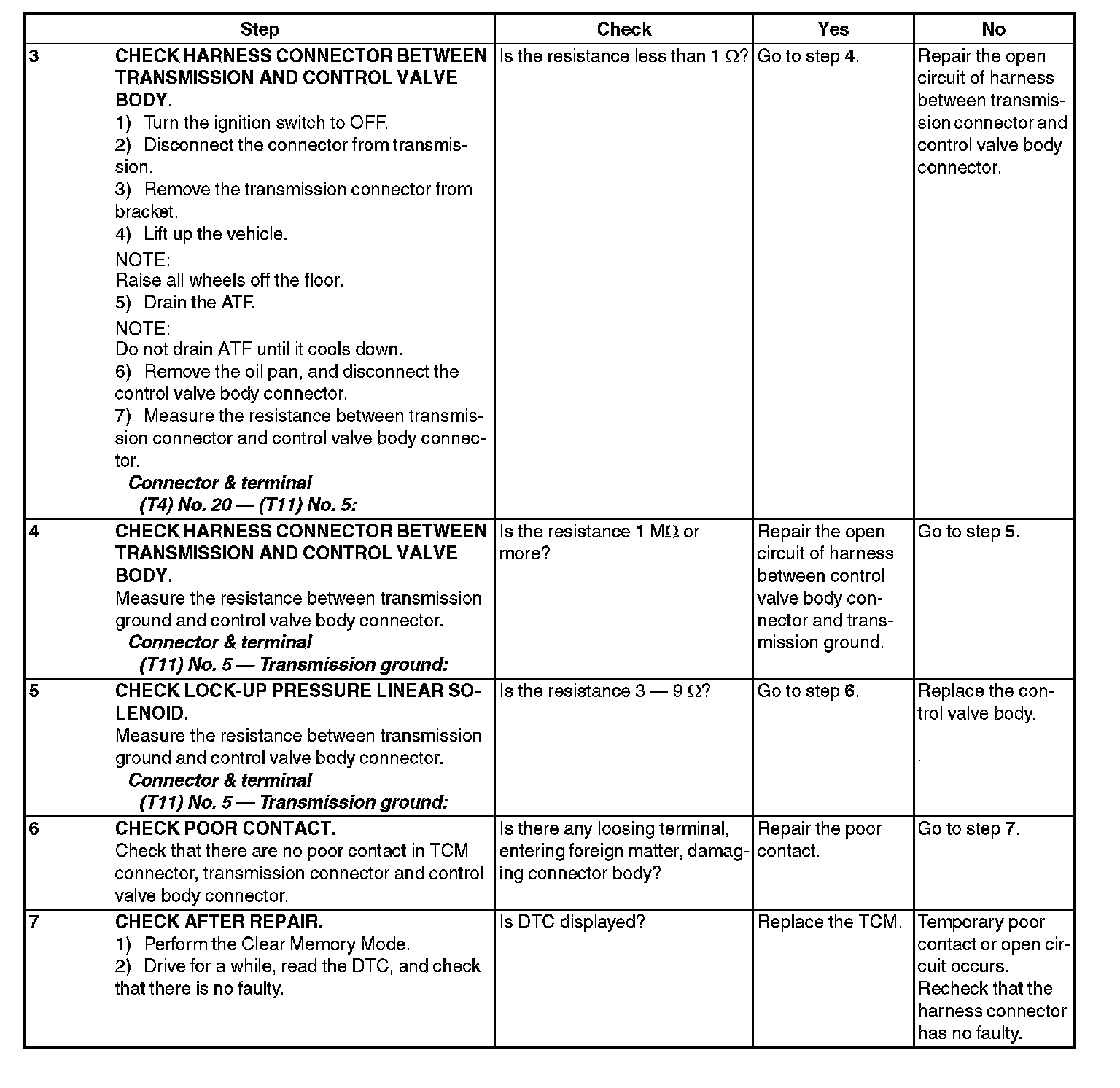

Step 3-Step 7:
