Restraint Systems

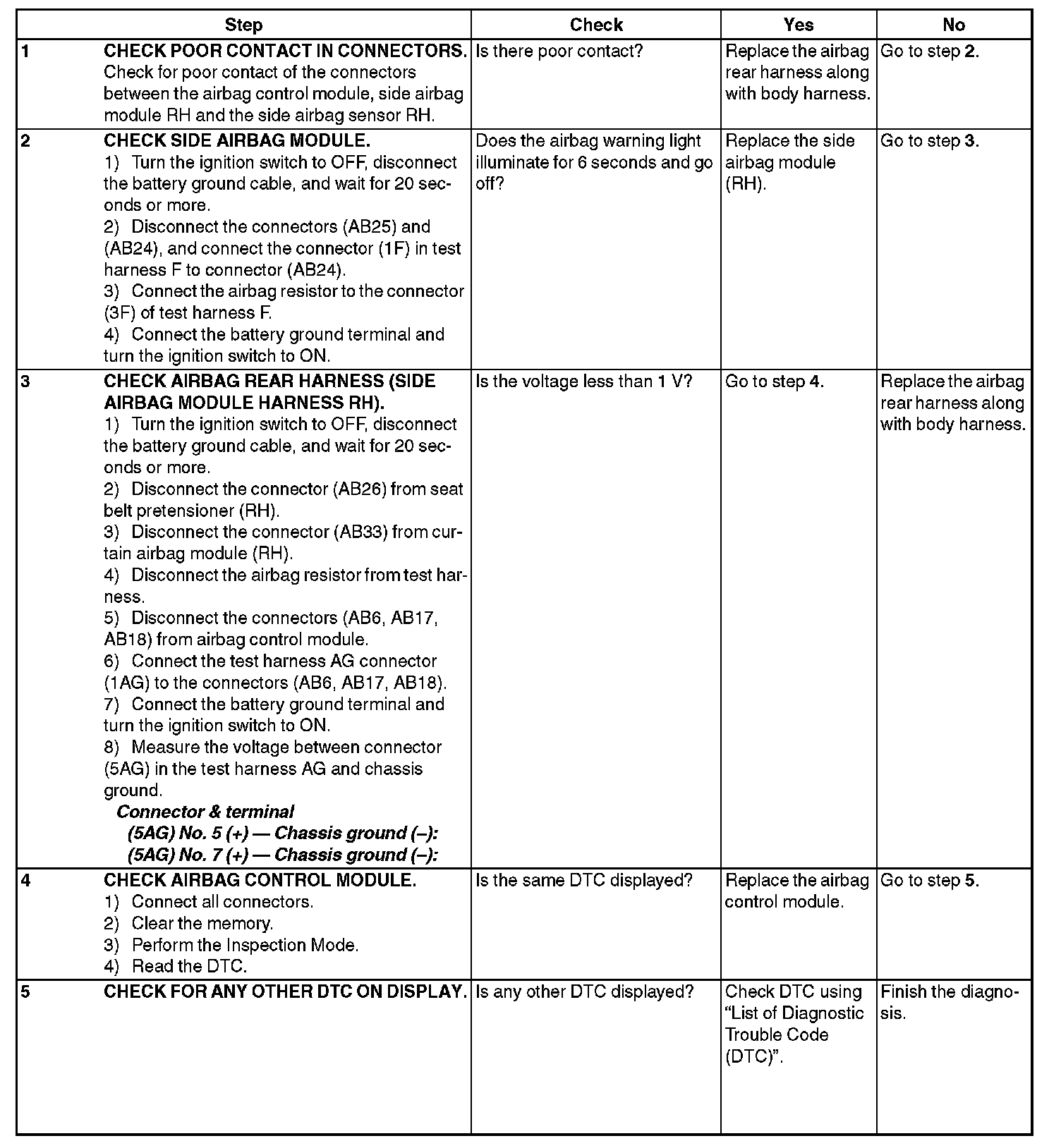

DTC 45 SIDE AIRBAG RH FAILUREDTC DETECTING CONDITION:
- Side airbag harness (RH) is shorted to power supply.
- Airbag control module is faulty.
CAUTION:
- Before diagnosing the airbag system, be sure to turn the ignition switch to OFF, disconnect the ground cable from the battery, and wait 20 seconds or more before starting to work.
- When replacing the airbag module, seat belt pretensioner, roll connector, control module and sensor, reconnect each part and check that the warning light operates properly.
- When inspecting the airbag main harness, disconnect the airbag module connectors of the driver's and passenger's seats for safety.
- When inspecting the airbag rear harness, disconnect the side airbag module connector, curtain airbag module connector and seat belt pretensioner connector for safety reasons.
WIRING DIAGRAM
Wiring Diagram:
