P2135

DTC P2135 THROTTLE/PEDAL POSITION SENSOR/SWITCH "A"/"B" VOLTAGE CORRELATION

1. OUTLINE OF DIAGNOSIS
Judge as NG when the signal level of throttle position sensor 1 is different from the throttle position sensor 2.

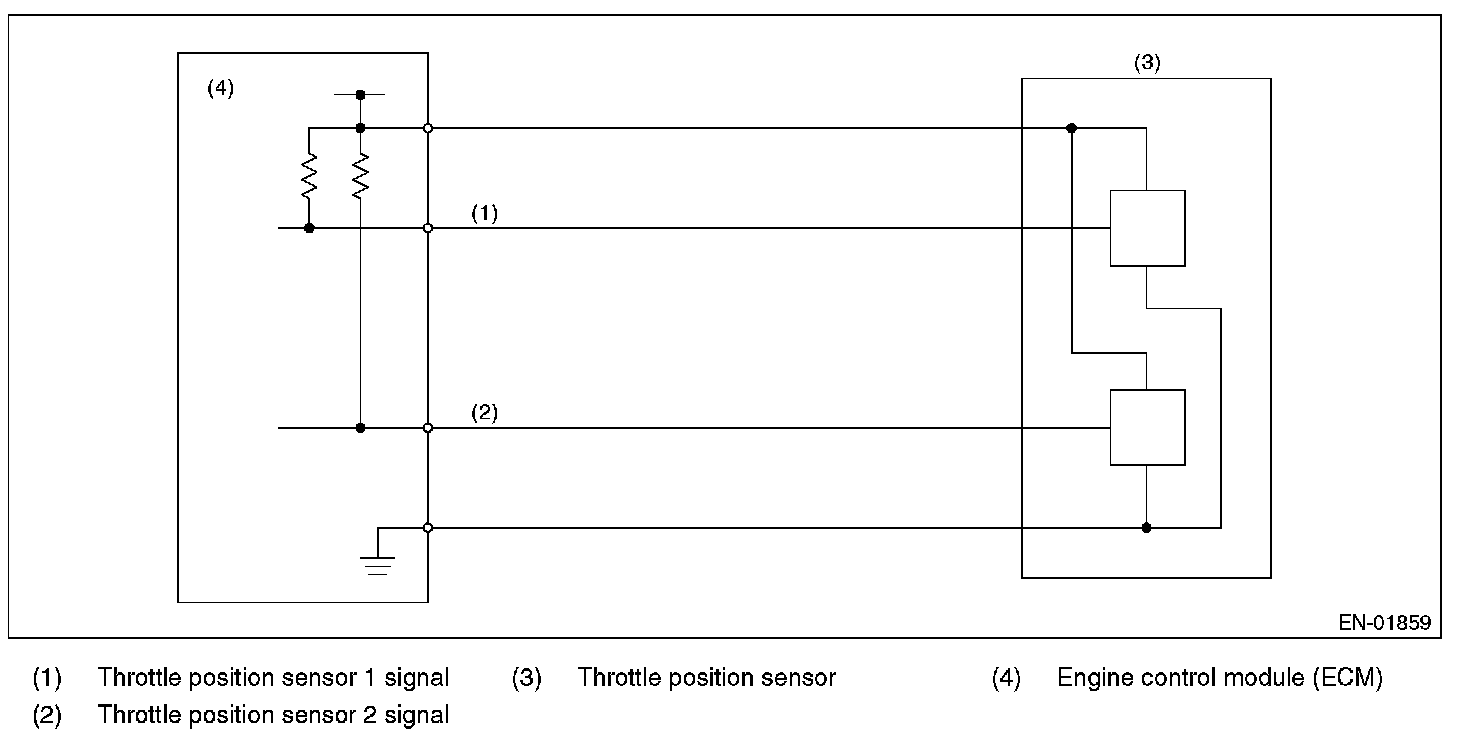

2. COMPONENT DESCRIPTION

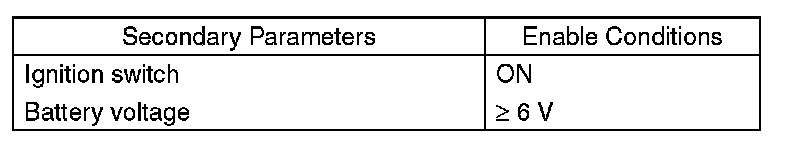

3. ENABLE CONDITION






4. GENERAL DRIVING CYCLE
Always perform the diagnosis continuously.

5. DIAGNOSTIC METHOD

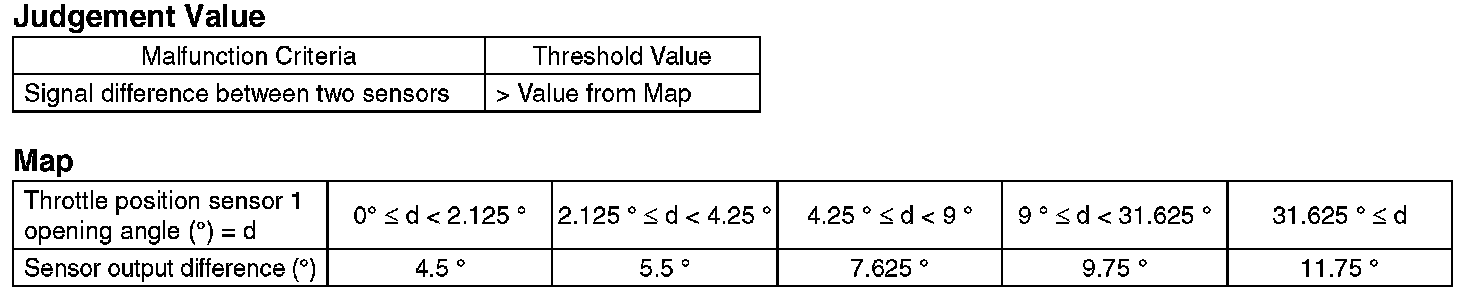

Abnormality Judgement
If the duration of time while the following conditions are met is longer than the time indicated, judge as NG.






Time Needed for Diagnosis: 212 ms

Malfunction Indicator Light Illumination: Illuminates as soon as a malfunction occurs.

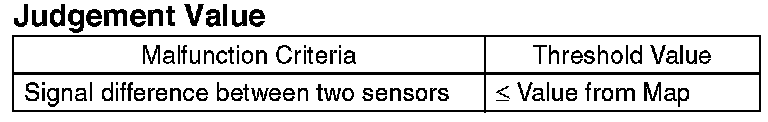

Normality Judgement
Judge as OK and clear the NG if the continuous time while the following conditions are established is more than the predetermined time.






Time Needed for Diagnosis: 24 ms
