P0700

DTC P0700 TRANSMISSION CONTROL SYSTEM (MIL REQUEST)

1. OUTLINE OF DIAGNOSIS
Judge as NG when there is CAN communication with the TCM and there is a MIL lighting request.

2. ENABLE CONDITION






3. GENERAL DRIVING CYCLE
Always perform the diagnosis continuously.

4. DIAGNOSTIC METHOD

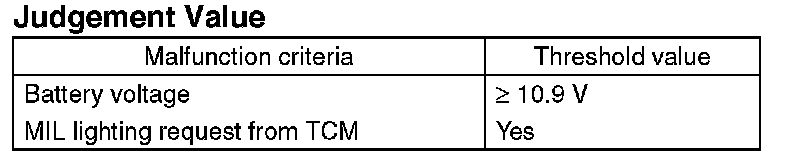

Abnormality Judgement
If the duration of time while the following conditions are met is longer than the time indicated, judge as NG.






Time Needed for Diagnosis: 2500 ms

Malfunction Indicator Light Illumination: Illuminates as soon as a malfunction occurs.

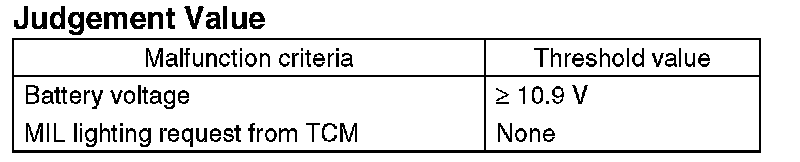

Normality Judgement
If the duration of time while the following conditions are met is longer than the time indicated, judge as NG.






Time Needed for Diagnosis: Less than 1 second
