P0604

DTC P0604 INTERNAL CONTROL MODULE RANDOM ACCESS MEMORY (RAM) ERROR

1. OUTLINE OF DIAGNOSIS
Detect the malfunction of microcomputer (RAM).
When there is a problem in the main CPU normal RAM, or the sub CPU normal RAM, judge as NG. Judge as OK when both are operating properly.
If it is possible to write data to the whole area of RAM in the initial routine, and is possible to read the same data, it is judged as OK, and if not, NG.

2. ENABLE CONDITION






Diagnosis with the initial routine.

3. GENERAL DRIVING CYCLE
Perform the diagnosis as soon as the ignition switch is turned to ON.

4. DIAGNOSTIC METHOD

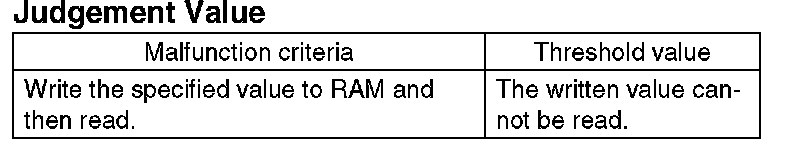

Abnormality Judgement
Judge as NG when the following conditions are established.






Time Needed for Diagnosis: Less than 1 second

Malfunction Indicator Light Illumination: Illuminates as soon as a malfunction occurs.

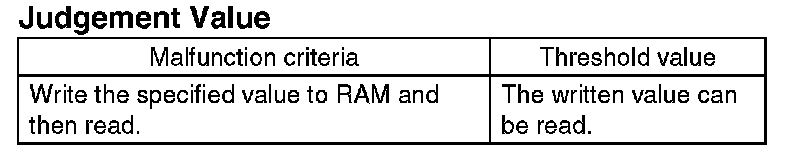

Normality Judgement
Judge as OK and clear the NG if the following conditions are established.






Time Needed for Diagnosis: Less than 1 second
