Excessive Lateral G Sensor Signal

DTC C0073 EXCESSIVE LATERAL G SENSOR SIGNAL
DTC DETECTING CONDITION: Lateral G sensor malfunction
TROUBLE SYMPTOM: VDC does not operate.

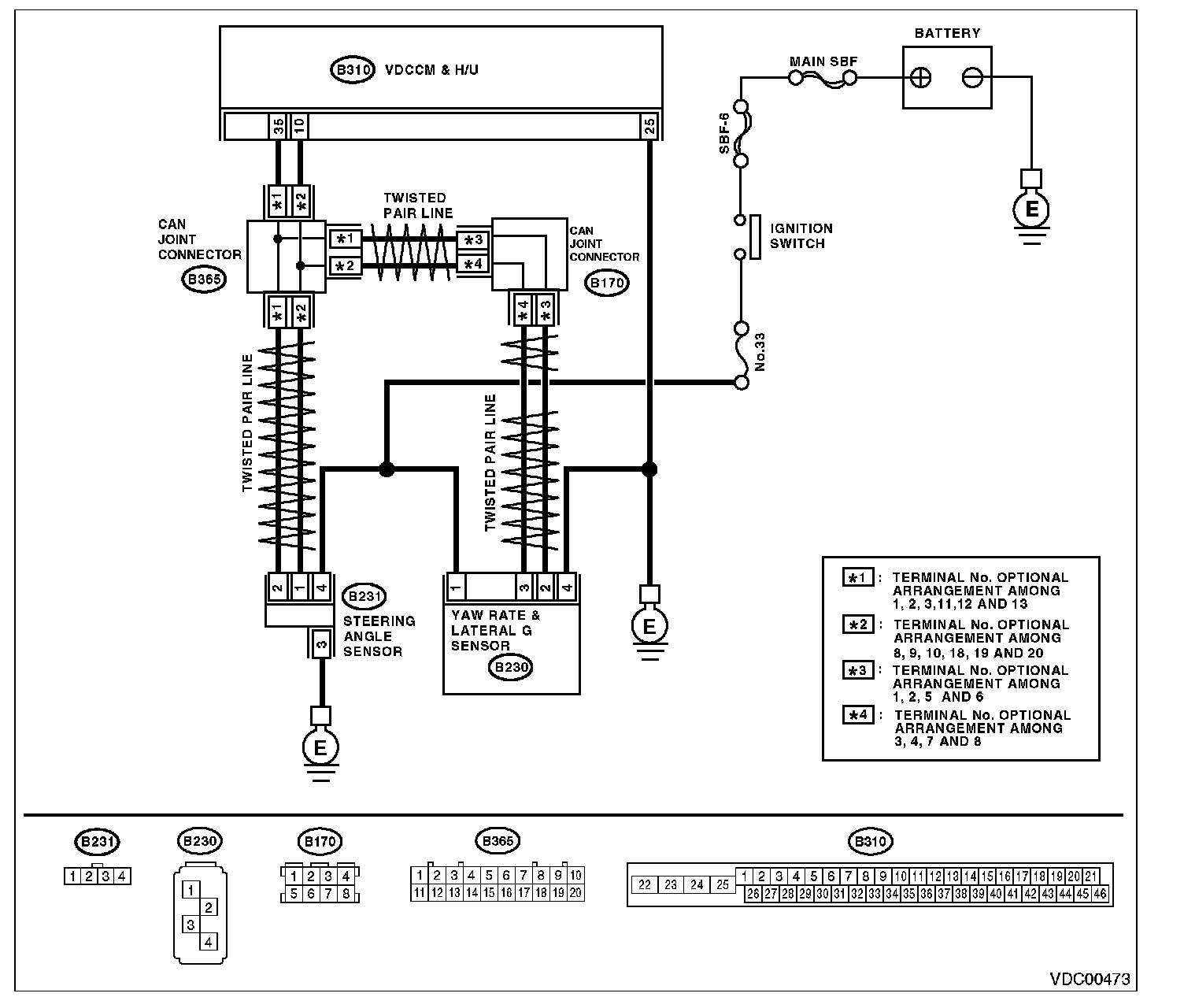

WIRING DIAGRAM:

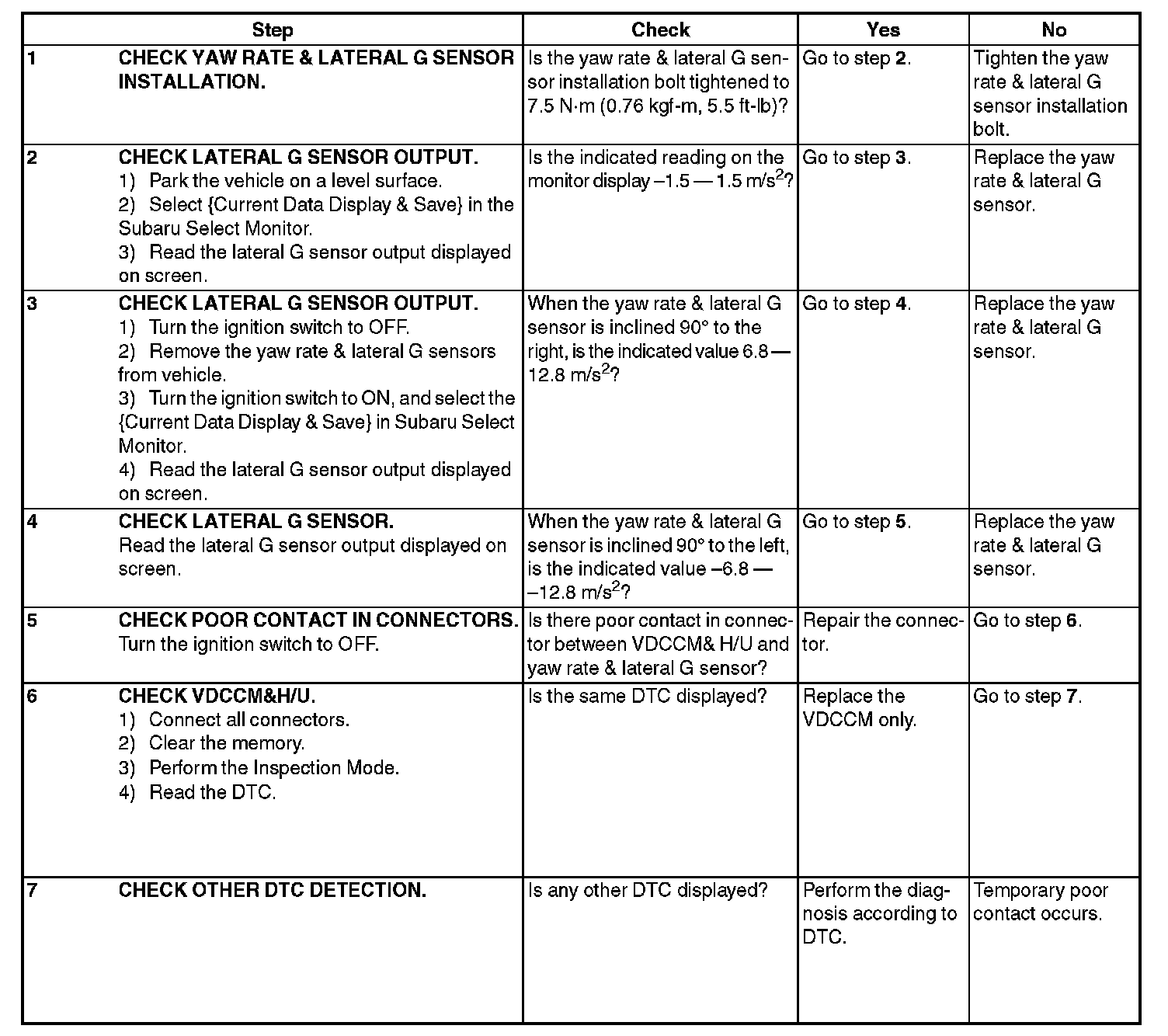

Step 1-Step 7:
