Home >> Subaru >> 2009 >> Legacy F6-3.0L DOHC >> Repair and Diagnosis >> A L L Diagnostic Trouble Codes ( DTC ) >> Testing and Inspection >> C Code Charts >> C0071 >> Steering Angle Sensor Offset Is Too Big

Steering Angle Sensor Offset Is Too Big

DTC C0071 STEERING ANGLE SENSOR OFFSET IS TOO BIG
DTC DETECTING CONDITION: Defective steering angle sensor
TROUBLE SYMPTOM: VDC does not operate.

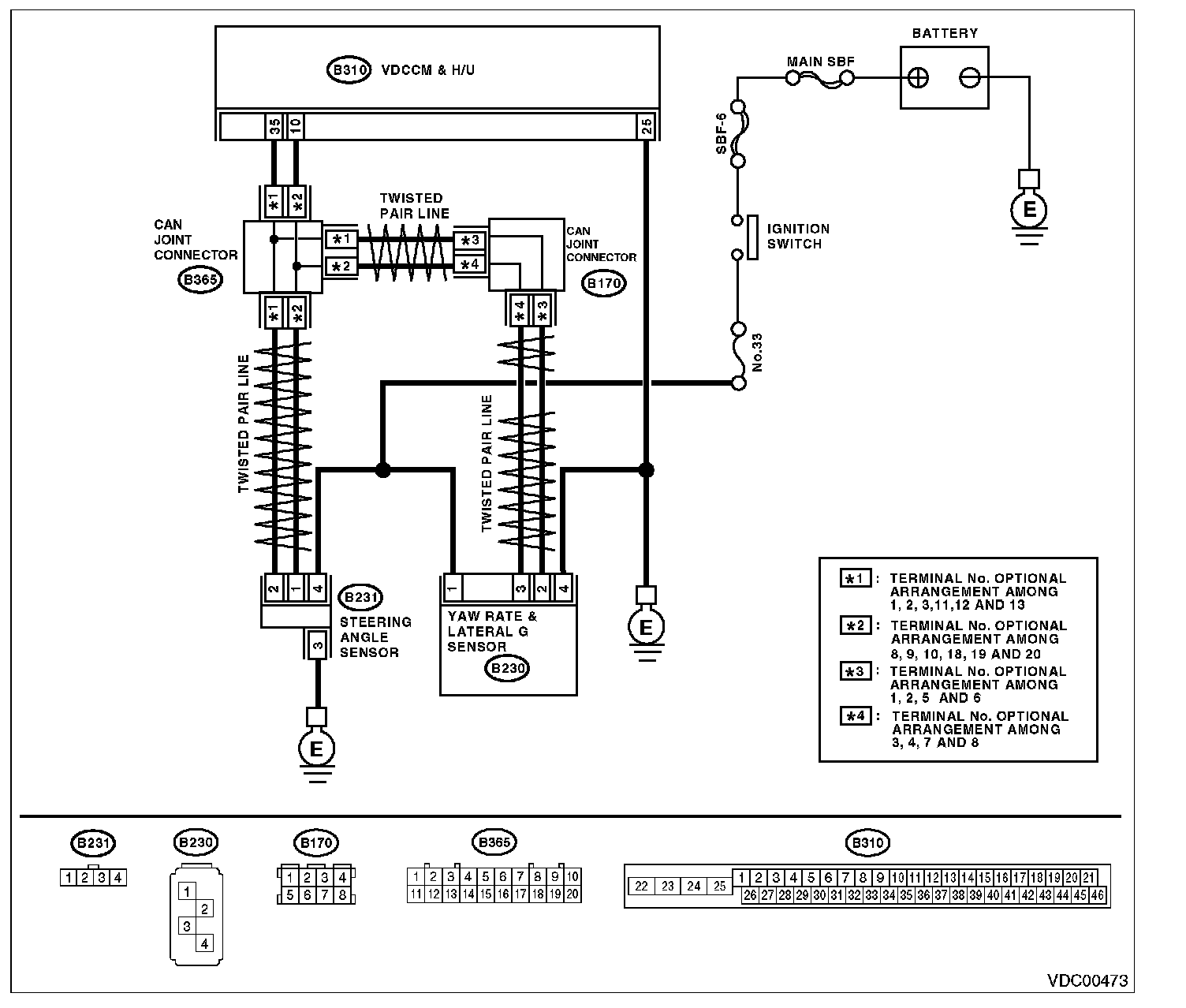

WIRING DIAGRAM:

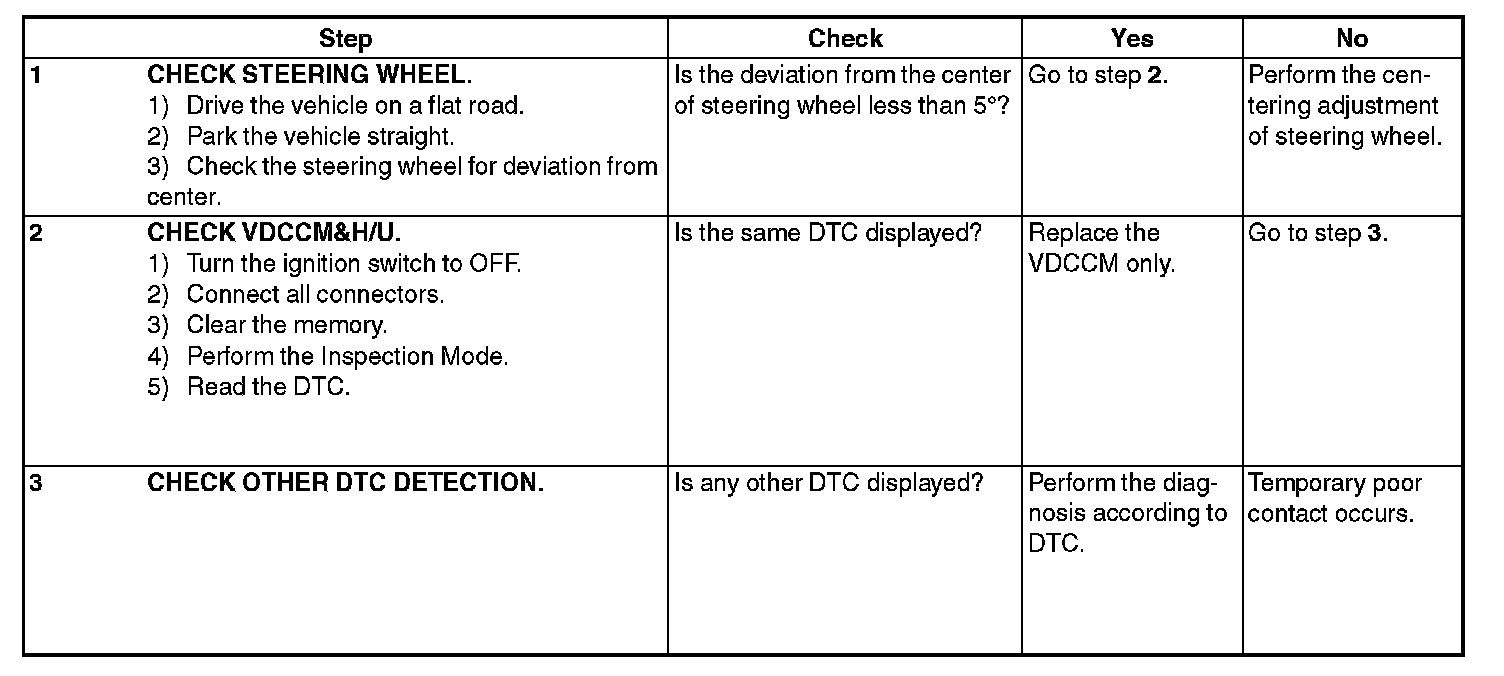

Step 1-Step 3:
