P2431

DTC P2431 SECONDARY AIR INJECTION SYSTEM AIR FLOW/PRESSURE SENSOR CIRCUIT RANGE/PERFORMANCE

1. OUTLINE OF DIAGNOSIS
Detect the malfunction of secondary air pressure sensor output property.


2. ENABLE CONDITION

Enable Condition:

3. GENERAL DRIVING CYCLE
Perform the diagnosis with ignition switch ON.

4. DIAGNOSTIC METHOD

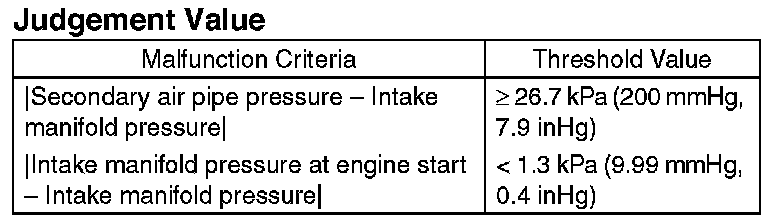

Abnormality Judgement
If the duration of time while the following conditions are met is longer than the time indicated, judge as NG.






Time Needed for Diagnosis: 328 ms

Malfunction Indicator Light Illumination: Illuminates when malfunction occurs in 2 continuous driving cycles.

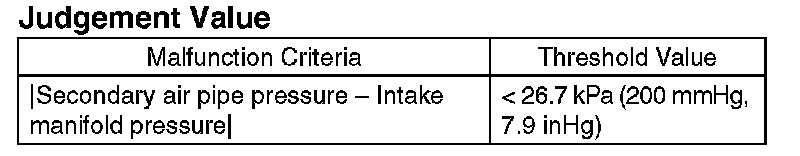

Normality Judgement
Judge as OK and clear the NG if the continuous time while the following conditions are established is more than the predetermined time.






Time Needed for Diagnosis: 262 ms
