P0461

DTC P0461 FUEL LEVEL SENSOR A CIRCUIT RANGE/PERFORMANCE

1. OUTLINE OF DIAGNOSIS
Detect malfunctions of the fuel level sensor output property.

If the fuel level does not vary in a particular driving condition / engine condition where it should, judge as NG.

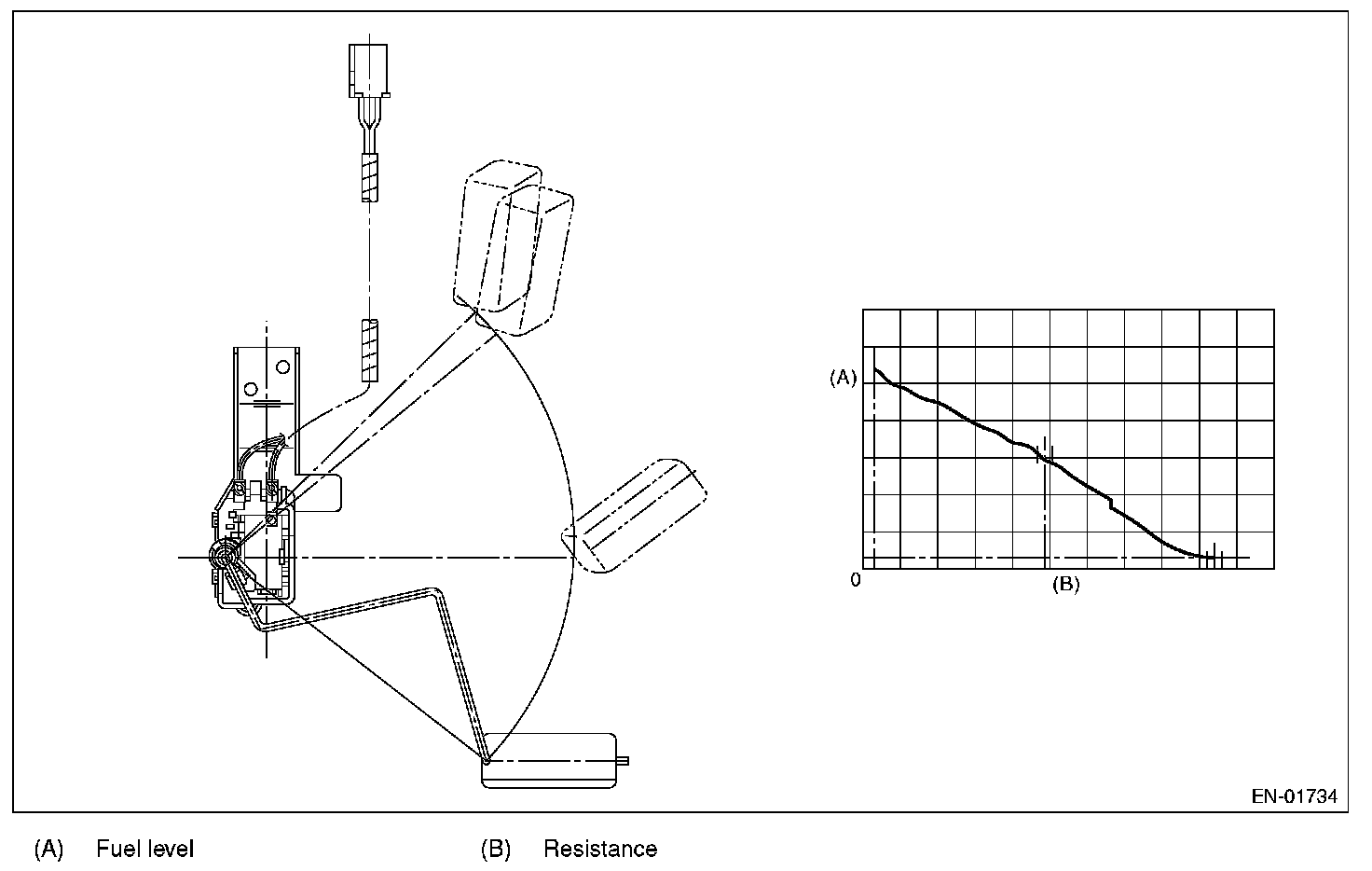

2. COMPONENT DESCRIPTION






3. ENABLE CONDITION

Enable Condition:

4. GENERAL DRIVING CYCLE
Always perform the diagnosis continuously.

5. DIAGNOSTIC METHOD

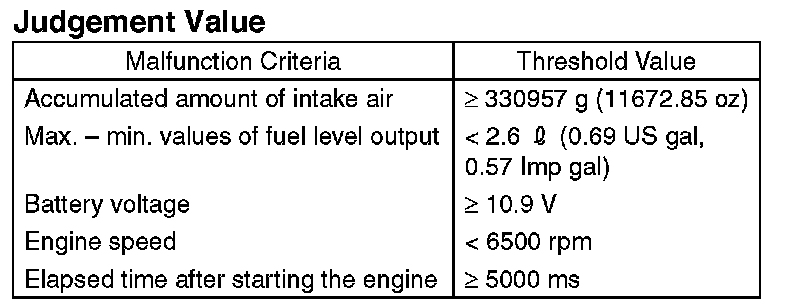

Abnormality Judgement
Judge as NG when the following conditions are established.






Time Needed for Diagnosis: Less than 1 second

Malfunction Indicator Light Illumination: Illuminates when malfunction occurs in 2 continuous driving cycles.

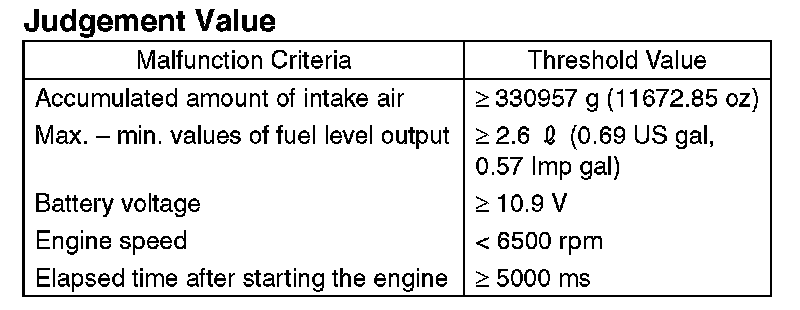

Normality Judgement
Judge as OK and clear the NG if the following conditions are established.






Time Needed for Diagnosis: Less than 1 second
