Electrical Specification
Electrical Specification
Control Module I/O Signal
ELECTRICAL SPECIFICATION

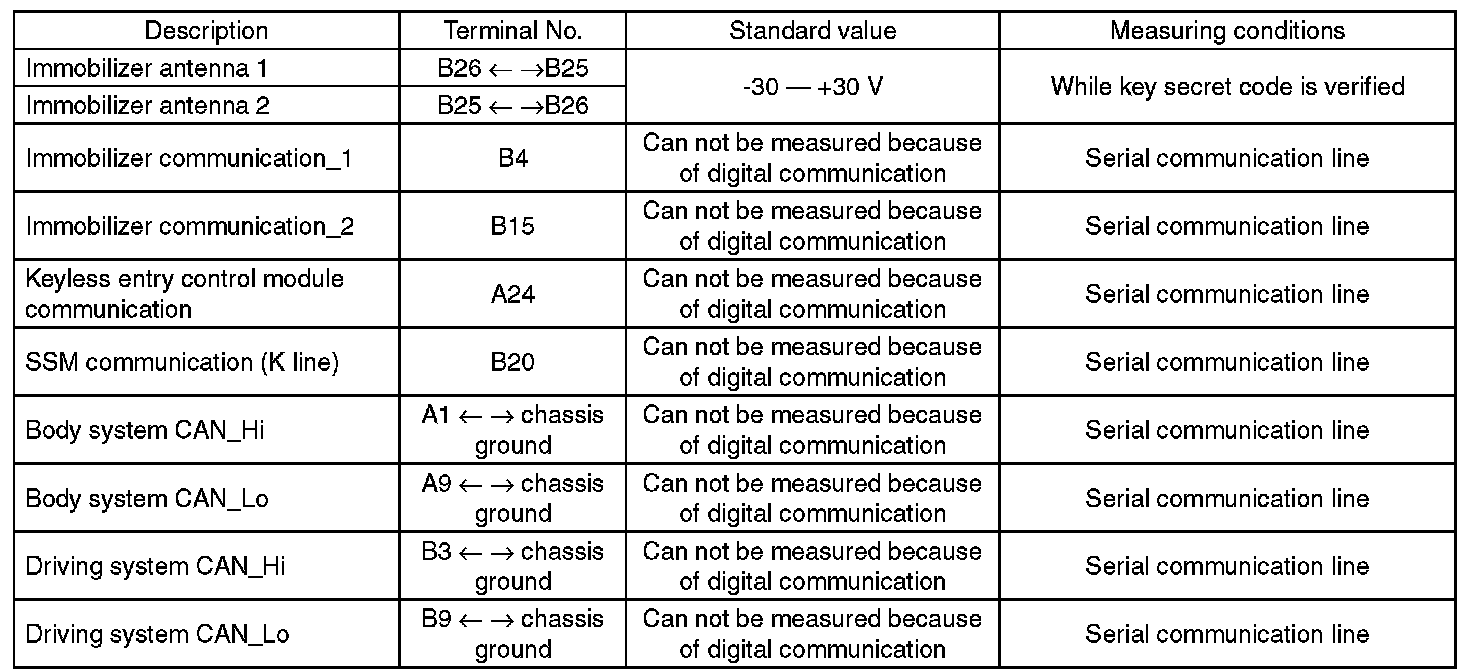

Control Module I/O Signal:

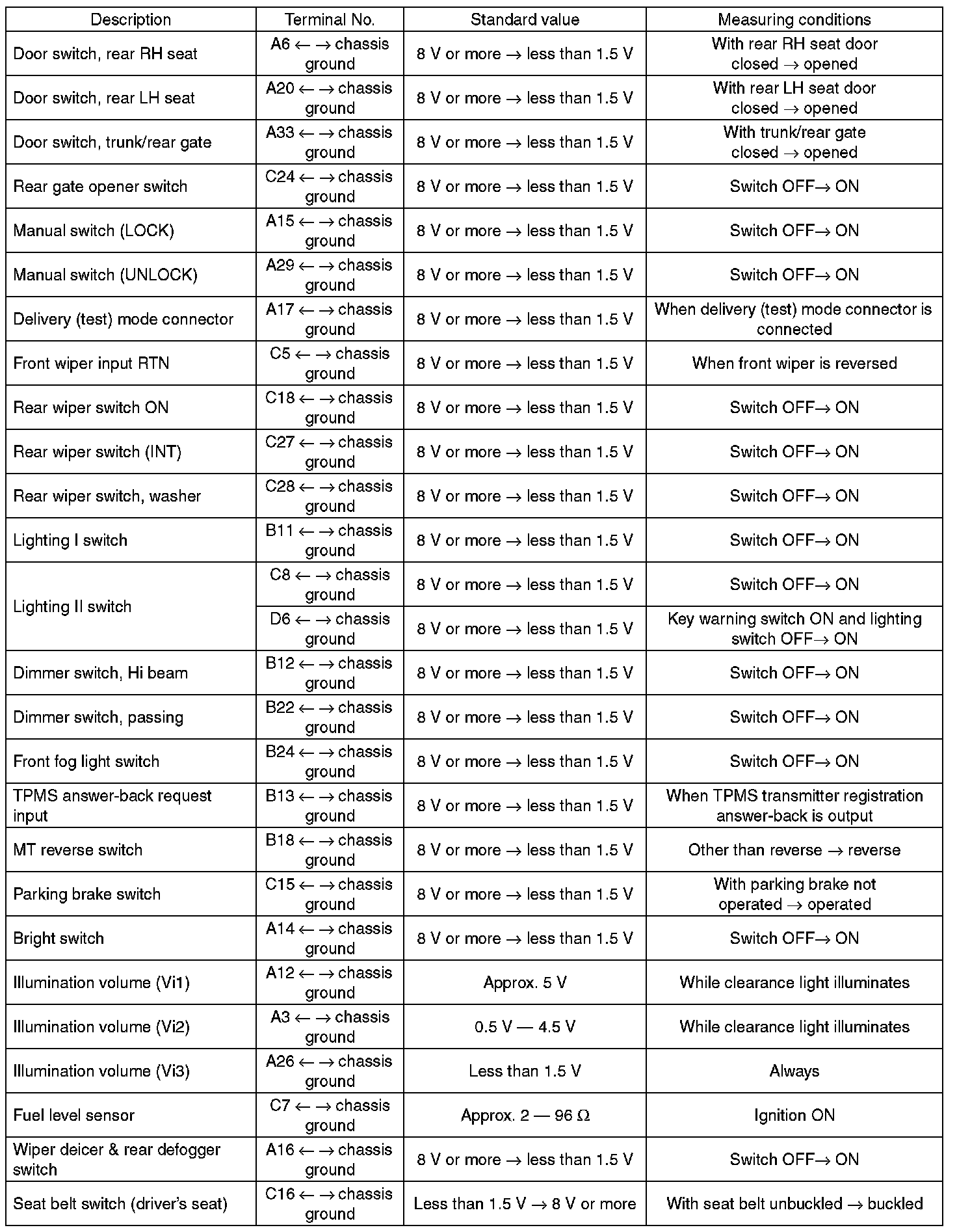

Control Module I/O Signal:

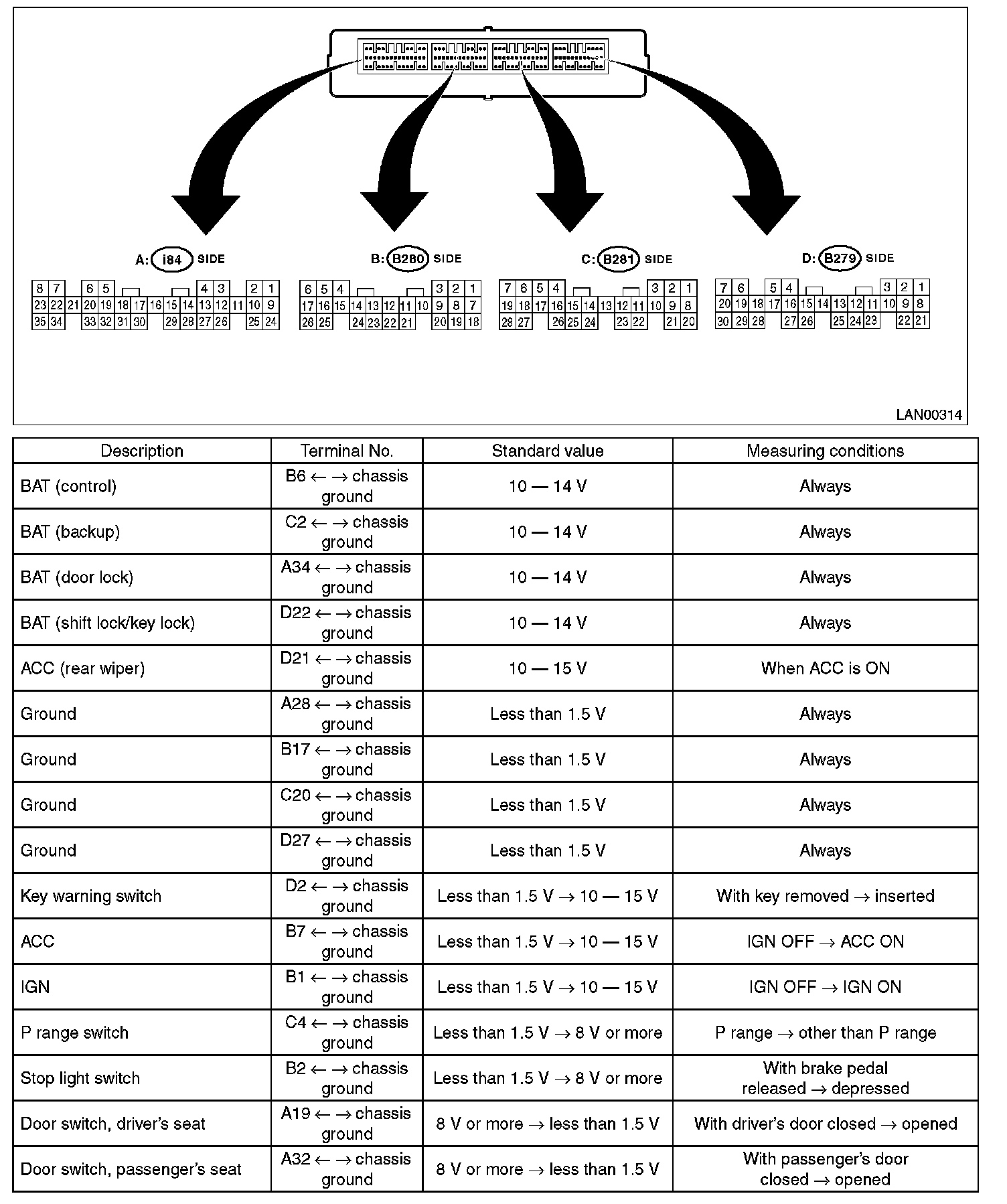

Control Module I/O Signal:

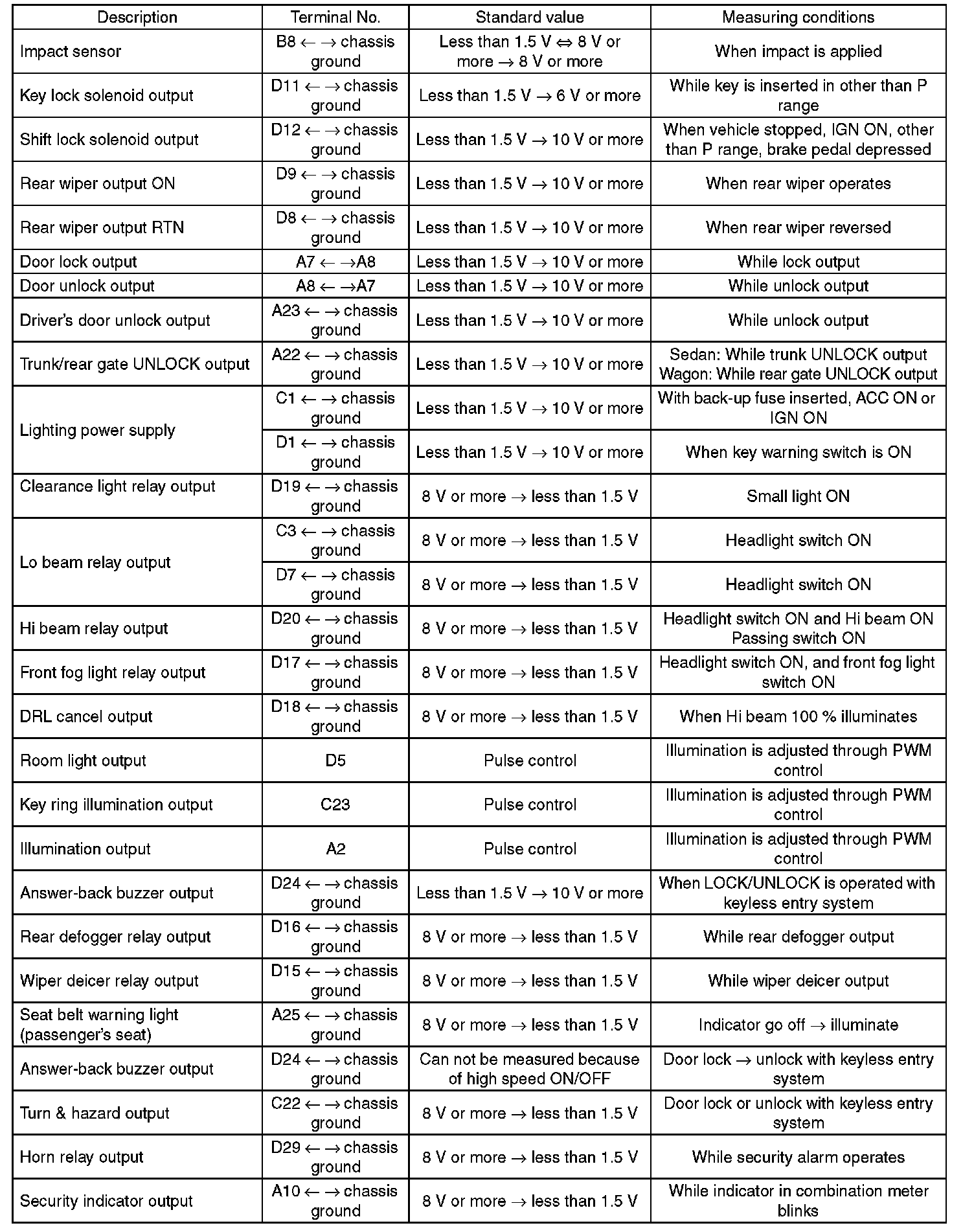

Control Module I/O Signal:
