AWD TRANSFER CLUTCH CONTROL

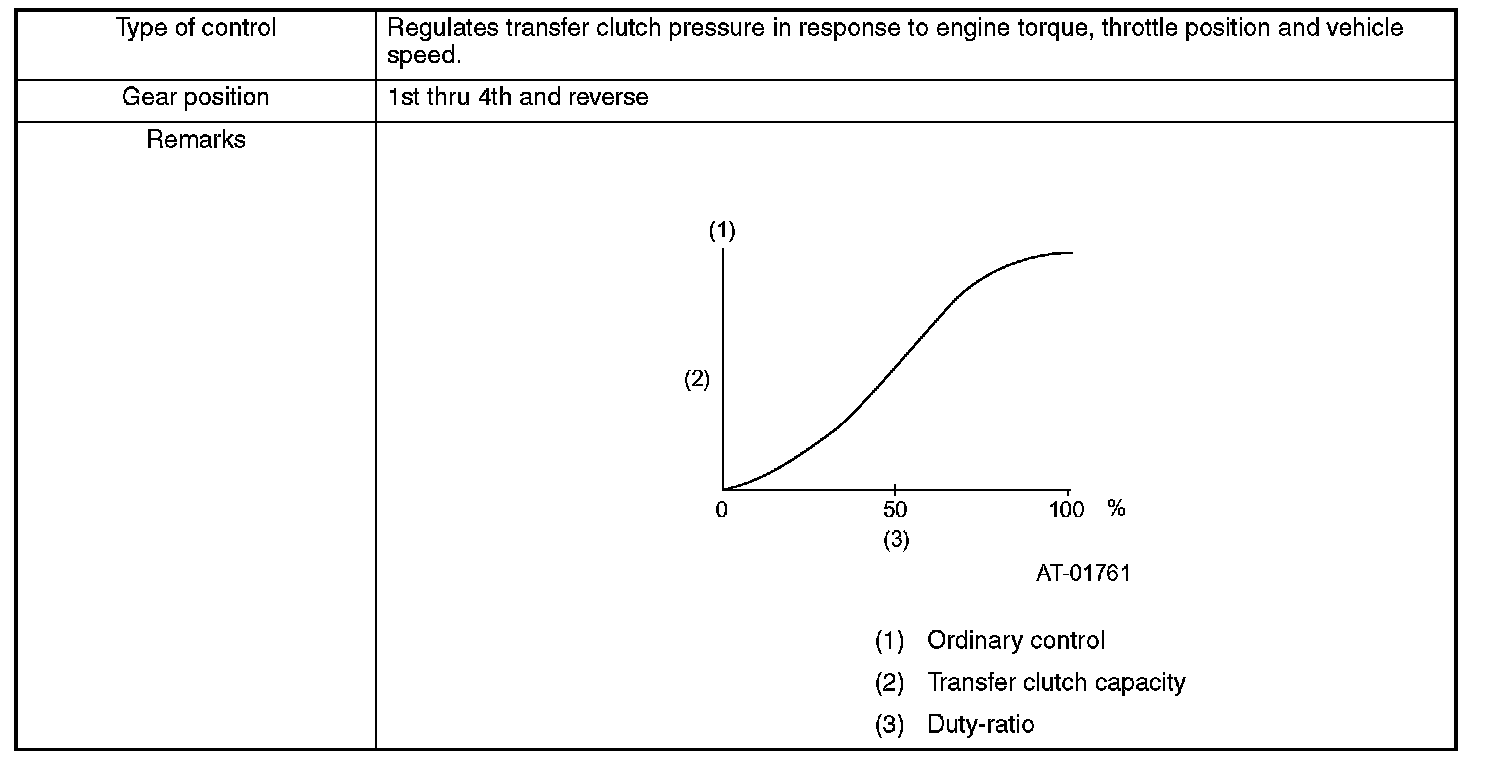

Basic Control:
-
Basic control

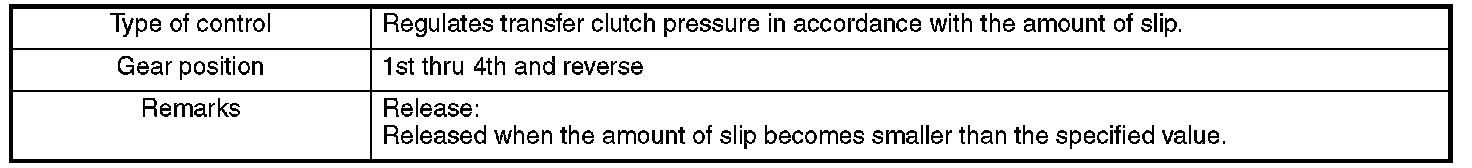

Slip Control:
-
Slip control

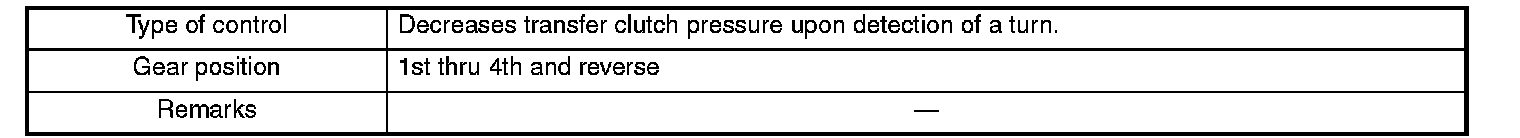

Turning Control:
-
Turning control

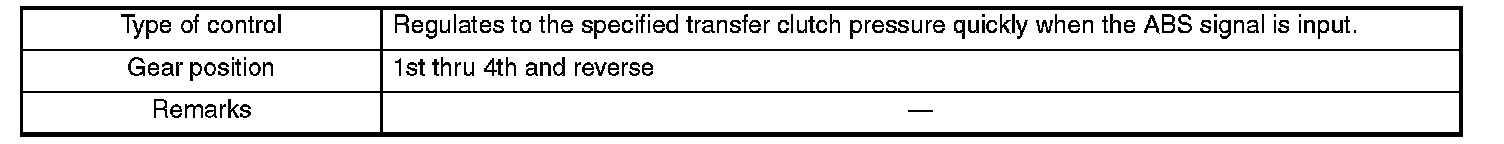

ABS Control:
-
ABS control

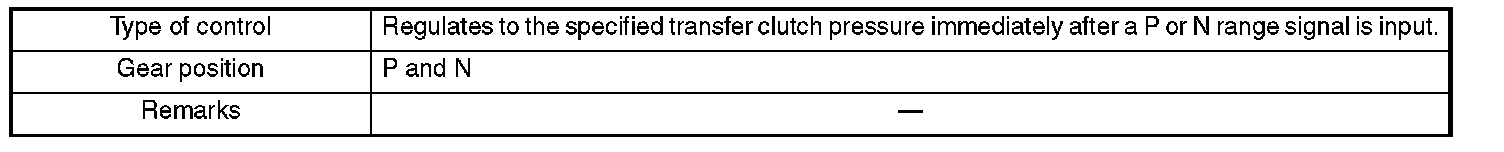

P And N Range Control:
-
P and N range control
