Rear Vehicle Speed Sensor

REAR VEHICLE SPEED SENSOR

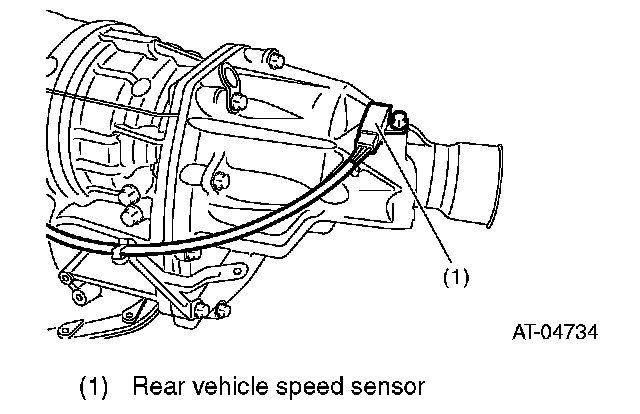

This vehicle speed sensor uses the hall element type sensor and is installed on the outside of extension case. This sensor detects the rear wheel speed based on the circumferential speed of rear drive shaft and sends pulse signal (22 pulses per one turn) to TCM.
