Line Pressure Solenoid

LINE PRESSURE SOLENOID

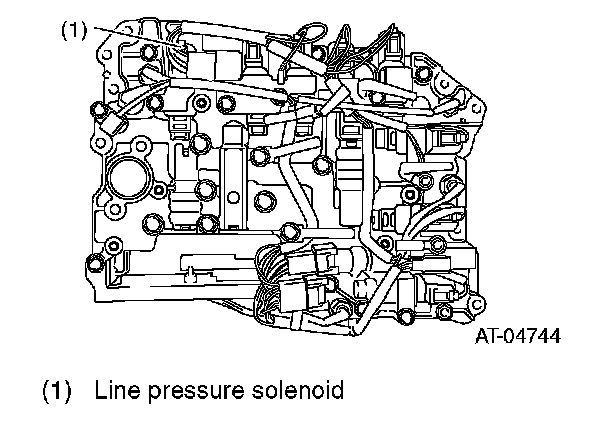

The line pressure solenoid is installed on the control valve and is directly controlled by indicator current from TCM. This controls the pressure modifier valve and accumulator control valve A and adjusts the line pressure to the optimum level in accordance with the driving condition.
