Front Brake Solenoid

FRONT BRAKE SOLENOID

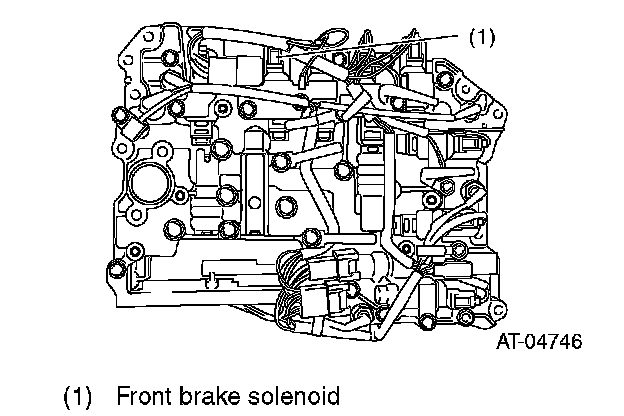

The front brake solenoid is installed on the control valve and is directly controlled by indicator current from TCM. This solenoid is driven when the front brake is operated. The indicator current values are constantly corrected by learning control and realtime feedback, contributing shifting quality improvement and prevention of quality aging.
