Direct Clutch Solenoid

DIRECT CLUTCH SOLENOID

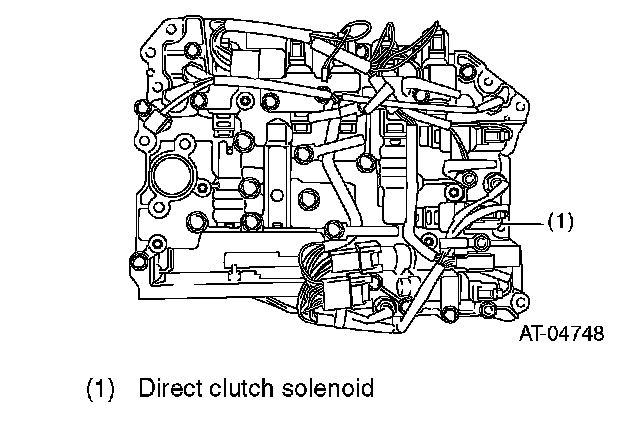

The direct clutch solenoid is installed on the control valve and is directly controlled by indicator current from TCM. This solenoid is driven when the direct clutch is operated. The indicator current values are constantly corrected by learning control and realtime feedback, contributing shifting quality improvement and prevention of quality aging.

Direct clutch pressure can be switched between two types of range pressure with the direct clutch piston switch valve.
