Home >> Subaru >> 2008 >> Outback F6-3.0L DOHC >> Repair and Diagnosis >> Transmission and Drivetrain >> Transfer Case >> Description and Operation >> Automatic Transmission (5 AT) >> Electro-Hydraulic Control System >> Control Items

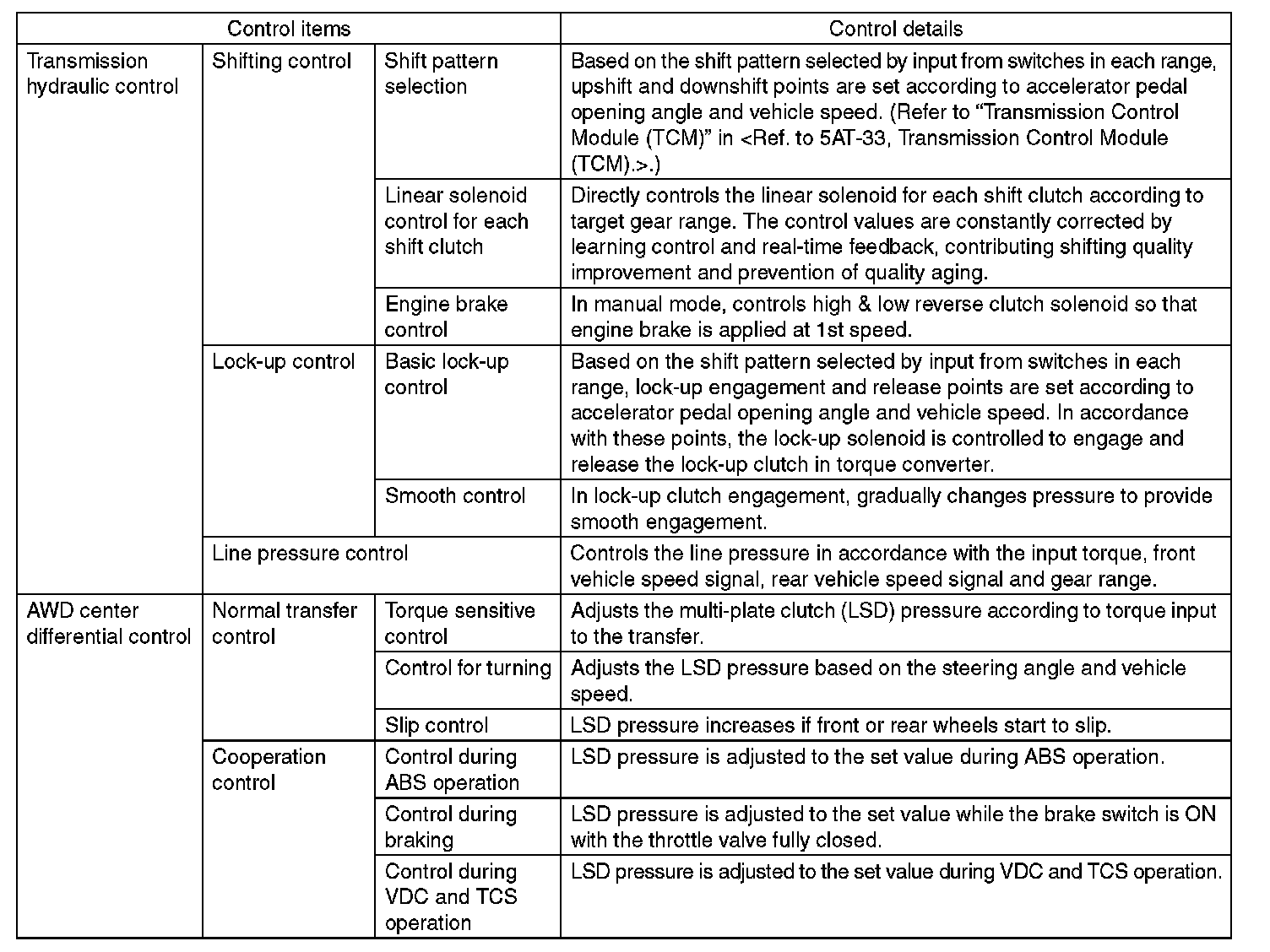

Control Items
