Home >> Subaru >> 2008 >> Outback F6-3.0L DOHC >> Repair and Diagnosis >> Transmission and Drivetrain >> Flywheel >> Description and Operation >> Cross Sectional View and Torque Flow

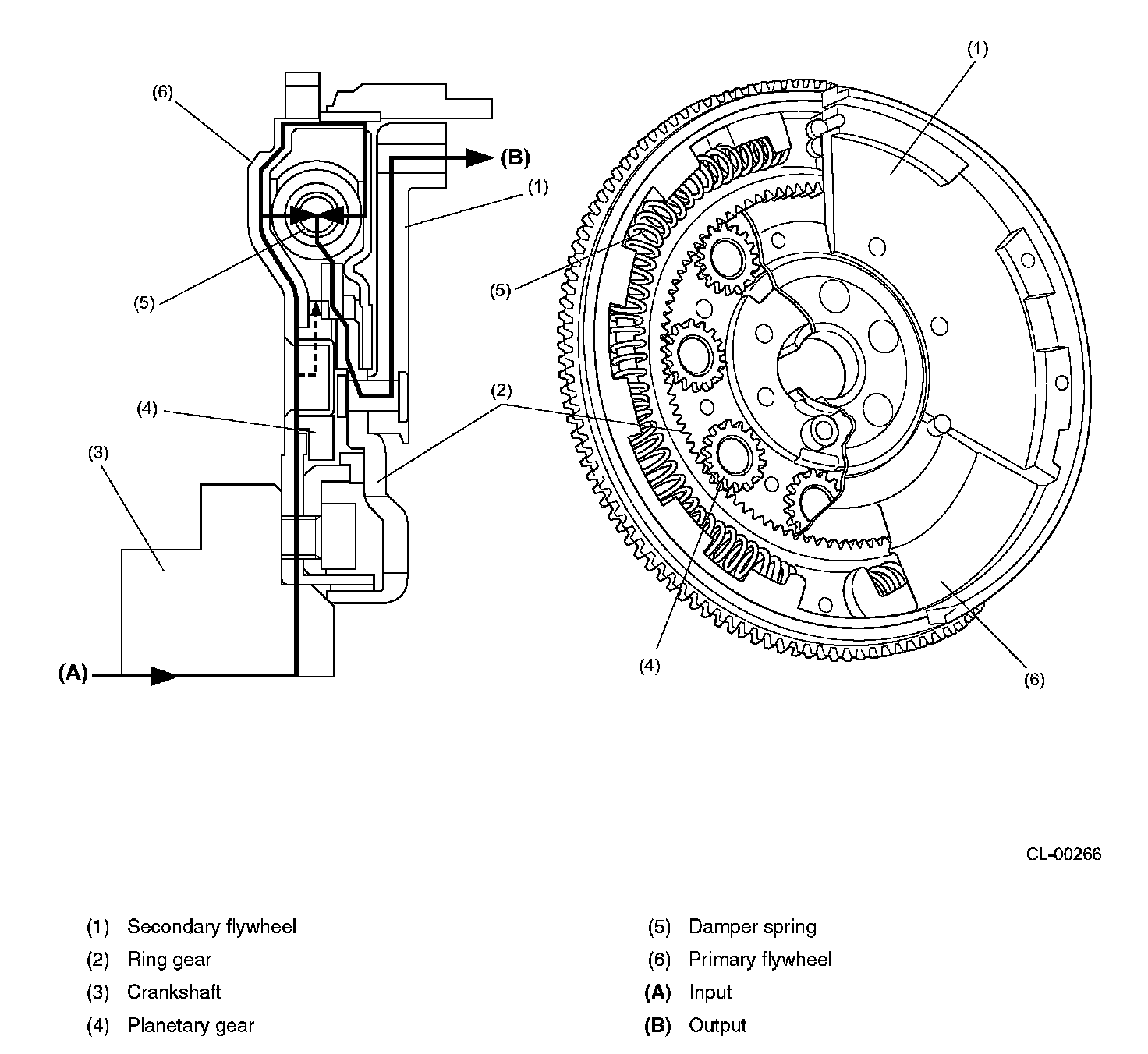

Cross Sectional View and Torque Flow

Turbo Models:
