ADJUSTING PARTS
^

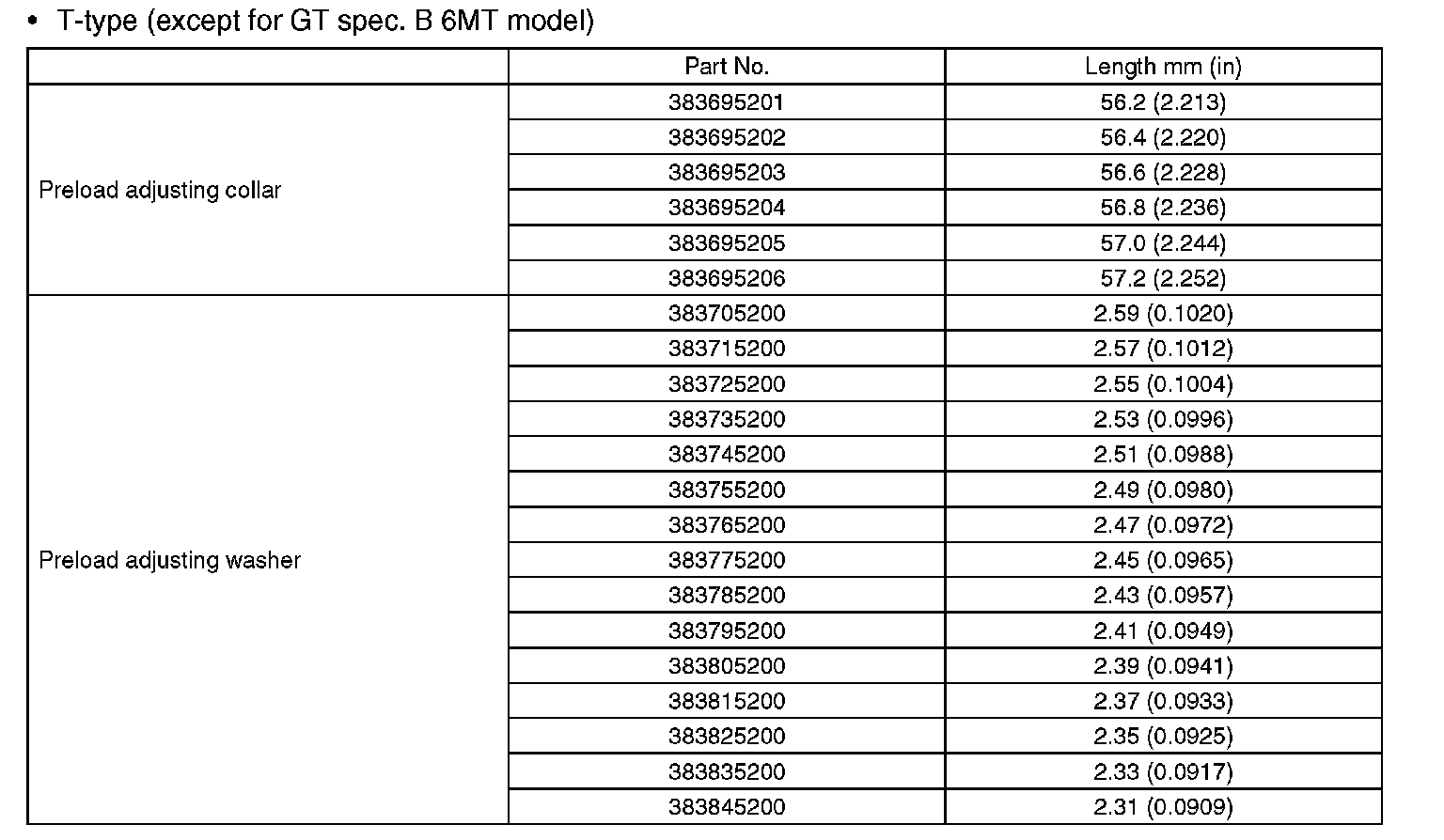

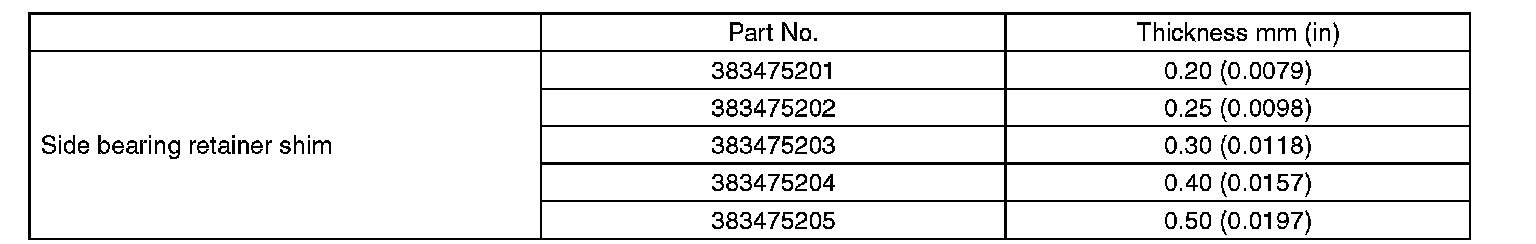

T-type (except for GT spec. B 6MT model)
^

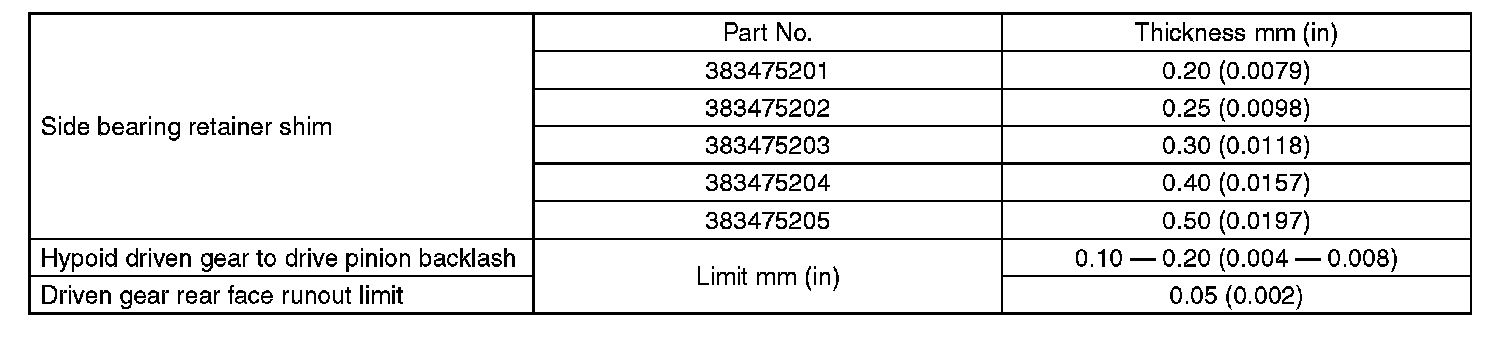

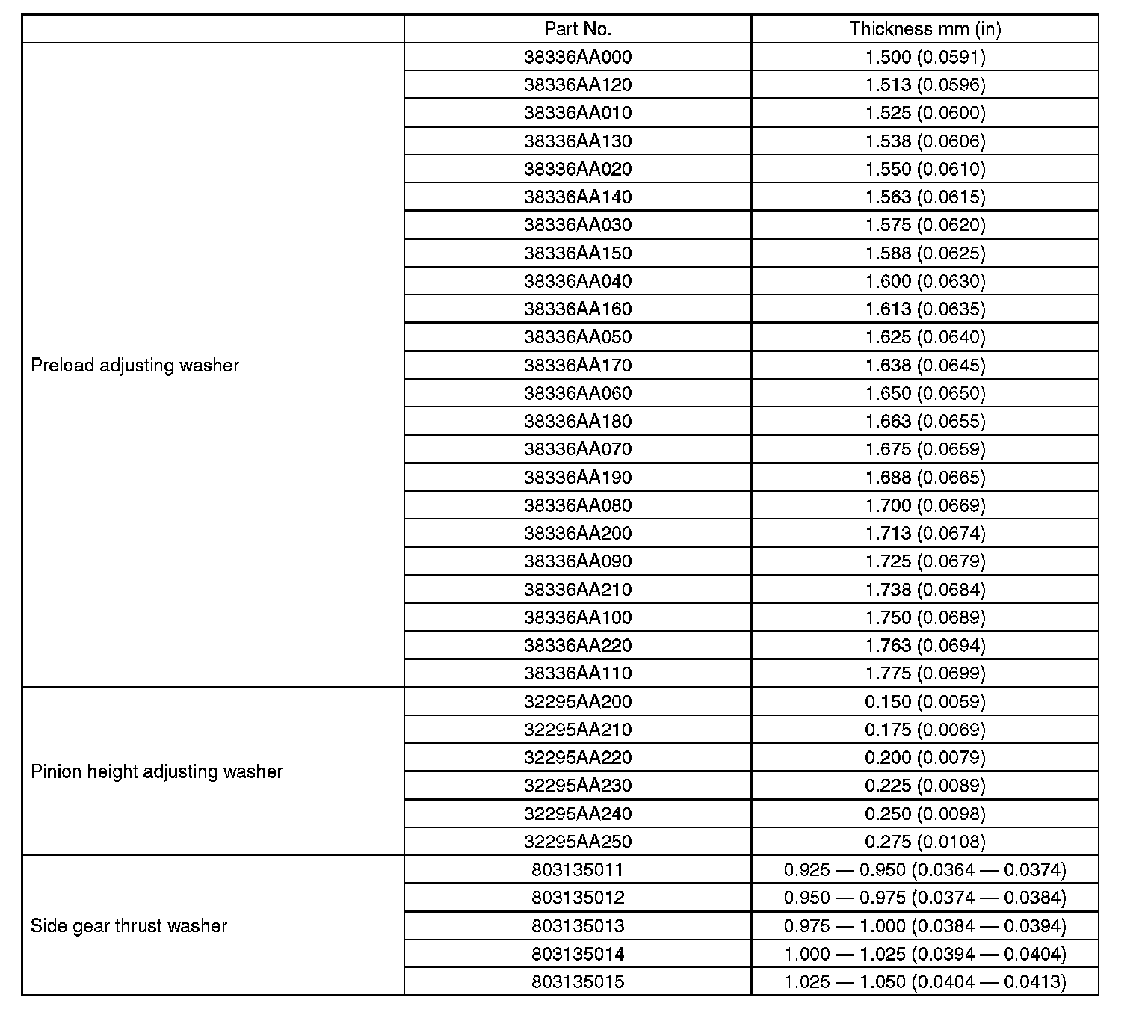

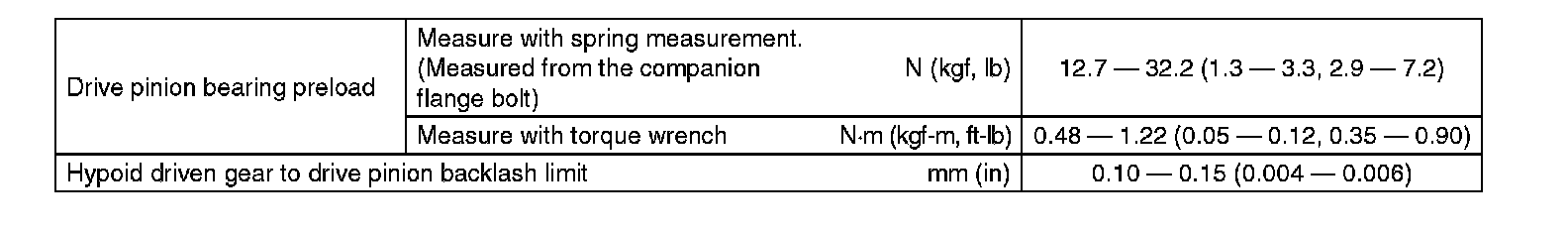

T-type (GT spec. B 6MT model)
^

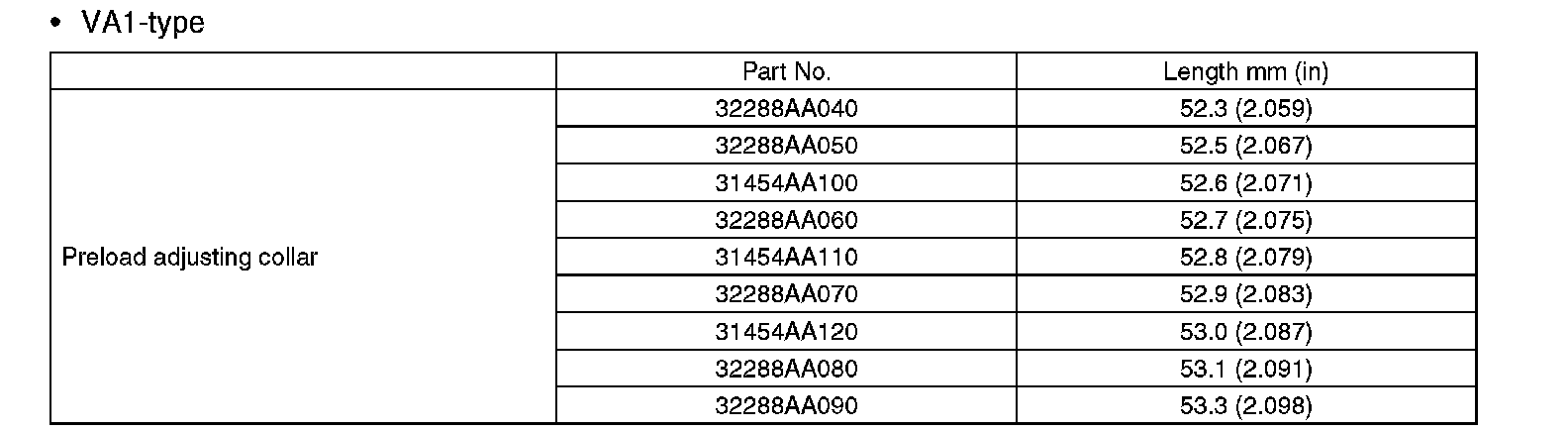

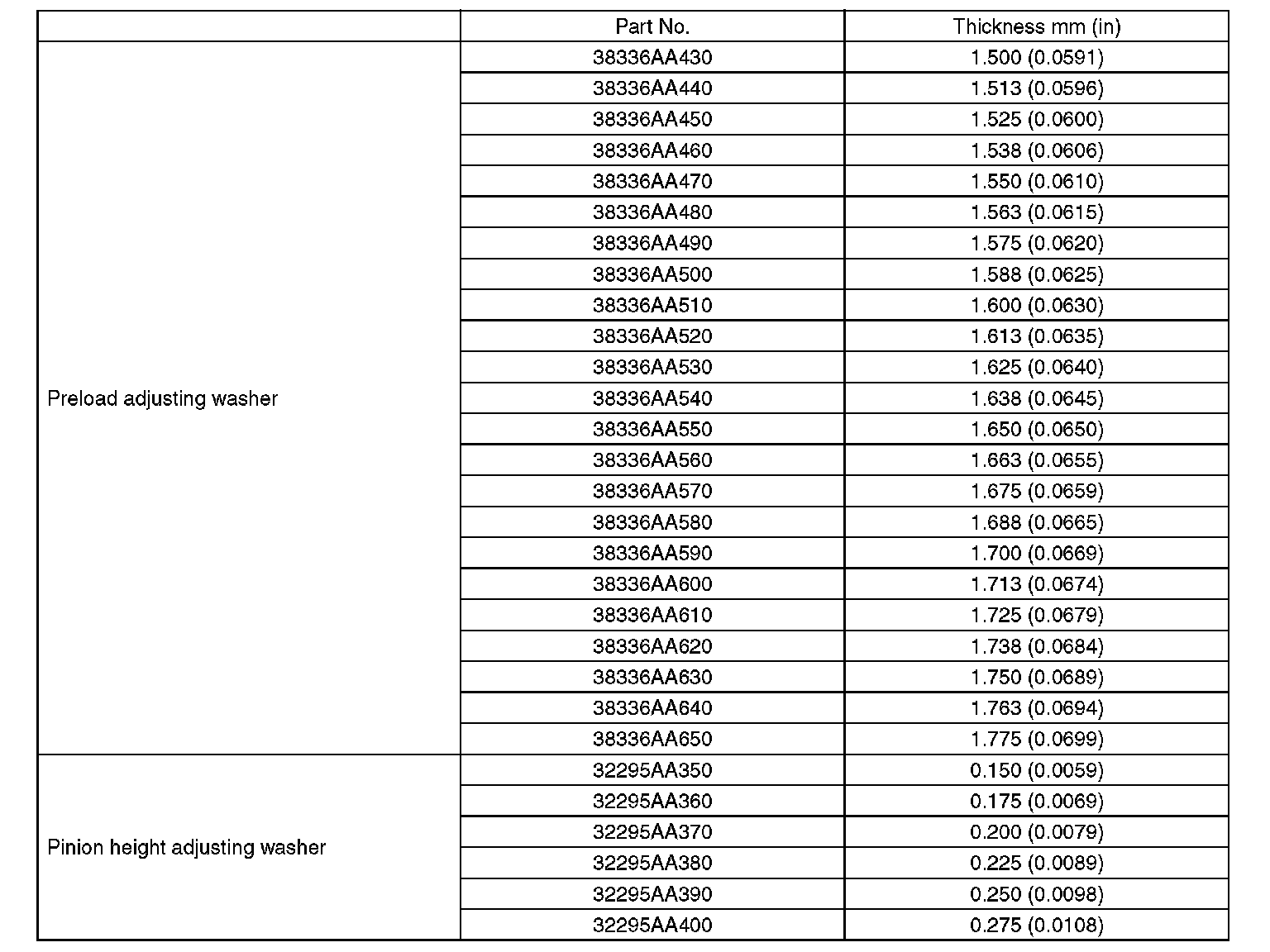

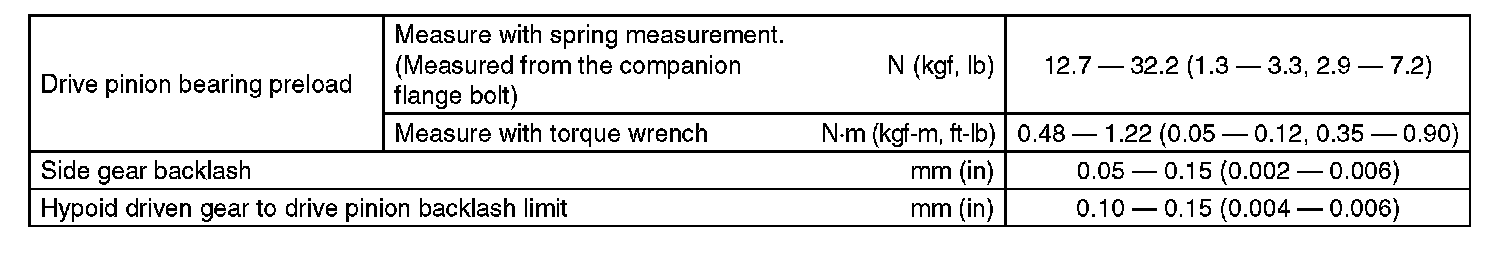

VA1-type
^

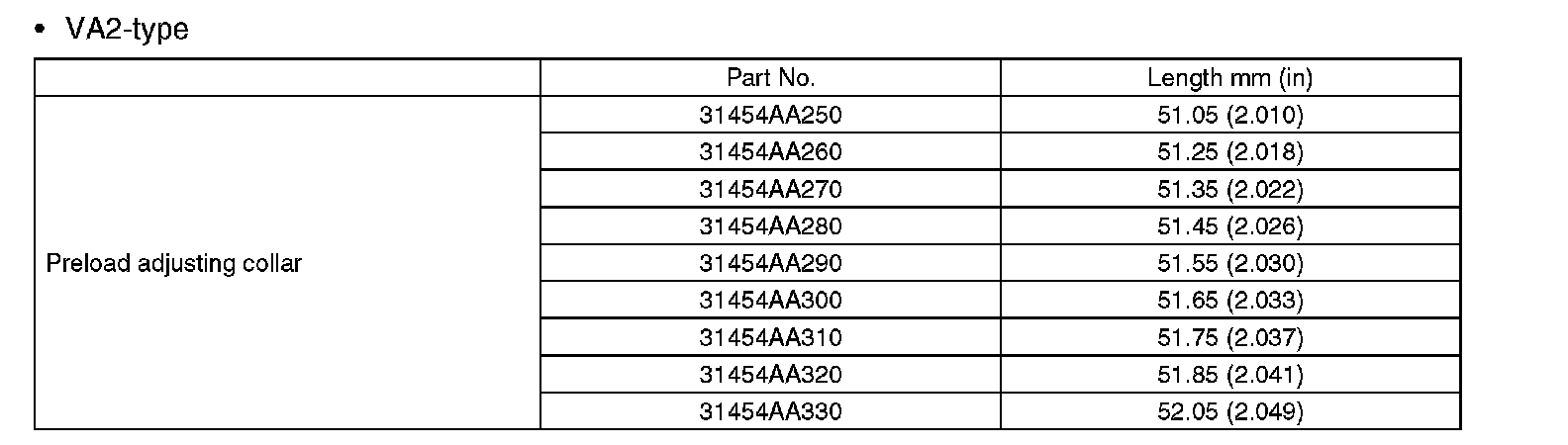

VA2-type
