Front Vehicle Speed Sensor
Front Vehicle Speed SensorREMOVAL
1) Remove the transmission assembly from vehicle body.

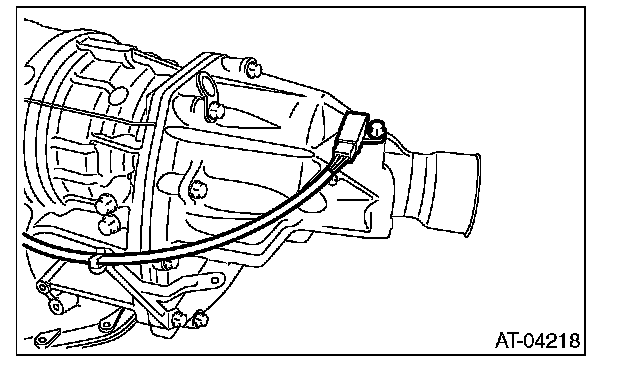

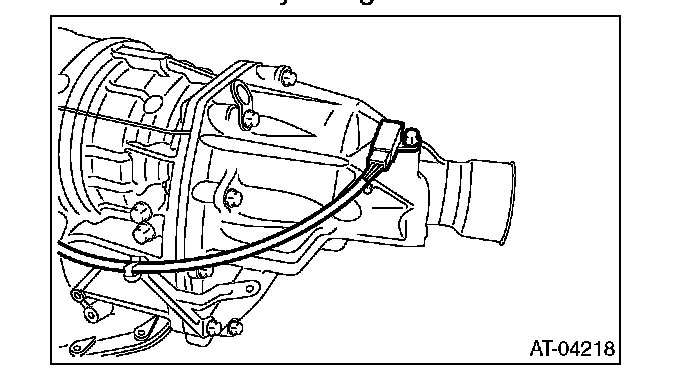

2) Disconnect the rear vehicle speed sensor connector.
NOTE: Secure the harness of the transmission harness to the transmission body using wire etc.

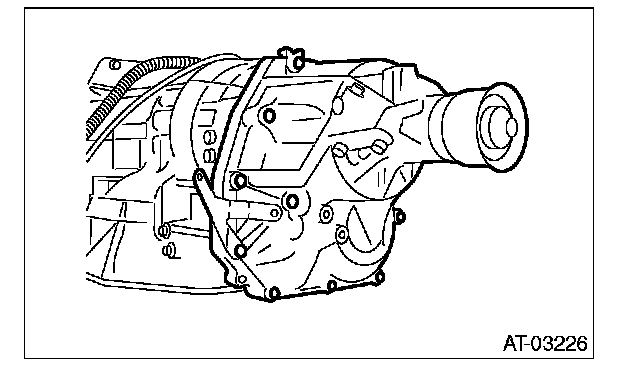

3) Remove the extension case.
4) Remove the center differential carrier.
5) Lay along the transmission case, and then remove the oil pan.
6) Remove the old gasket on the oil pan and transmission case completely.

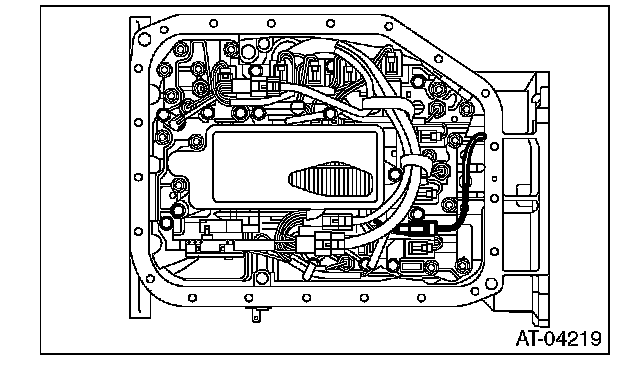

7) Disconnect the front vehicle speed sensor connector.

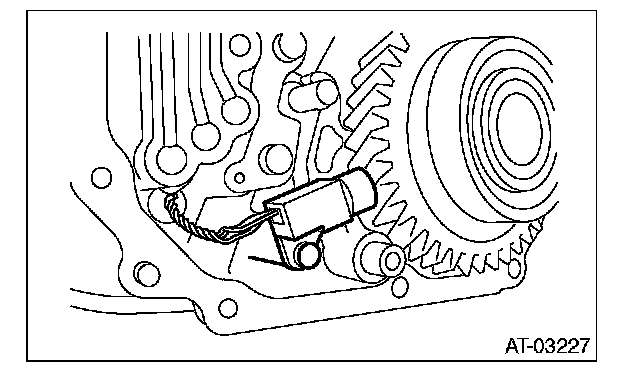

8) Remove the front vehicle speed sensor securing bolt.
9) Remove the front vehicle speed sensor through the hole of AT transmission main case.
INSTALLATION

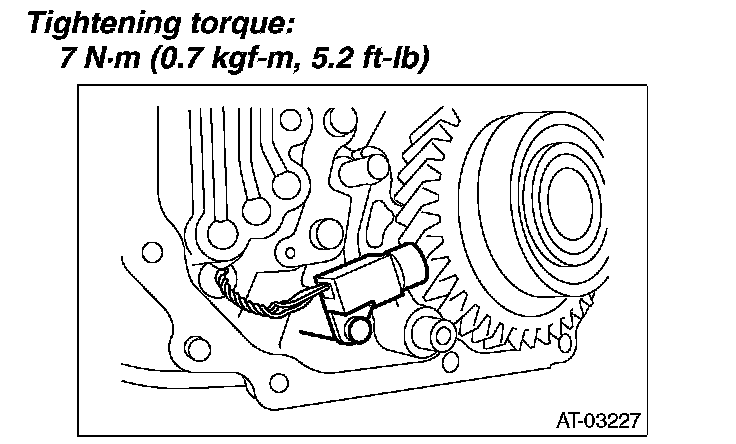

1) Install the front vehicle speed sensor.

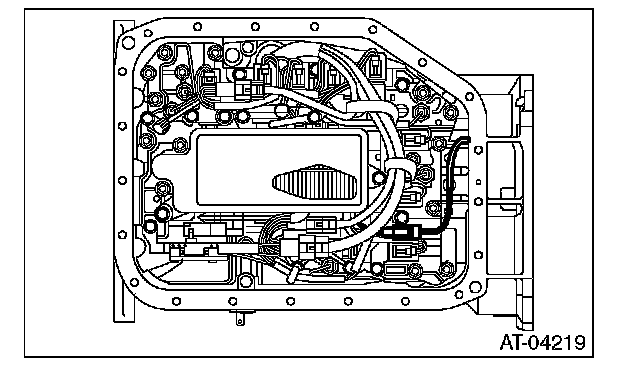

2) Connect the front vehicle speed sensor connector.

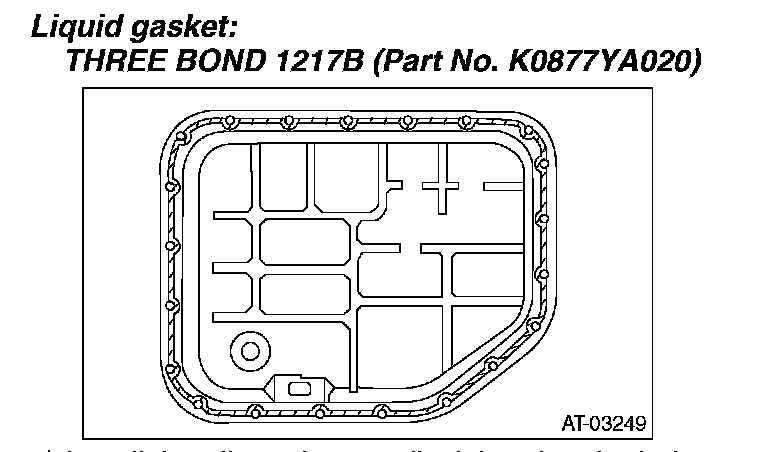

3) Apply proper amount of liquid gasket to the entire oil pan mating surface.
4) Install the oil pan by equally tightening the bolts.
Tightening torque: 5 N-m (0.5 kgf-m, 3.7 ft-lb)
5) Install the center differential carrier.

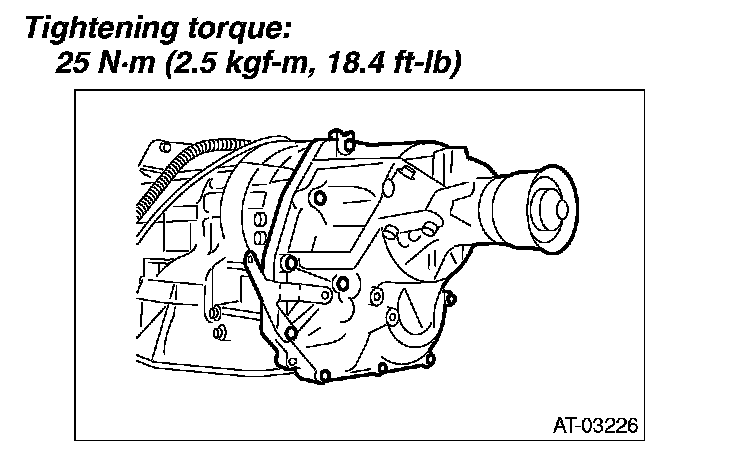

6) Install the extension case.
7) Connect the rear vehicle speed sensor connector.
8) Install the transmission assembly to the vehicle.
9) Pour ATF from the oil charge pipe.
10) Check the level and leaks of ATF.
