Extension Case Oil Seal
REPLACEMENT1) Lift up the vehicle.
2) Clean the transmission exterior.

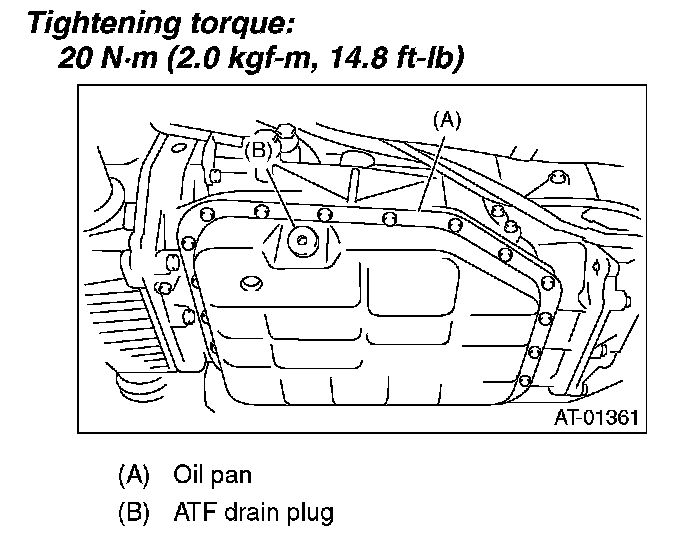

3) Remove the ATF drain plug to drain ATF.
CAUTION: Immediately after the vehicle has been running or after idling for a long time, the ATF will be hot. Be careful not to burn yourself.
4) Tighten the ATF drain plug.
NOTE: Use a new gasket.
5) Remove the rear exhaust pipe and muffler. (Turbo model)
6) Remove the rear exhaust pipe and muffler. (Non-turbo model)

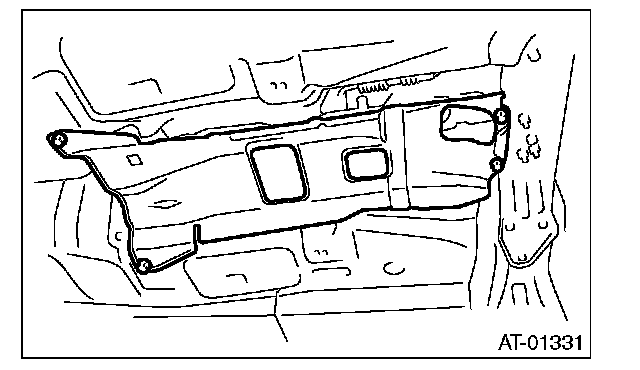

7) Remove the heat shield cover.
8) Remove the propeller shaft.
9) Using the ST, remove the oil seal.
ST 398527700 PULLER ASSY
10) Using the ST, install the oil seal.
ST 498057300 INSTALLER
11) Install the propeller shaft.
12) Install the heat shield cover.
13) Install the rear exhaust pipe and muffler. (Turbo model)
14) Install the rear exhaust pipe and muffler. (Non-turbo model)
15) Pour ATF from the oil charge pipe.
Specified fluid: SUBARU ATF
Recommended fluid: IDEMITSU ATF HP Castrol Transmax J
NOTE: Use of the recommended fluid is permitted only in regions where the specified fluid is not available.
Capacity: Fill with the same amount of ATF as drained.
16) Check the level and leaks of the ATF.
