Oil Charge Pipe
Oil Charge PipeREMOVAL
1) Remove the intercooler. (Turbo model)
2) Remove the air intake chamber. (Non-turbo model)

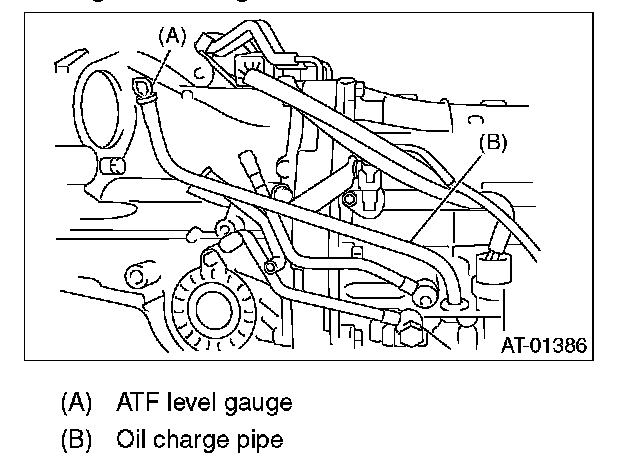

3) Remove the oil charge pipe, and then remove the O-ring from flange side.
INSTALLATION

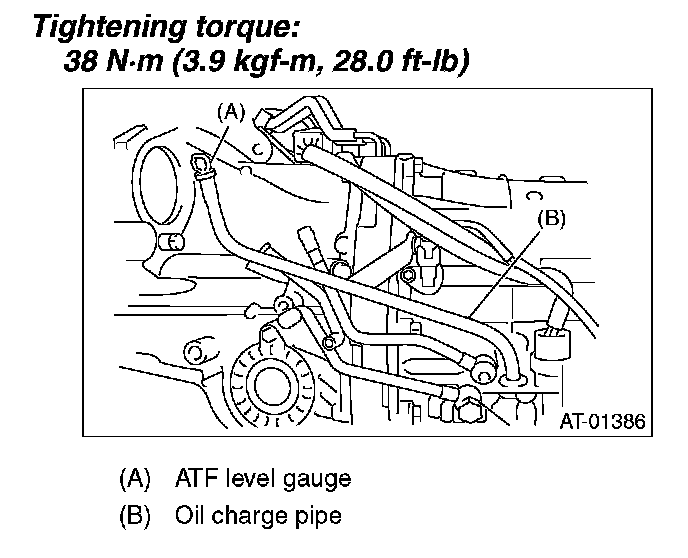

1) Install the oil charge pipe with a new O-ring.
NOTE: Use new bolts.
2) Install the intercooler. (Turbo model)
3) Install the air intake chamber. (Non-turbo model)
INSPECTION
Make sure the oil charge pipe is not deformed or damaged.
