STRUCTURE

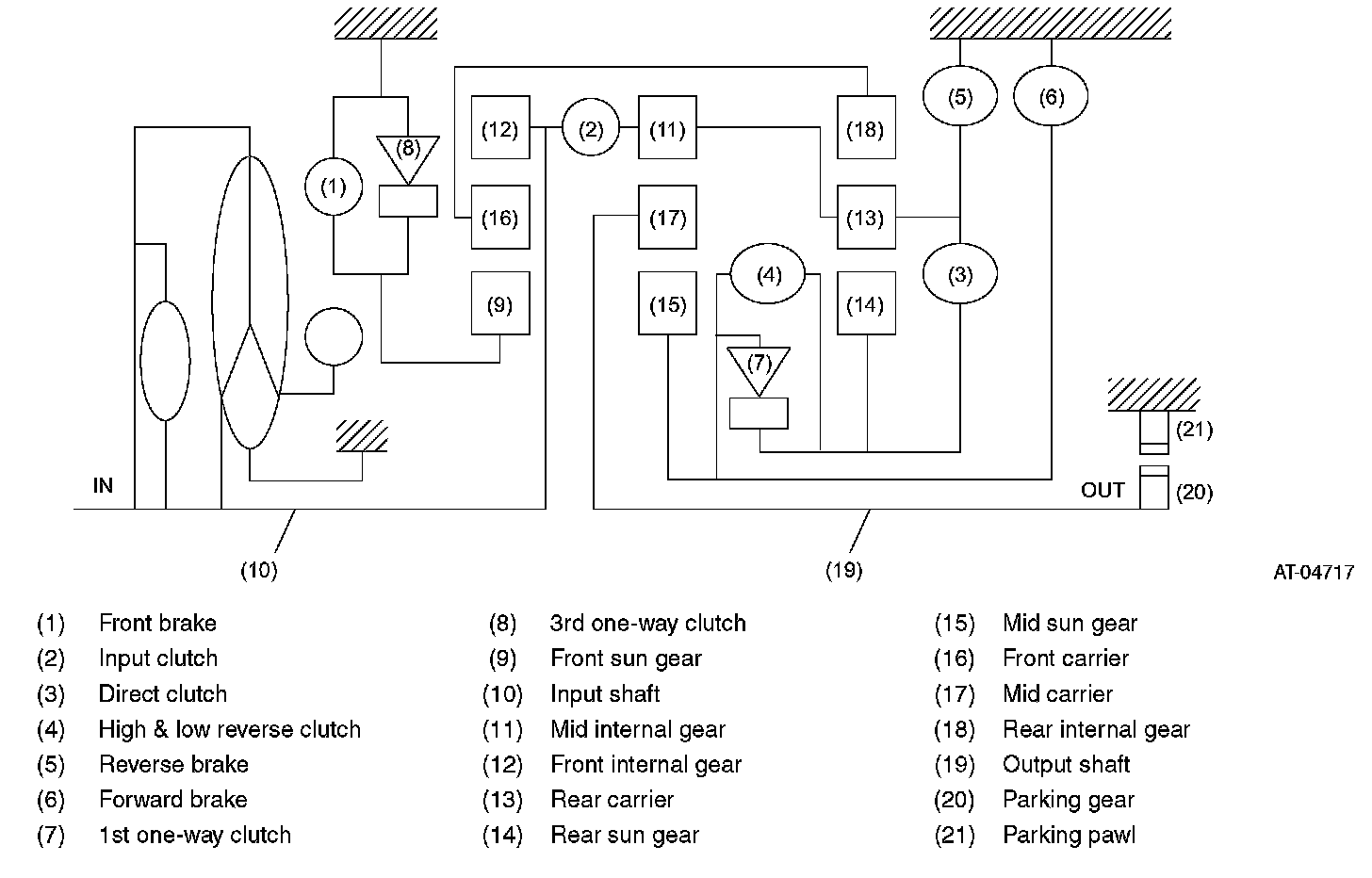

The gear train consists of three sets of planetary gears, three sets of multi-plate clutches, three sets of multiplate brakes and two sets of one-way clutches.
