Front Suspension

The content of this article reflects Manual update # 05-43-09 dated 03/24/09

The purpose of this bulletin is to inform you that the front strut hardware has been changed along with the torque specification of the self-locking nut.



The new hardware was used in production as follows.


Forester VIN# 9*700163 December, 2007

Impreza Sedan VIN# 8*522466 December, 2007

Impreza Wagon VIN# 8*822908 December, 2007

Impreza STI VIN# 8*8822909 December, 2007

Legacy/Outback Sedan VIN# 8*224733 February, 2008

Legacy/Outback Wagon VIN# 8*357983 February, 2008

Tribeca VIN# 84419152 February, 2008



Parts information and torque specification.

Forester/Impreza new self lock nut* part# 902380008 155N-m (15.8 kgf-m, 114 ft-lb)

Forester/ Impreza Bolts Part# s 901660038 901000334 must be used.

Legacy/Outback new self lock nut* part# 902330007 155N-m (15.8 kgf-m, 114 ft-lb)

Tribeca new self lock nut* part# 9022330007 155N-m (15.8 kgf-m, 114 ft-lb)

* NOTE The self lock nut is one time use only.




Front Strut

REMOVAL
1) Lift up the vehicle, and then remove the front wheels.
2) Place an alignment mark on the camber adjusting bolt and strut.

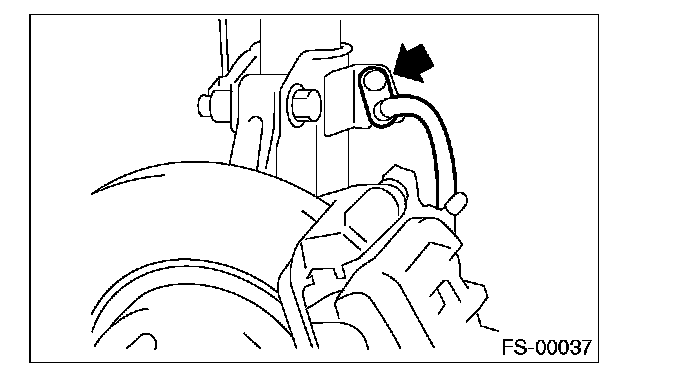

3) Remove the bolt securing the brake hose from the strut.

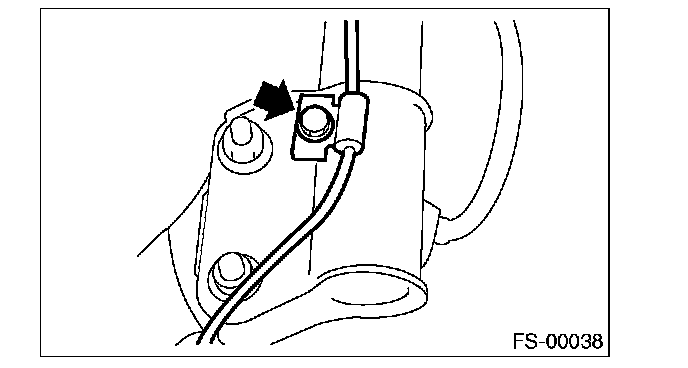

4) Remove the bolt securing the ABS wheel speed sensor harness.





5) Remove the two bolts securing the housing to the strut.

NOTE: While holding the head of the adjusting bolt, loosen the self-locking nut.

6) Remove the three nuts securing strut mount to body.





INSTALLATION

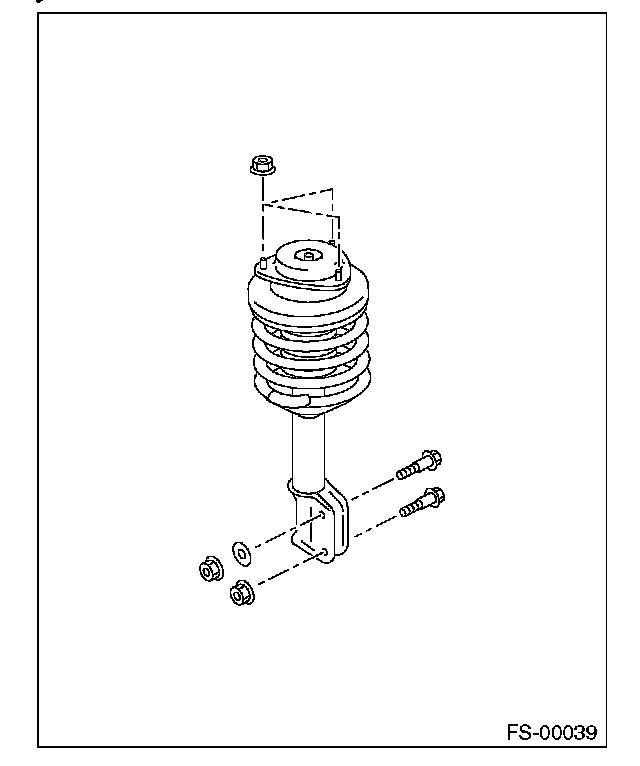

1) Install the strut mount at the upper side of strut to body, and tighten it with new self-locking nuts.
Tightening torque: 20 N-m (2.0 kgf-m, 14.5 ft-lb)
2) Align alignment marks on the camber adjusting bolt and strut.
Using new self-locking nuts, install the strut to the housing.

NOTE: While holding the head of adjusting bolt, tighten the self-locking nut.

Tightening torque: 152 N-m (15.5 kgf-m, 112.1 ft-lb)
3) Secure the ABS wheel speed sensor harness to the strut.
Tightening torque: 33 N-m (3.4 kgf-m, 24.3 ft-lb)
4) Install the bolts which secure the brake hose to the strut.
Tightening torque: 33 N-m (3.4 kgf-m, 24.3 ft-lb)
5) Install the front wheels.
6) Inspect the wheel alignment and adjust if necessary.
