Rear Suspension

DISPOSAL

CAUTION:
^ Before handling the shock absorber, be sure to wear goggles to protect eyes from gas, oil and cutting powder.
^ Do not disassemble the shock absorber or place it into a fire.
^ Drill a hole into shock absorbers in case of discarding shock absorbers filled with gas.

1) Place the shock absorber on a level surface with the piston rod fully expanded.

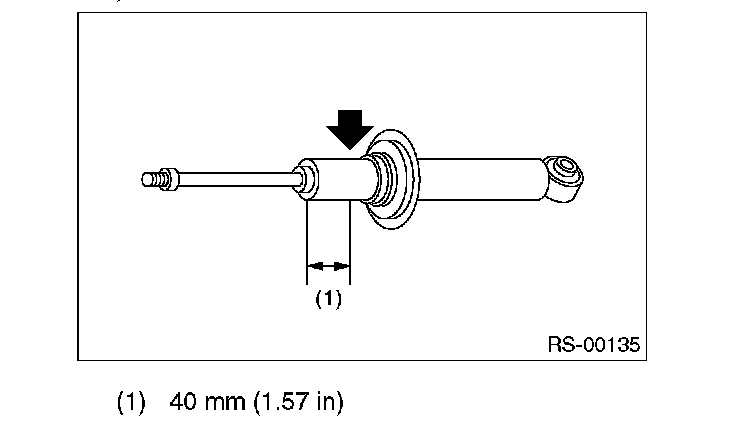

2) Make a hole into the specified position 30 mm (1.18 in) deep using a drill with 2 - 3 mm (0.08 - 0.12 in) diameter.
