Rear ABS Sensor
Rear ABS Wheel Speed SensorREMOVAL
1) Disconnect the ground cable from the battery.

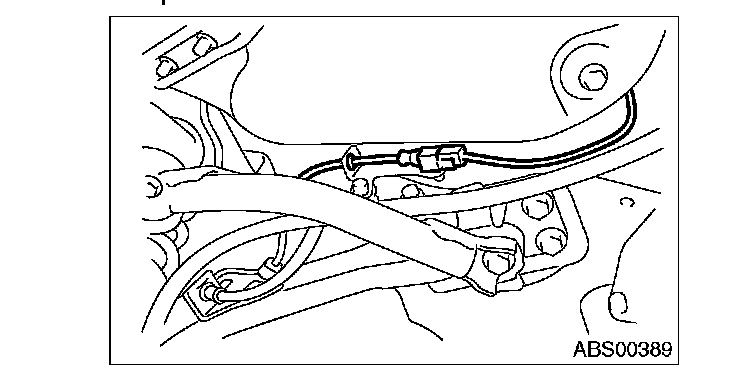

2) Disconnect the connector from the rear ABS wheel speed sensor.

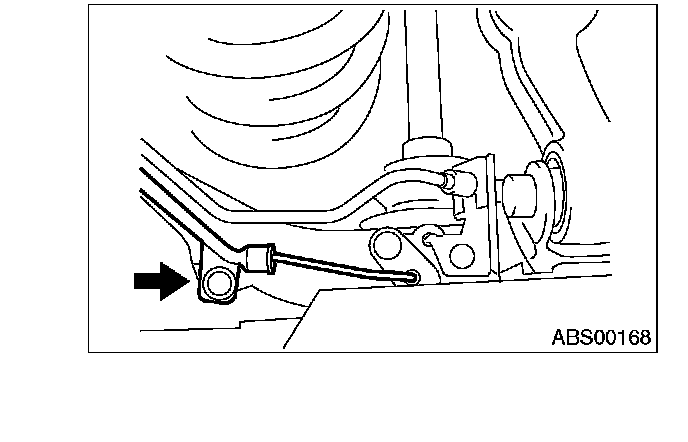

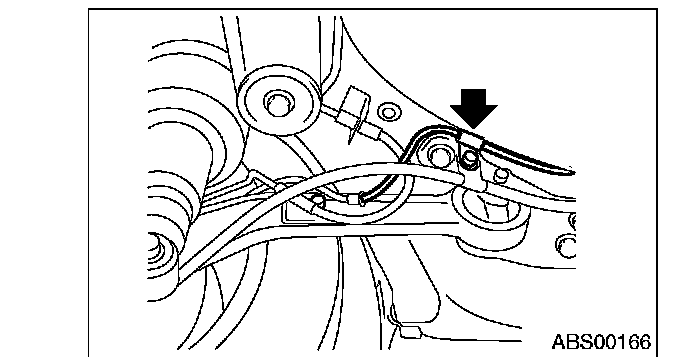

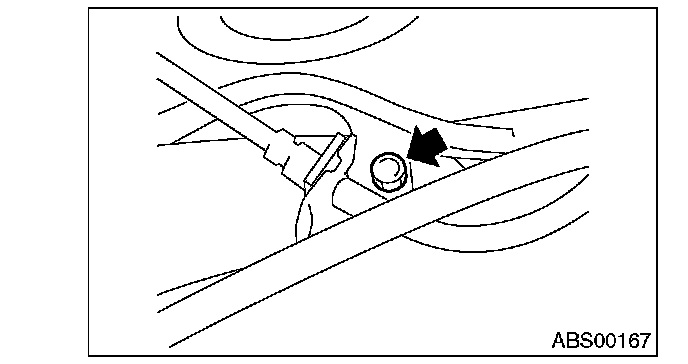

3) Remove the sensor harness bracket from the rear arm.

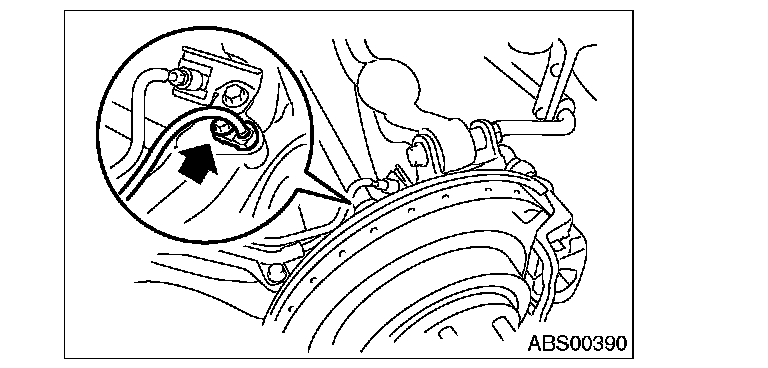

4) Remove the rear ABS wheel speed sensor from the rear arm.
CAUTION:
^ Be careful not to damage the sensor.
^ Do not apply excessive force to the sensor harness.
INSTALLATION
Install in the reverse order of removal.
CAUTION: Be careful not to damage the sensor.
Tightening torque:
Sensor: 7.5 N-m (0.76 kgf-m, 5.5 ft-lb)
Bracket: 33 N-m (3.3 kgf-m, 24 ft-lb)
NOTE: Check the identification (mark) on the harness to make sure there is no warpage. (RH: K5 (White), LH: K6 (Yellow))
INSPECTION
ABS WHEEL SPEED SENSOR
