With ABS

G Sensor





REMOVAL
1) Disconnect the ground cable from the battery.
2) Remove the console box.
3) Disconnect the connector from G sensor.

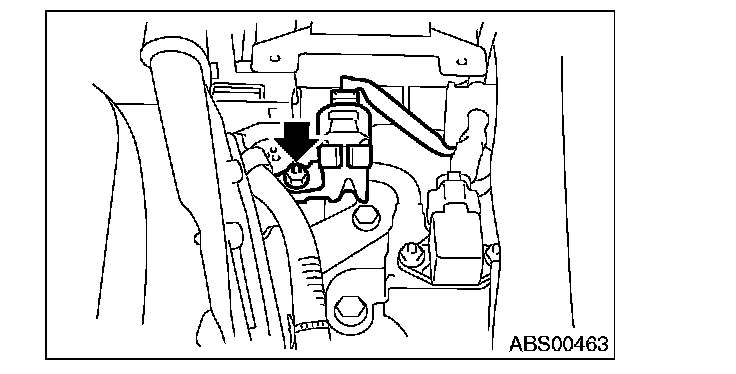

4) Remove the G sensor from the body.

CAUTION:
^ Do not drop or bump the G sensor.
^ The G sensor integrated with the bracket. Do not disassemble.





INSTALLATION
Install in the reverse order of removal.

CAUTION: Do not drop or bump the G sensor.

Tightening torque: 7.5 N-m (0.76 kgf-m, 5.5 ft-lb)

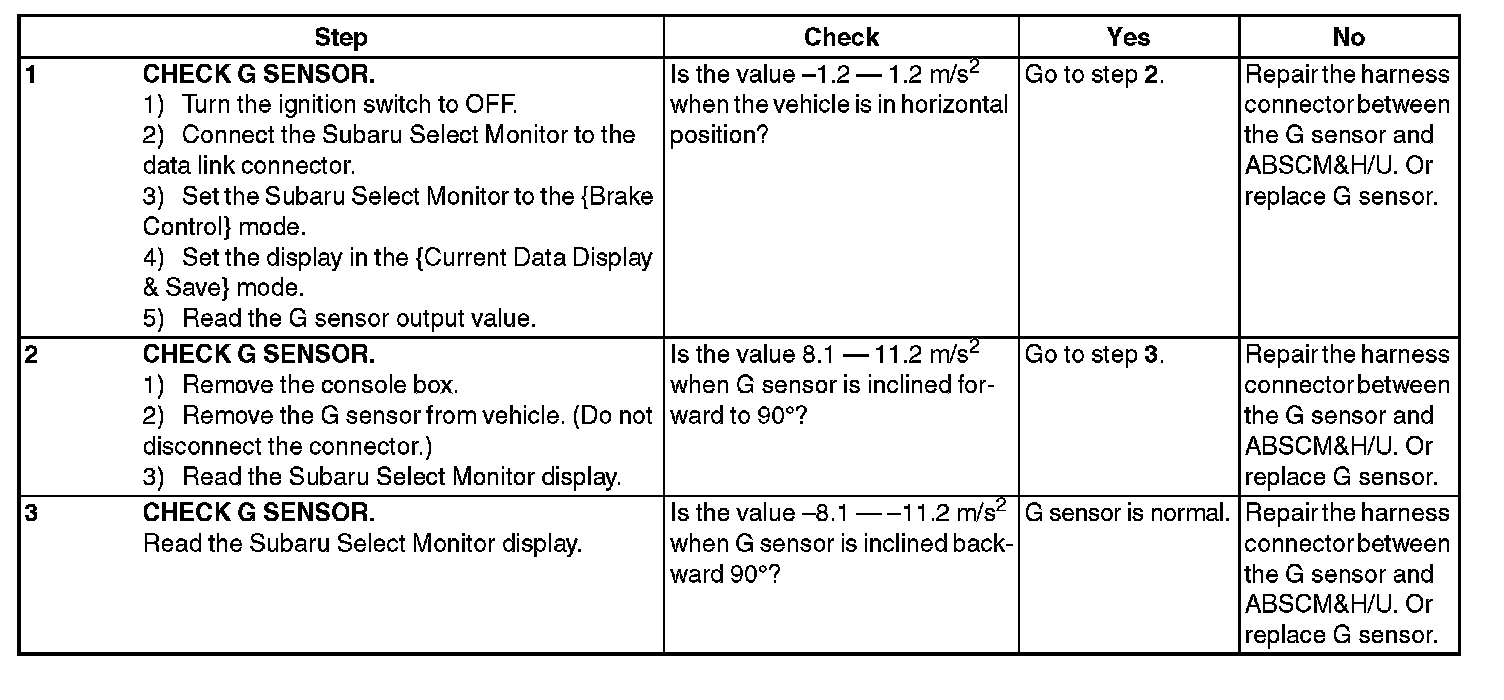

INSPECTION
