Curtain Airbag Sensor
Curtain Airbag Sensor

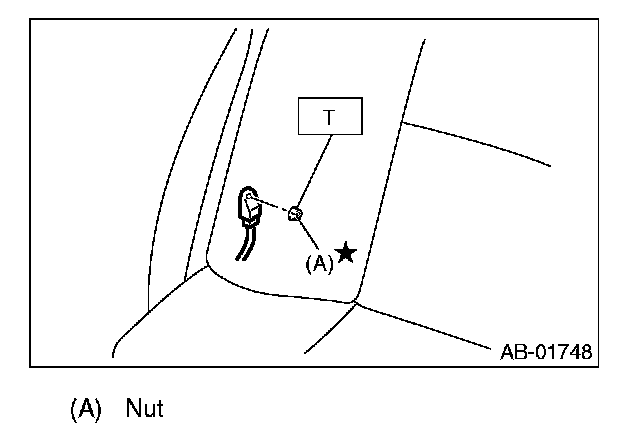

CURTAIN AIRBAG SENSOR
Tightening torque:
8.0 N.m (0.82 kgf.m, 5.9 ft.lb)
CAUTION: Do not reuse mounting bolts and nuts.
