Electronic Throttle Actuator Relay: Service and Repair

Electronic Throttle Control Relay

REMOVAL
1. Disconnect the ground cable from the battery.






2. Remove the glove box.

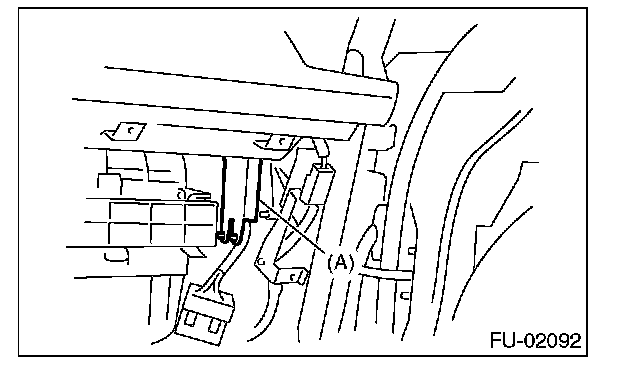

3. Remove the harness cover (A).

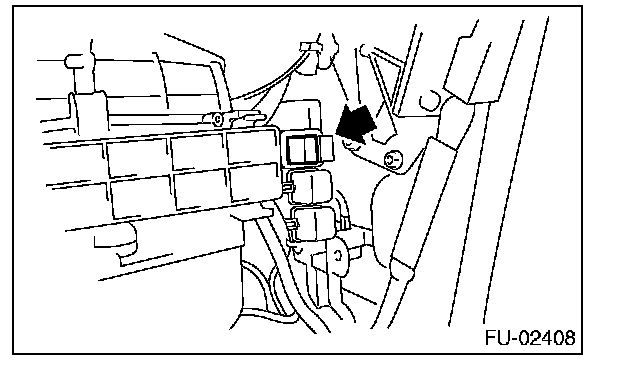

4. Disconnect the connector from electric throttle control relay.






INSTALLATION
Install in the reverse order of removal.
