Diagnostic Strategies

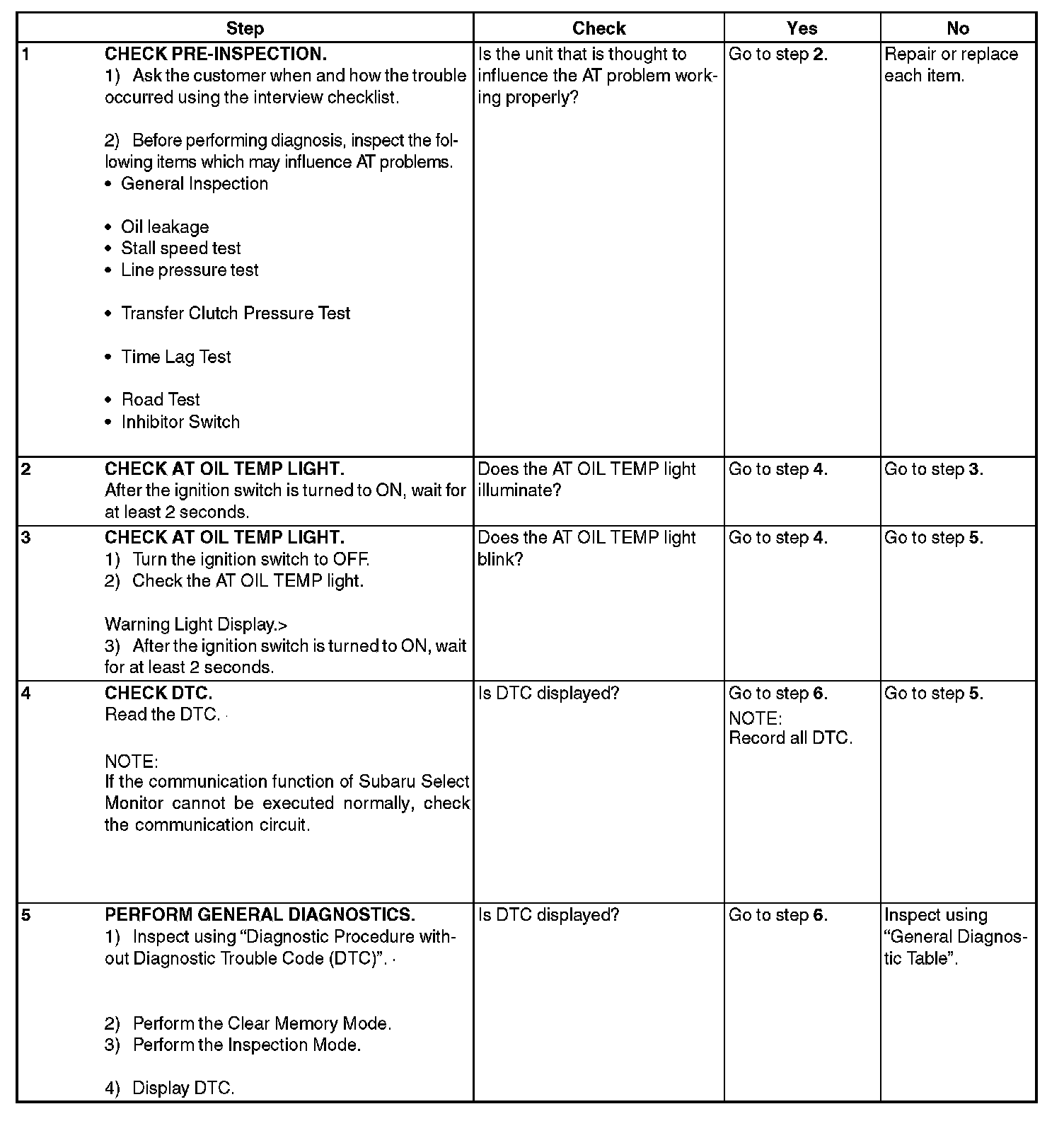

Basic Diagnostic Procedure

PROCEDURE

Step 1-Step 5:

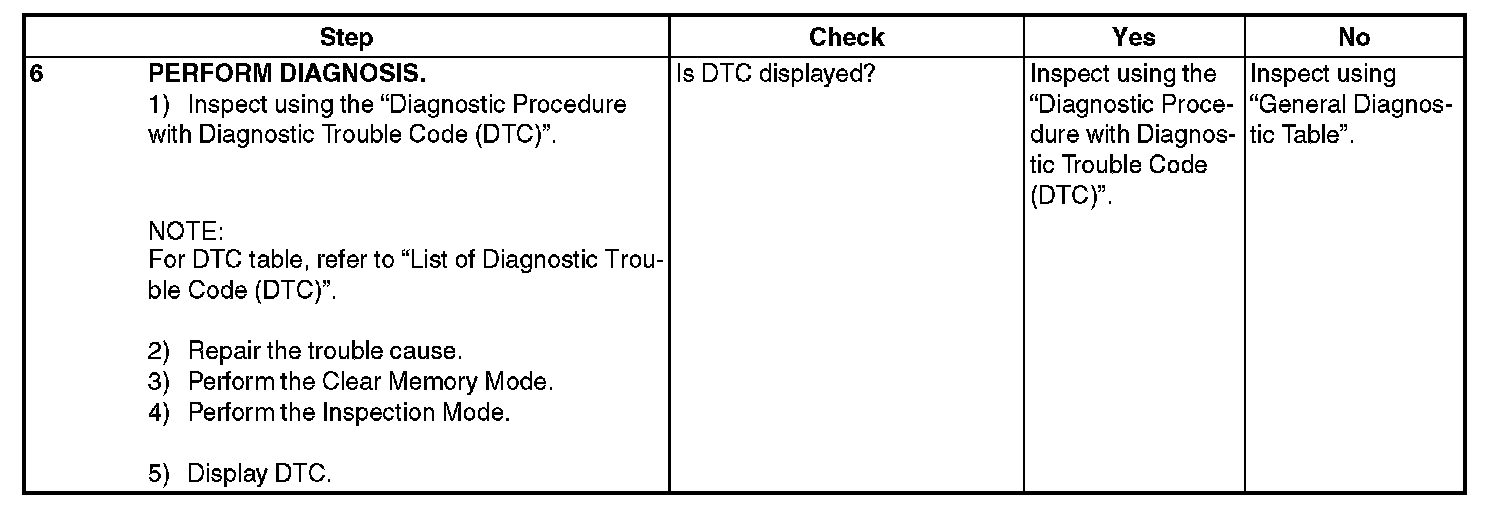

Step 6:

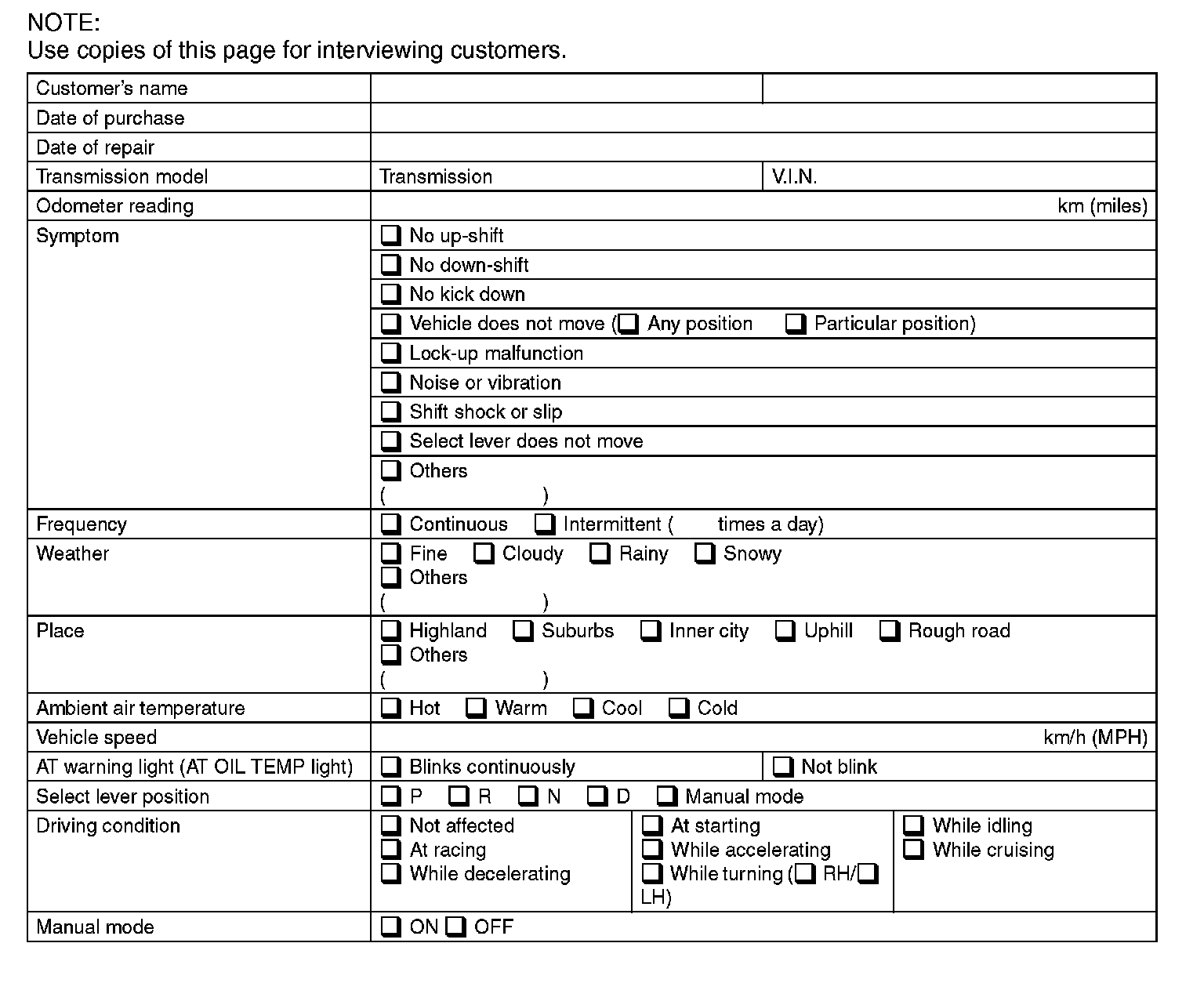

Check List for Interview

CHECK
Check the following items when a problem has occurred.

NOTE: Use copies of this page for interviewing customers.
