Communication for Initializing Impossible
Communication for Initializing Impossible
COMMUNICATION FOR INITIALIZING IMPOSSIBLE
DIAGNOSIS:
Defective harness connector
TROUBLE SYMPTOM:
Subaru Select Monitor communication failure

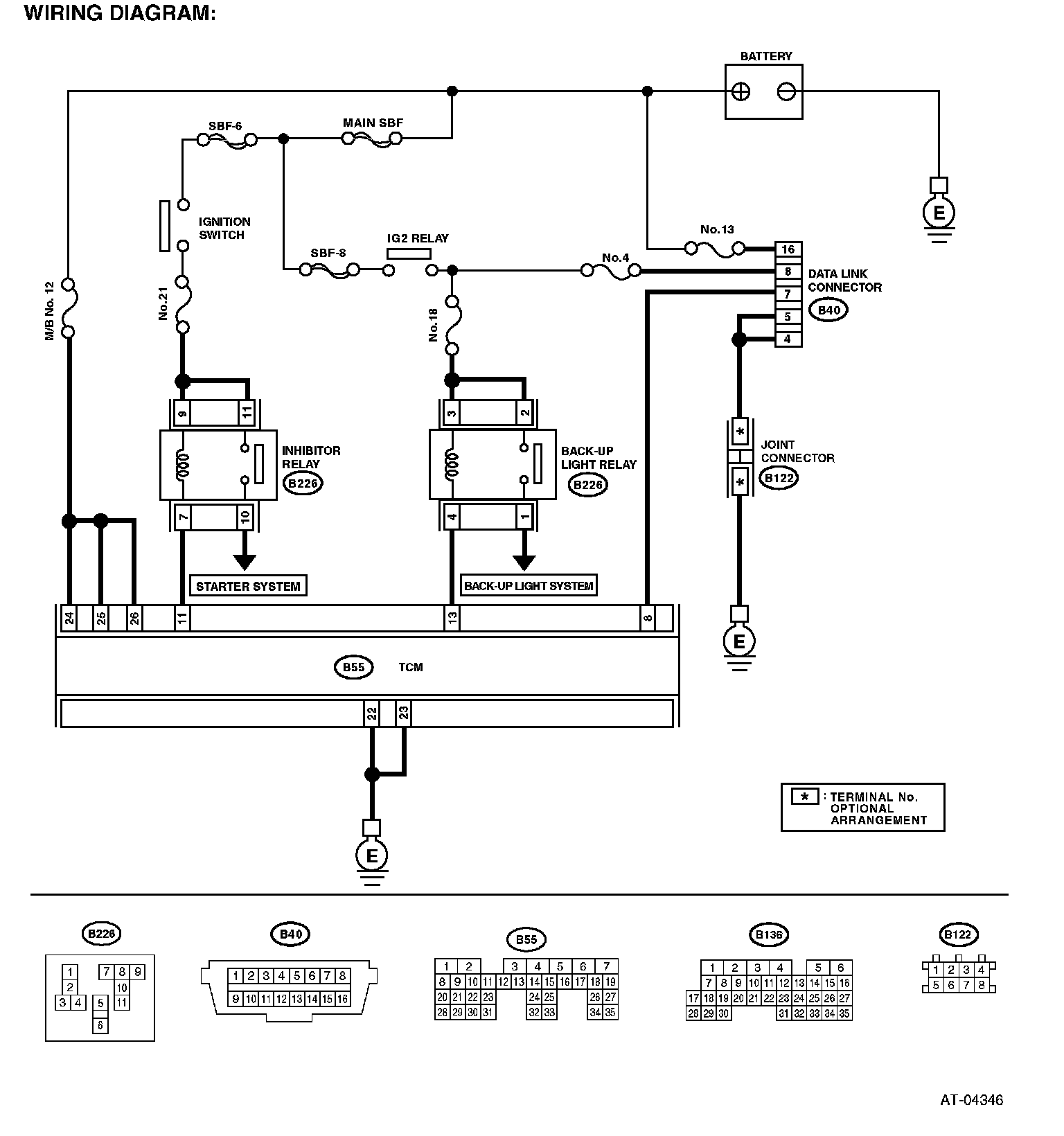

WIRING DIAGRAM:

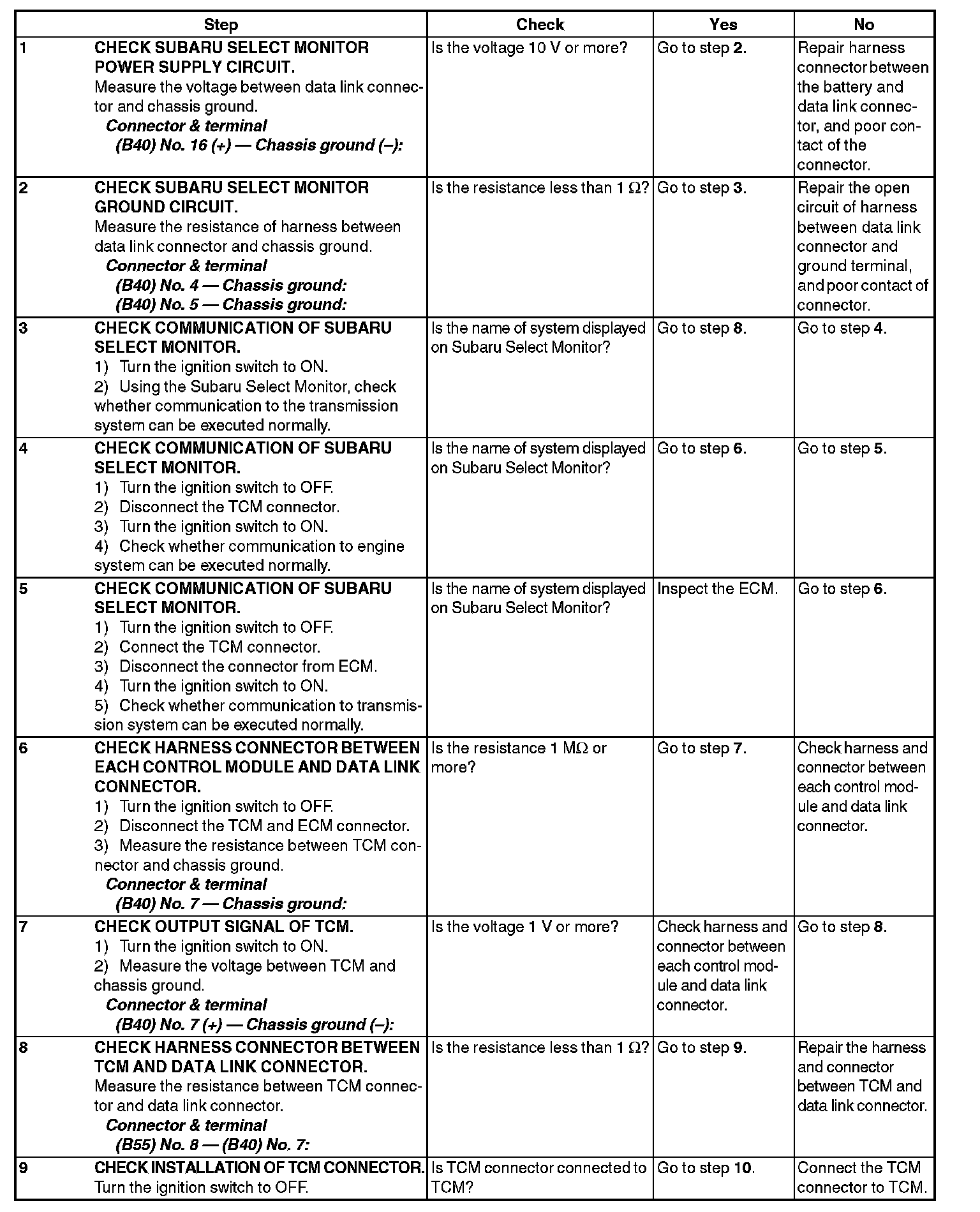

Step 1-Step 9:

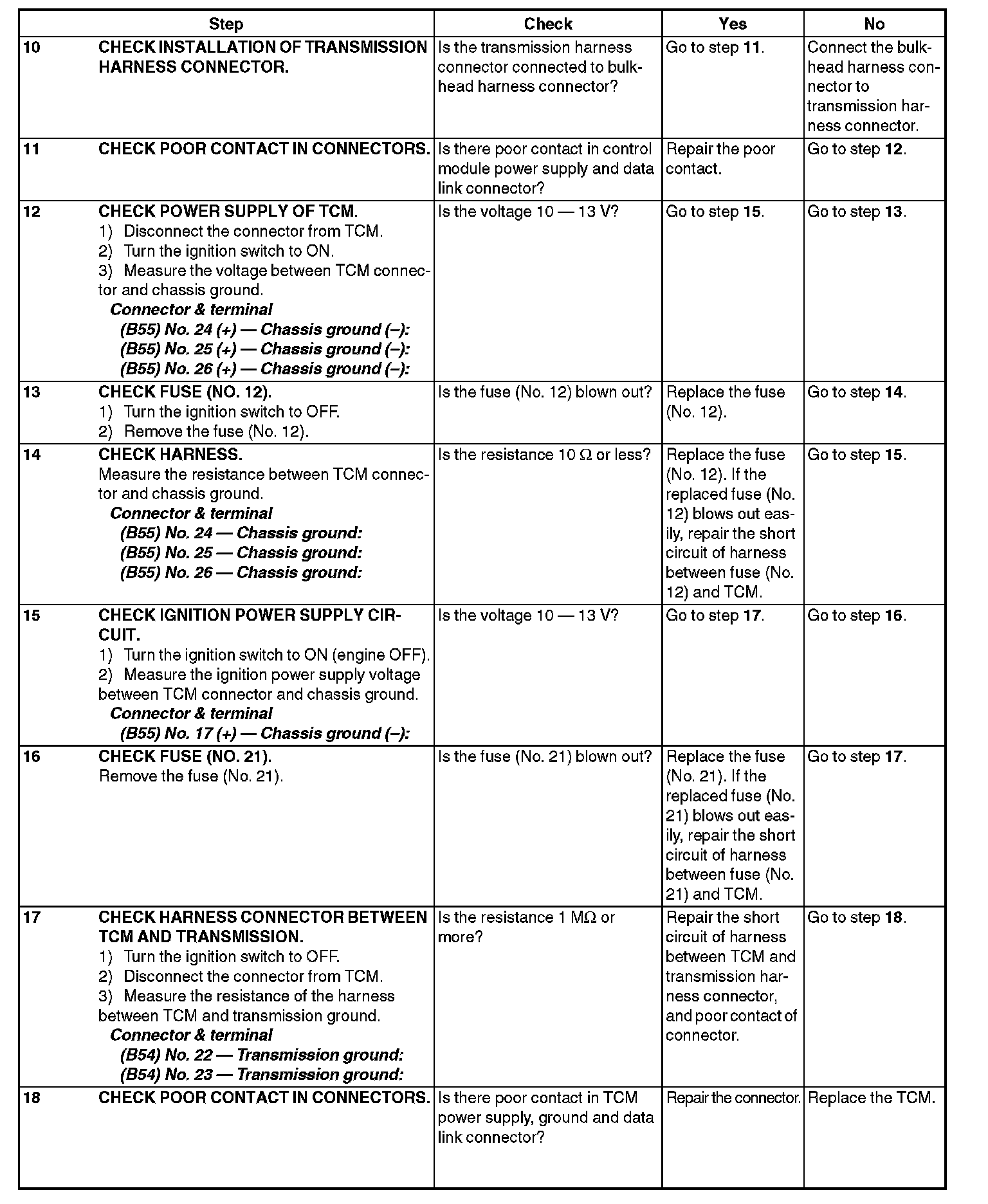

Step 10-Step 18:
