Throttle Body: Service and Repair

Throttle Body

REMOVAL
1. Remove the collector cover.

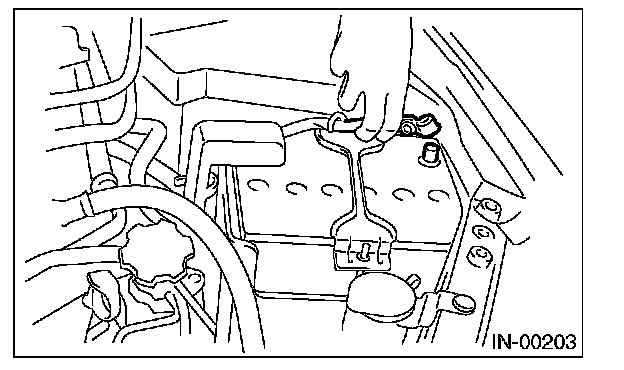

2. Disconnect the ground cable from the battery.






3. Remove the air intake chamber.

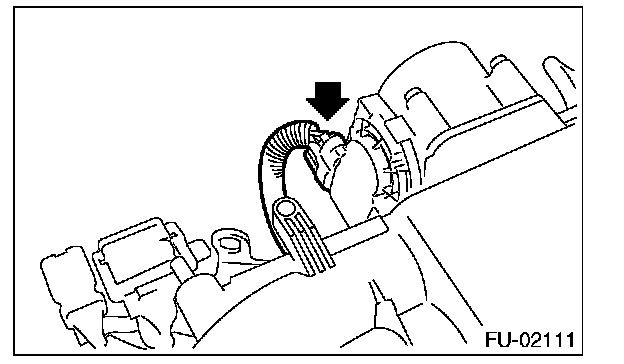

4. Disconnect the connector from throttle body.

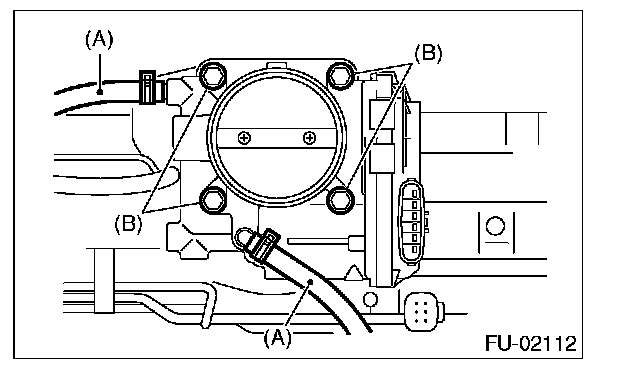

5. Disconnect the engine coolant hoses (A) from the throttle body.
6. Remove the bolts (B) which secure throttle body to intake manifold.






INSTALLATION
Install in the reverse order of removal.

NOTE: Use new O-rings.

Tightening torque: 8 N.m (0.8 kgf.m, 5.9 ft.lb)
