Overhaul
Fuel Filler PipeDISASSEMBLY

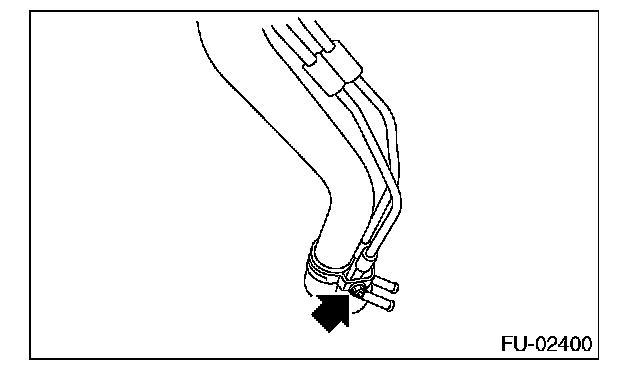

1. Move the clamp and disconnect the evaporation hose from the shut valve.

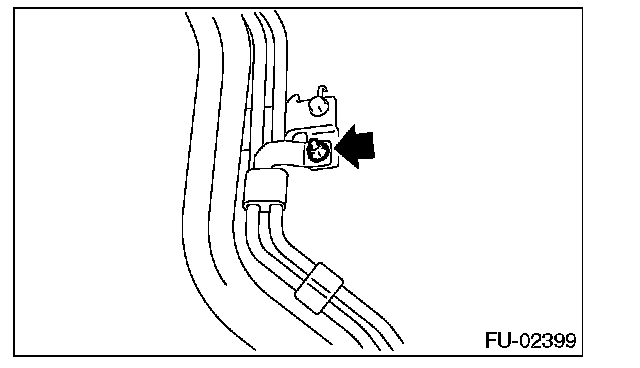

2. Remove the nut which holds the evaporation pipe assembly to the fuel filler pipe.

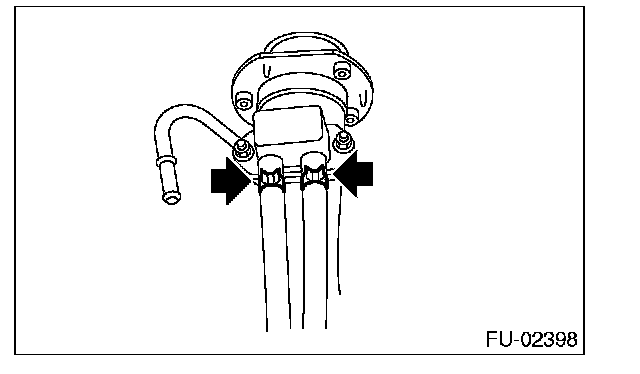

3. Remove the shut valve from the fuel filler pipe.
ASSEMBLY

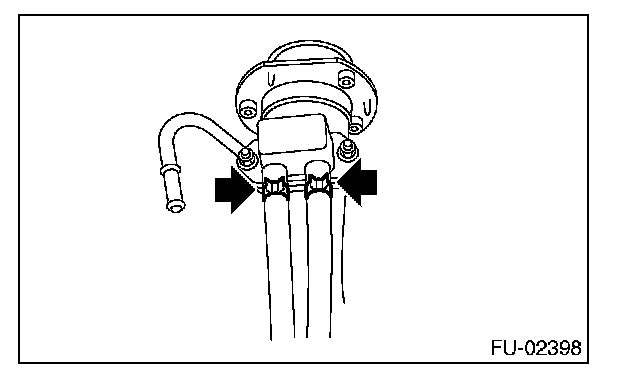

1. Install the shut valve to the fuel filler pipe.

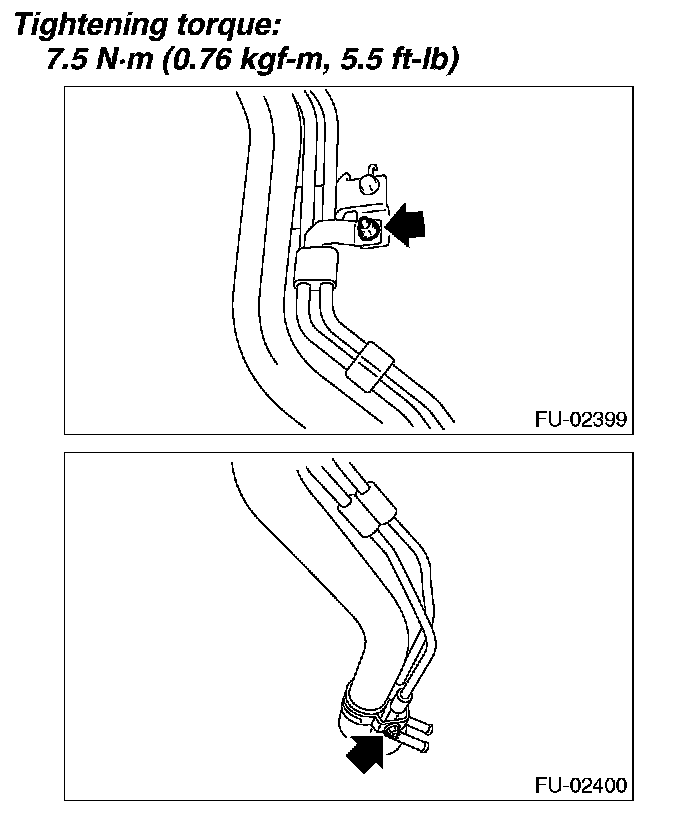

2. Tighten the nuts which secure the evaporation pipe assembly to the fuel filler pipe.
3. Connect the evaporation hose to the shut valve.
