Fuel Pressure Pulsation Damper: Service and Repair

Fuel Damper Valve

REMOVAL

CAUTION:
- Be careful not to spill fuel.
- Catch the fuel from hoses using a container or cloth.

1. Release the fuel pressure.

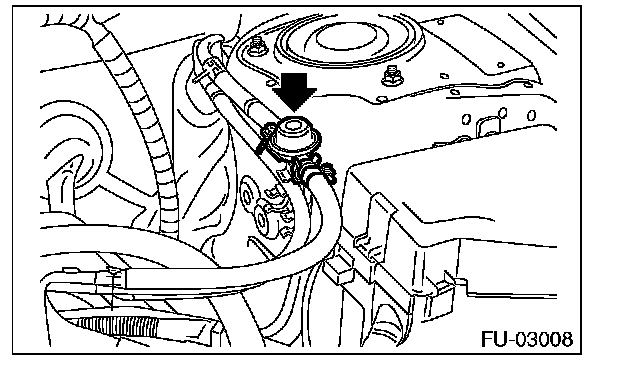

2. Remove the fuel damper valve from the fuel delivery line.






INSTALLATION

CAUTION: If fuel hoses or clamps are damaged, replace them with new parts.

Install in the reverse order of removal.

Tightening torque: 1.25 N.m (0.13 kgf.m, 0.94 ft.lb)
