Fuel Injector: Service and Repair

Fuel Injector

REMOVAL

1. RH SIDE
1. Remove the collector cover.
2. Release the fuel pressure.
3. Open the fuel filler flap lid, and remove the fuel filler cap.

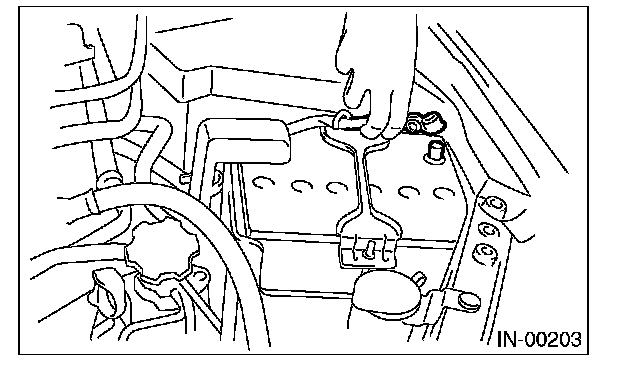

4. Disconnect the ground cable from the battery.






5. Remove the air cleaner case.

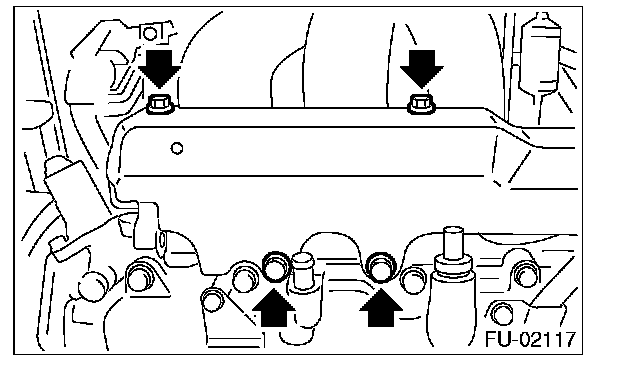

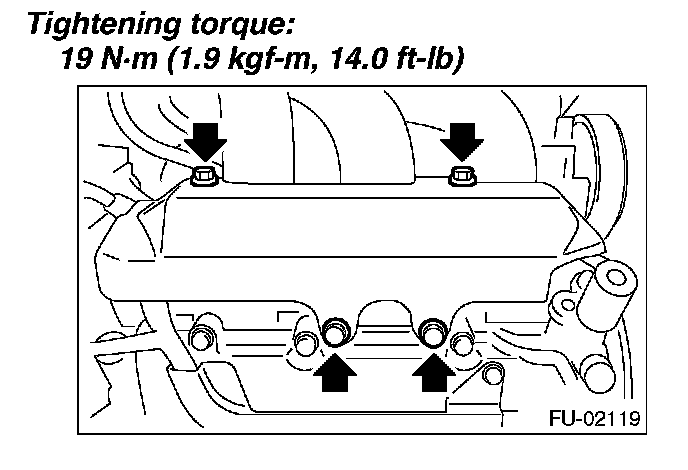

6. Remove the fuel pipe protector RH.

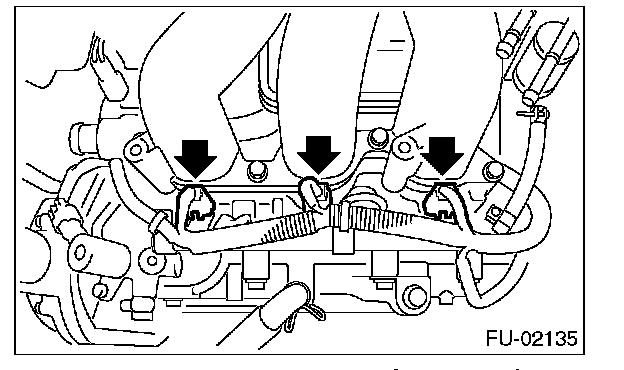

7. Disconnect the connector from fuel injector.






8. Remove the engine harness from the fuel injector pipe RH.

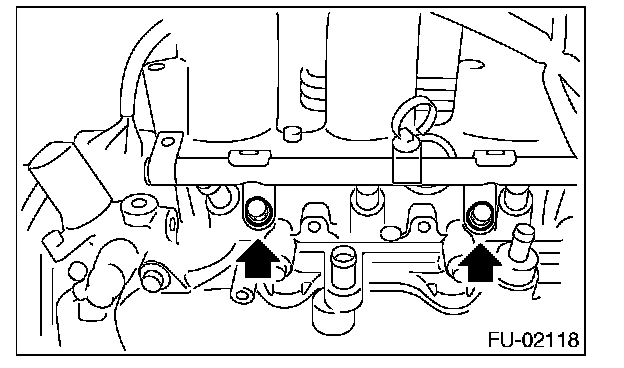

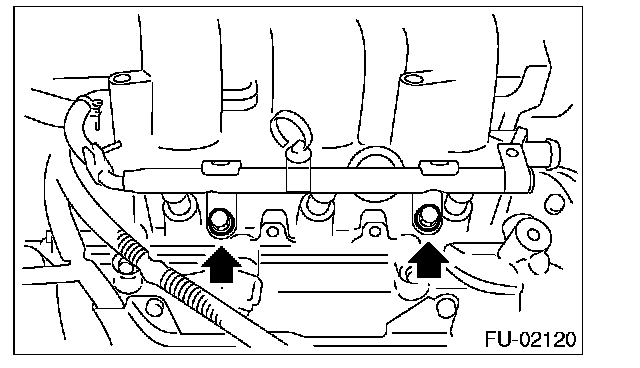

9. Remove the bolts which hold fuel injector pipe to the cylinder head.






10. Remove the fuel injector while lifting up the fuel injector pipe.

2. LH SIDE
1. Remove the collector cover.
2. Release the fuel pressure.
3. Open the fuel filler flap lid, and remove the fuel filler cap.
4. Remove the battery.
5. Remove the generator harness from the fuel pipe protector LH.

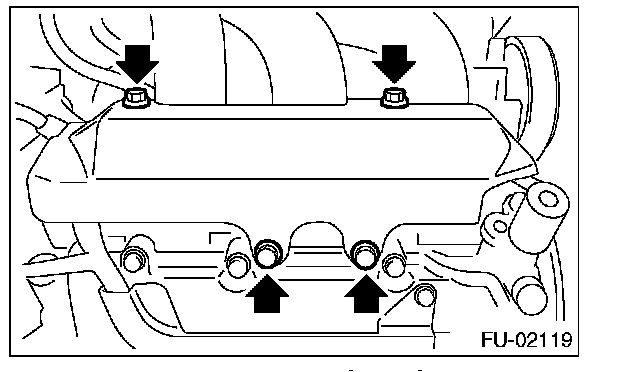

6. Remove the fuel pipe protector LH.

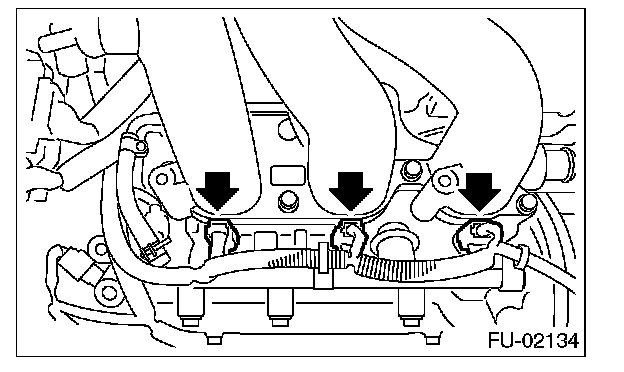

7. Disconnect the connector from fuel injector.






8. Remove the engine harness from the fuel injector pipe LH.
9. Remove the bolts which hold fuel injector pipe to the cylinder head.






10. Remove the fuel injector while lifting up the fuel injector pipe.

INSTALLATION

1. RH SIDE

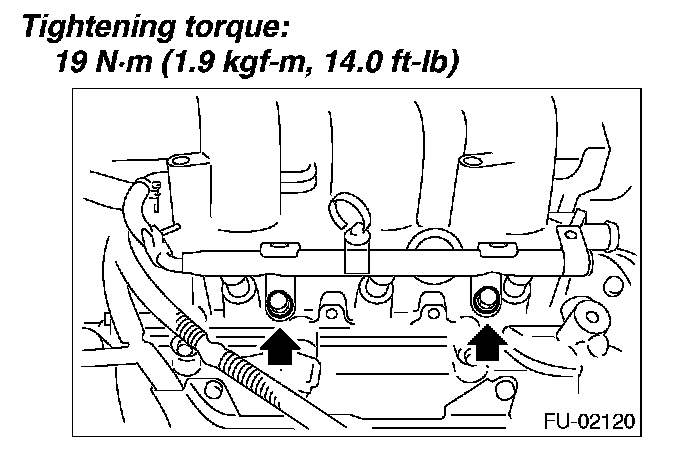

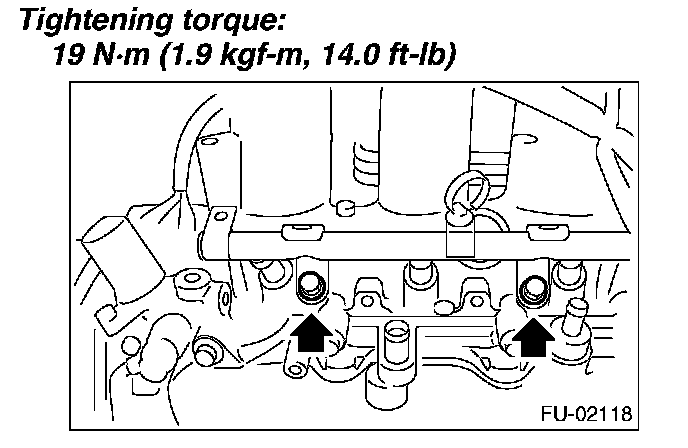

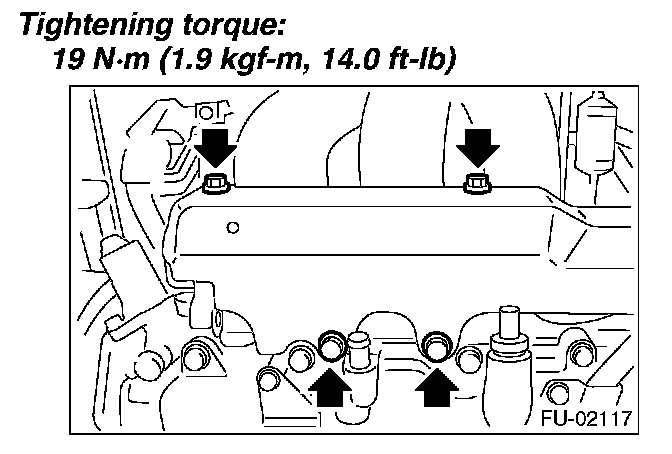

Install in the reverse order of removal.

NOTE: Use new O-rings.









2. LH SIDE
Install in the reverse order of removal.

NOTE: Use new O-rings.
