EGR Valve: Service and Repair

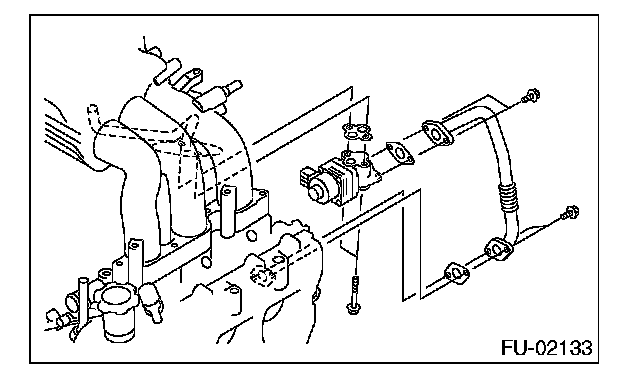

EGR Valve

REMOVAL
1. Remove the collector cover and the engine side cover.

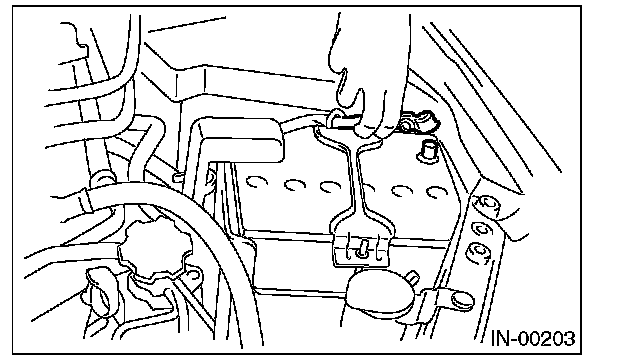

2. Disconnect the ground cable from the battery.






3. Remove the air intake chamber.
4. Remove the starter.
5. Remove the EGR pipe from the EGR valve and the cylinder head.
6. Remove the EGR valve from intake manifold.






7. Disconnect the connector from the EGR valve.

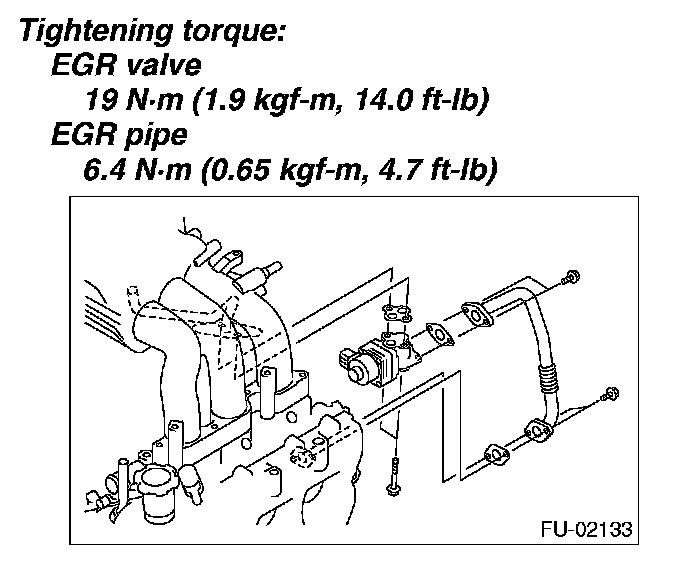

INSTALLATION
Install in the reverse order of removal.

NOTE: Use a new gasket.
