Check Power Supply and Ground Line of Engine Control Module (ECM)
CHECK POWER SUPPLY AND GROUND LINE OF ENGINE CONTROL MODULE (ECM)CAUTION: After repairing or replacing the defective part, perform the Clear Memory Mode Clear Memory Mode and Inspection Mode

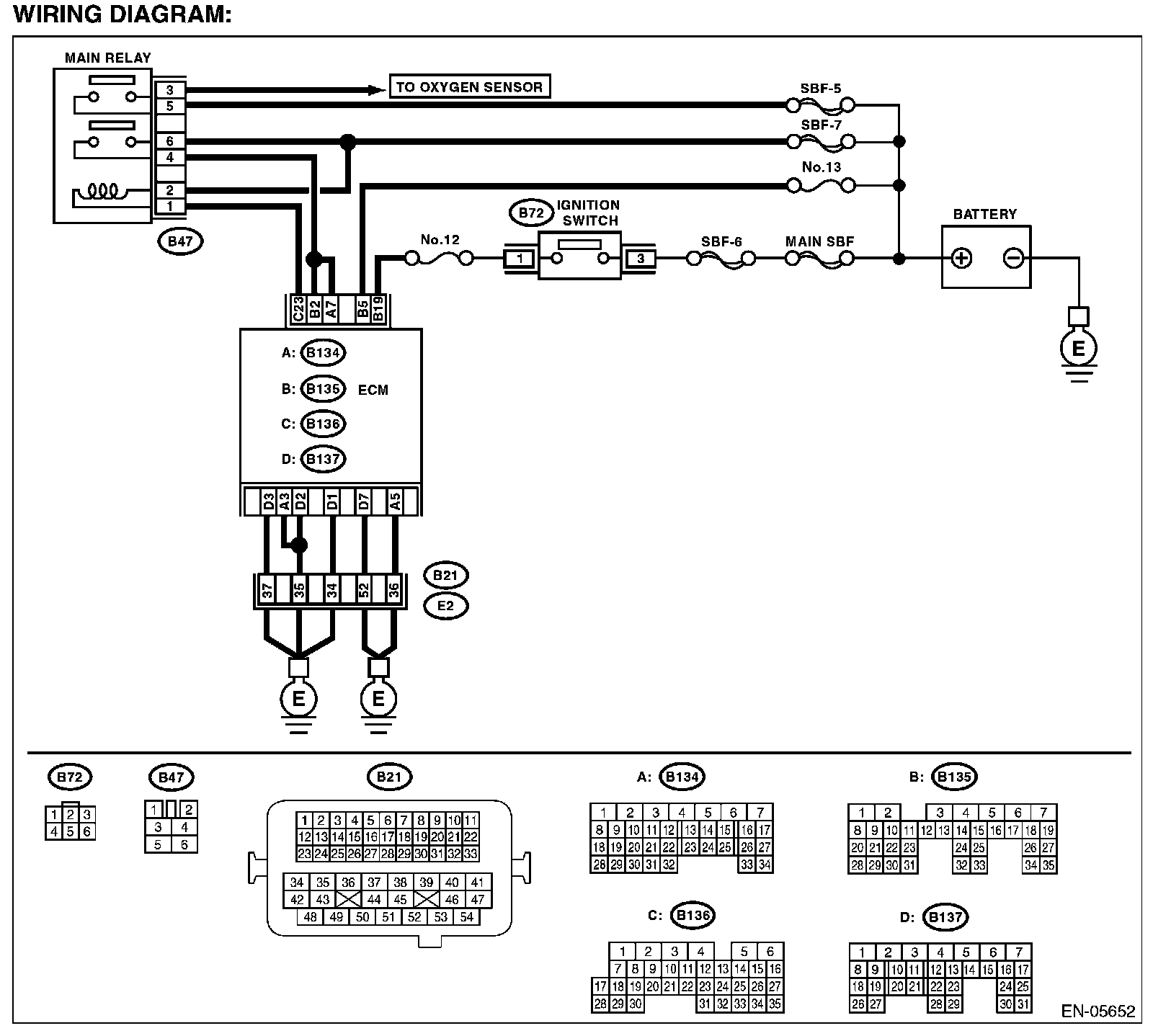

Wiring Diagram:

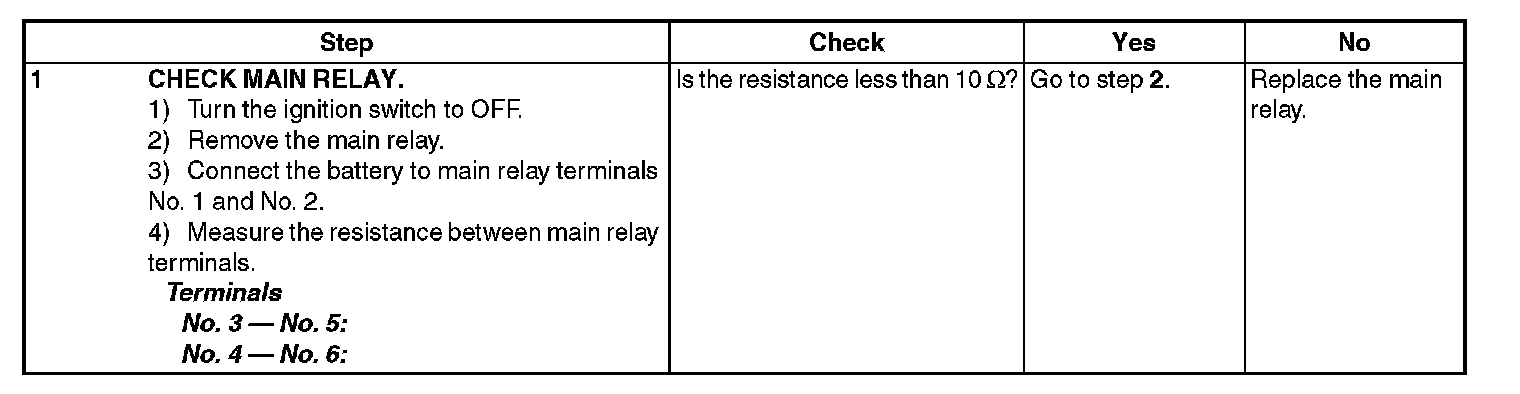

Step 1:

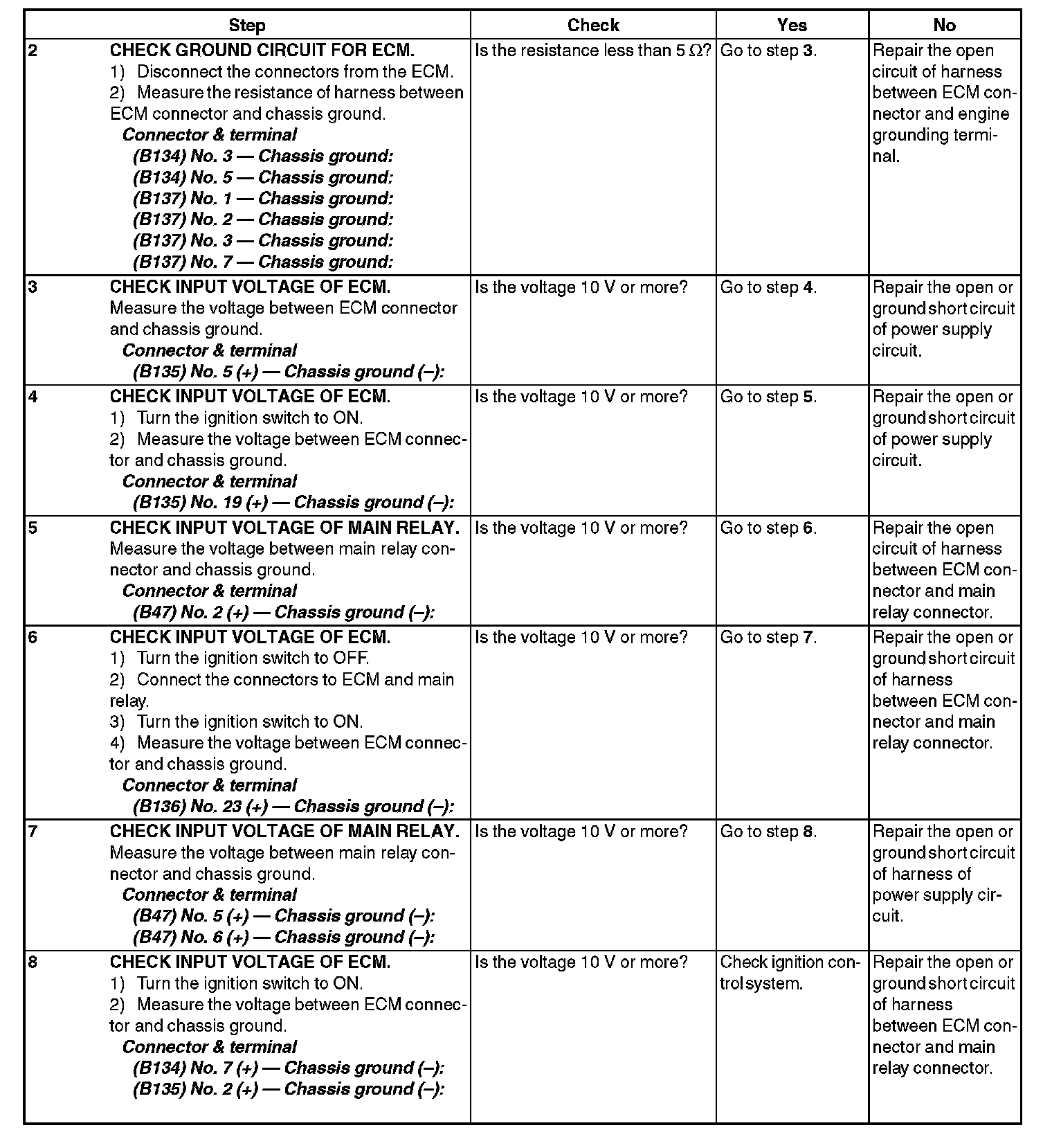

Step 2-8:
