Brake Lamp: Testing and Inspection
INSPECTION
STOP LIGHT SWITCH

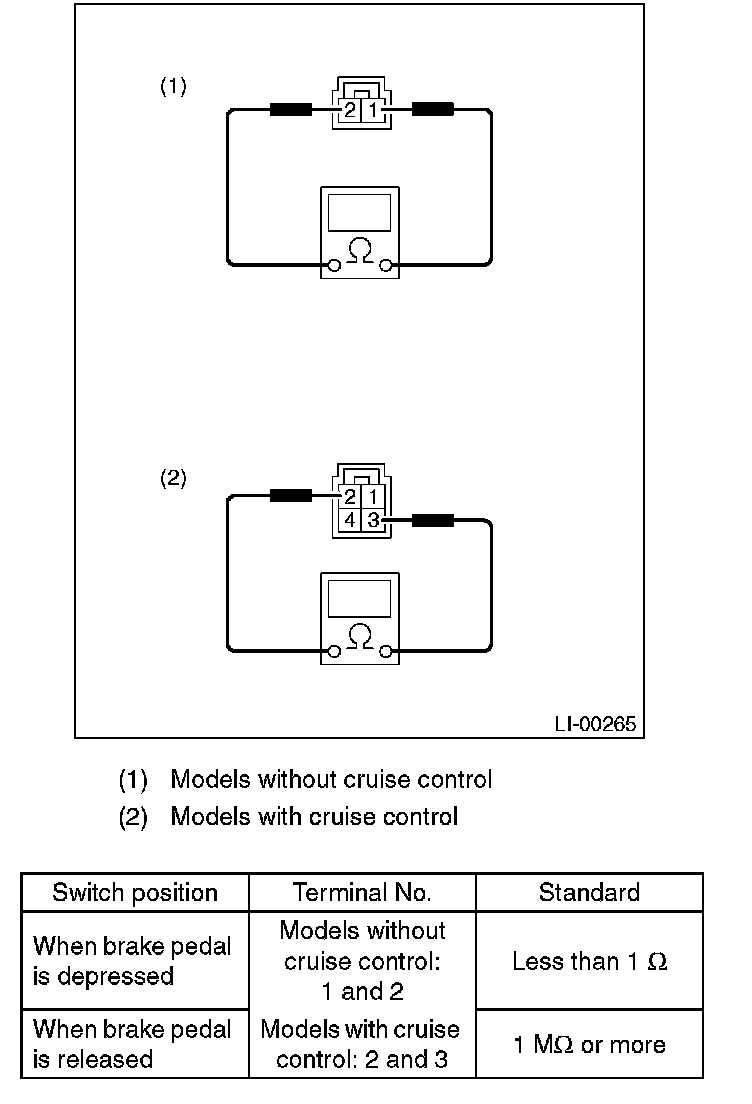

Measure the resistance between stop light switch terminals.
