Home >> Subaru >> 2008 >> Outback F6-3.0L DOHC >> Repair and Diagnosis >> Heating and Air Conditioning >> Power Transistor HVAC >> Testing and Inspection

Power Transistor HVAC: Testing and Inspection

Blower Resistor (Manual A/C Model)

INSPECTION

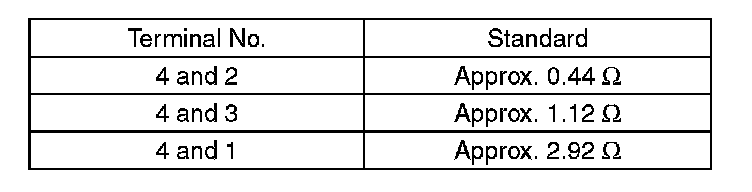

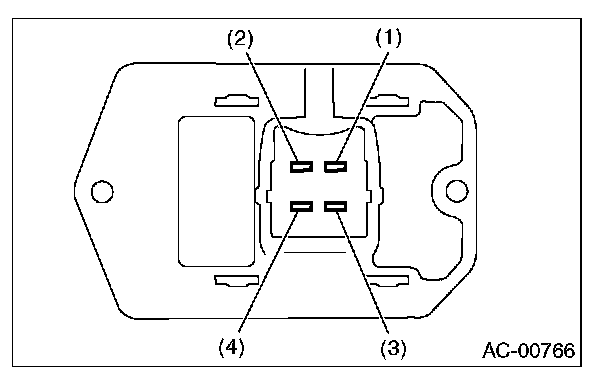

Measure the blower resistor resistance.






If NG, replace the blower resistor.
