Oil Cooler: Service and Repair

Oil Cooler

REMOVAL
1) Set the vehicle on a lift.
2) Lift up the vehicle.
3) Remove the under cover.
4) Drain engine coolant.
5) Drain the engine oil.

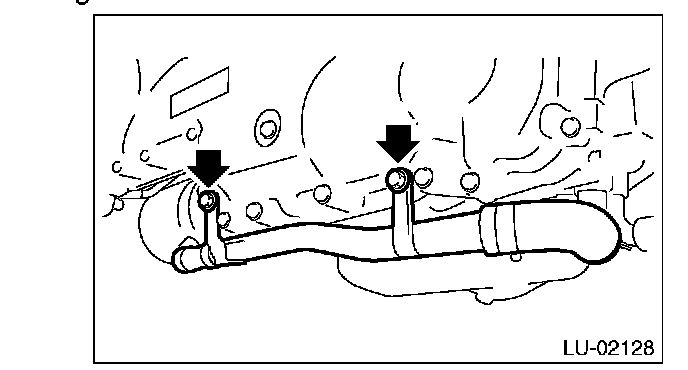

6) Remove the bolts which hold the water pipe to engine.

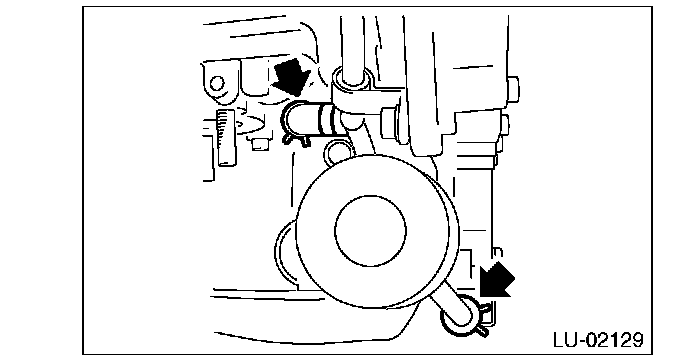

7) Disconnect the water hose from oil cooler.





8) Remove the oil filter using the ST.

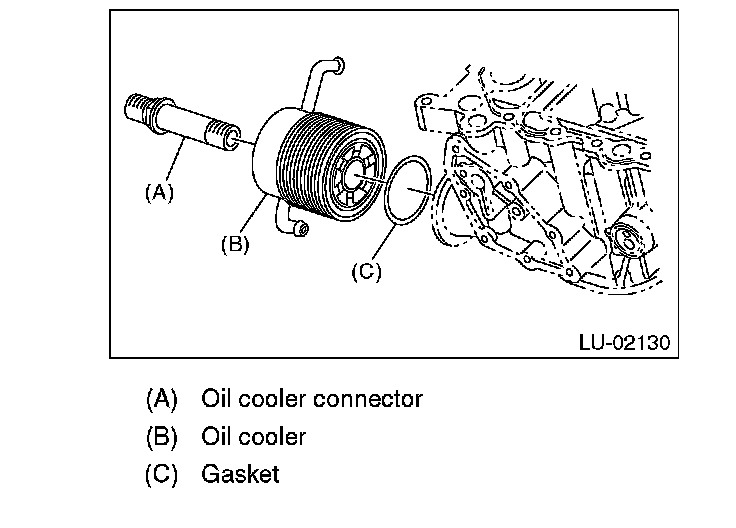

9) Remove the oil cooler connector and remove the oil cooler.





INSTALLATION

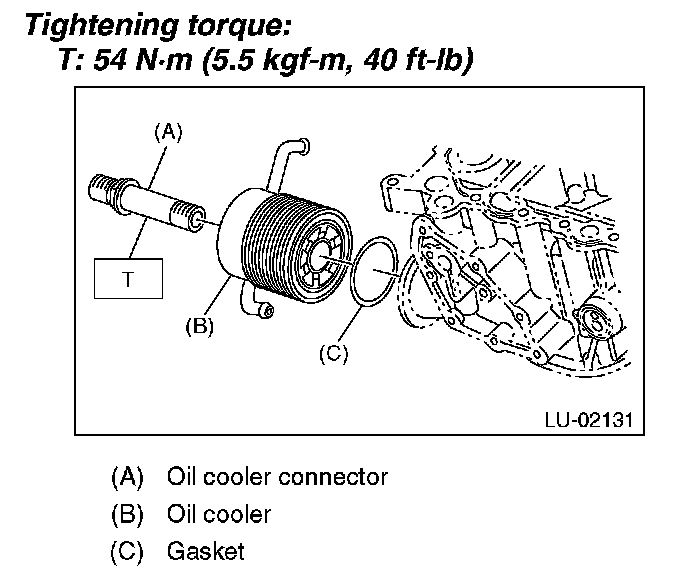

1) Install the oil cooler to oil pan upper with oil cooler connector.

NOTE: Use a new gasket.





2) Install the oil filter.

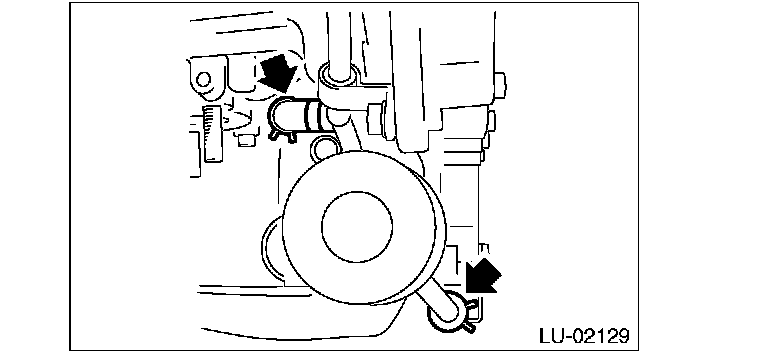

3) Connect the water hose.

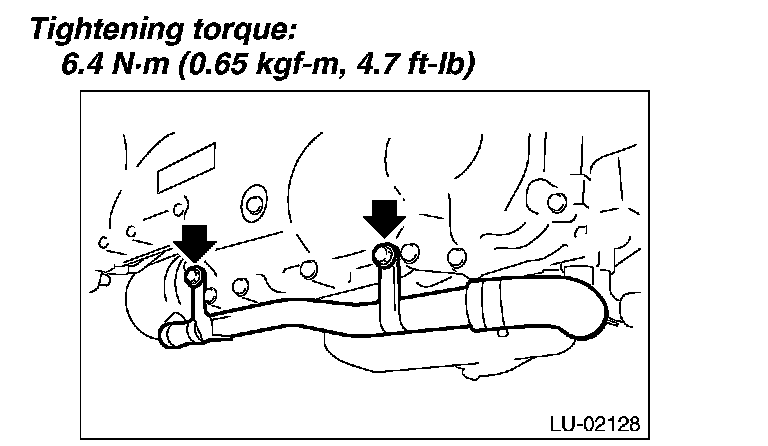

4) Install the water pipe onto engine.





5) Lower the vehicle.
6) Refill the engine oil.
7) Fill engine coolant.
8) Check the engine oil level.

INSPECTION
1) Check that coolant passages are not clogged using an compressed air.
2) Check that the oil pan upper and O-ring installing surface of oil filter are not damaged.
