Diagrams
>>
Exploded Views
>>
Parking Brake System
>>
System Diagram
System Diagram

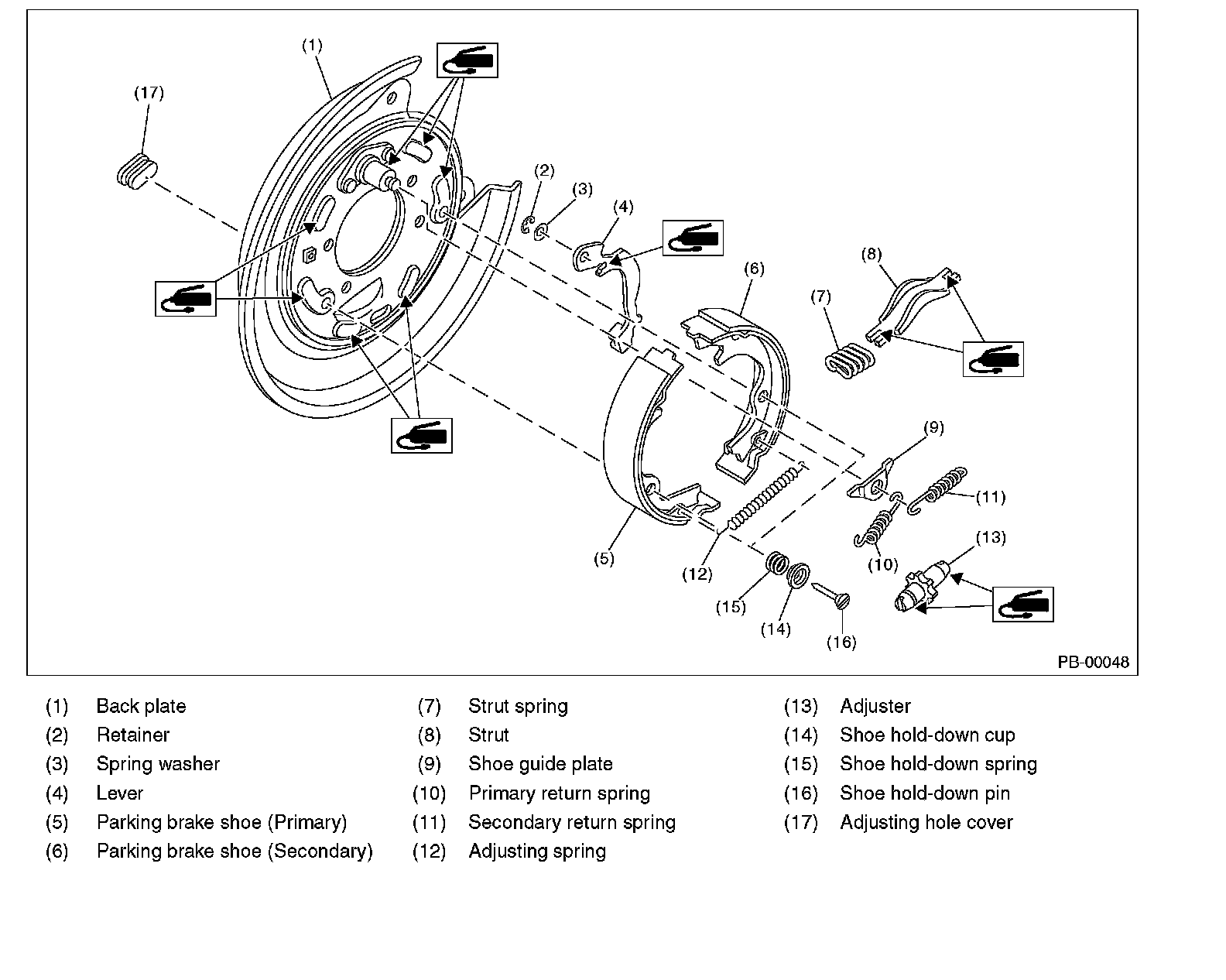

PARKING BRAKE (REAR DISC BRAKE):

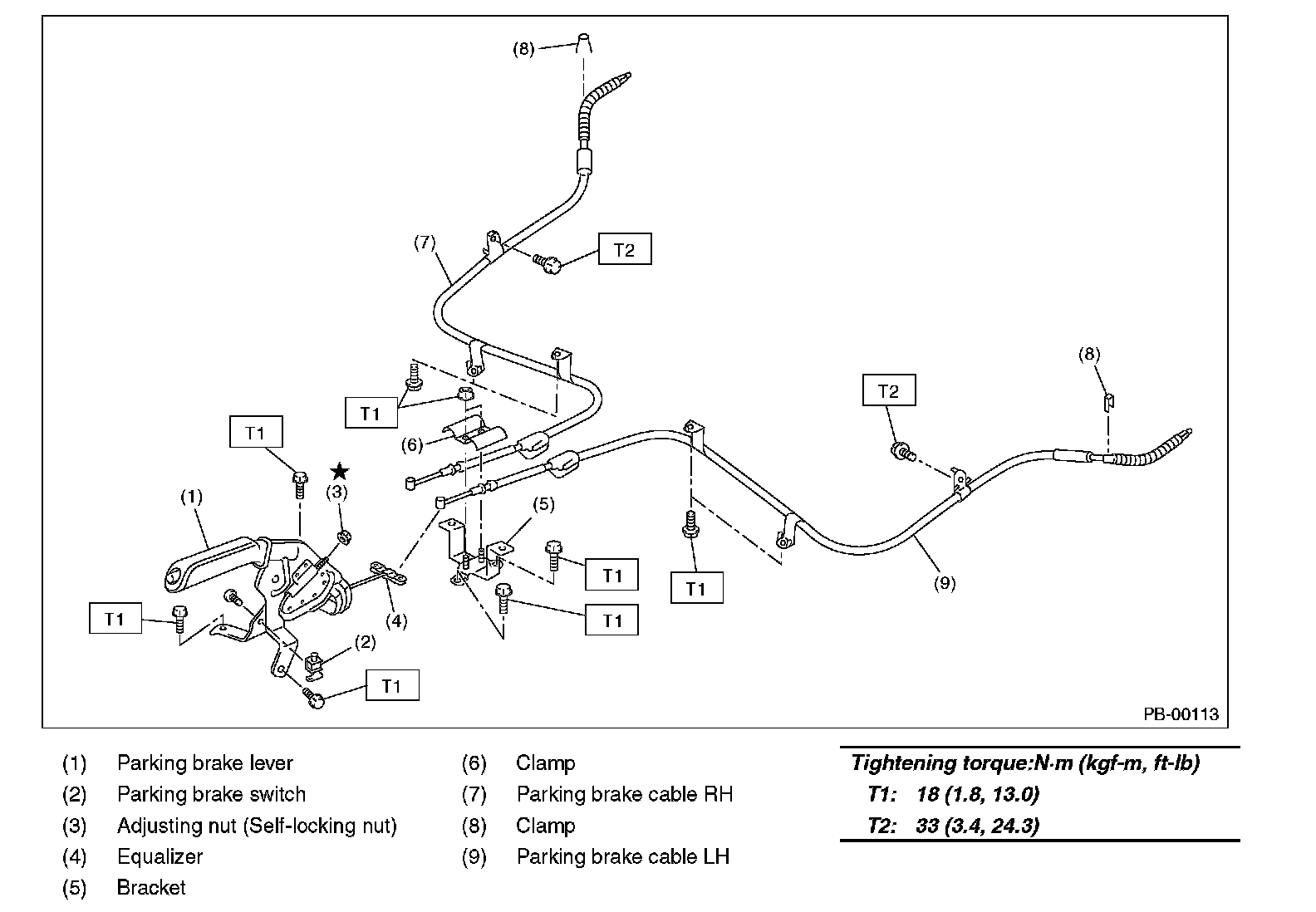

PARKING BRAKE CABLE:
