Heating and Air Conditioning

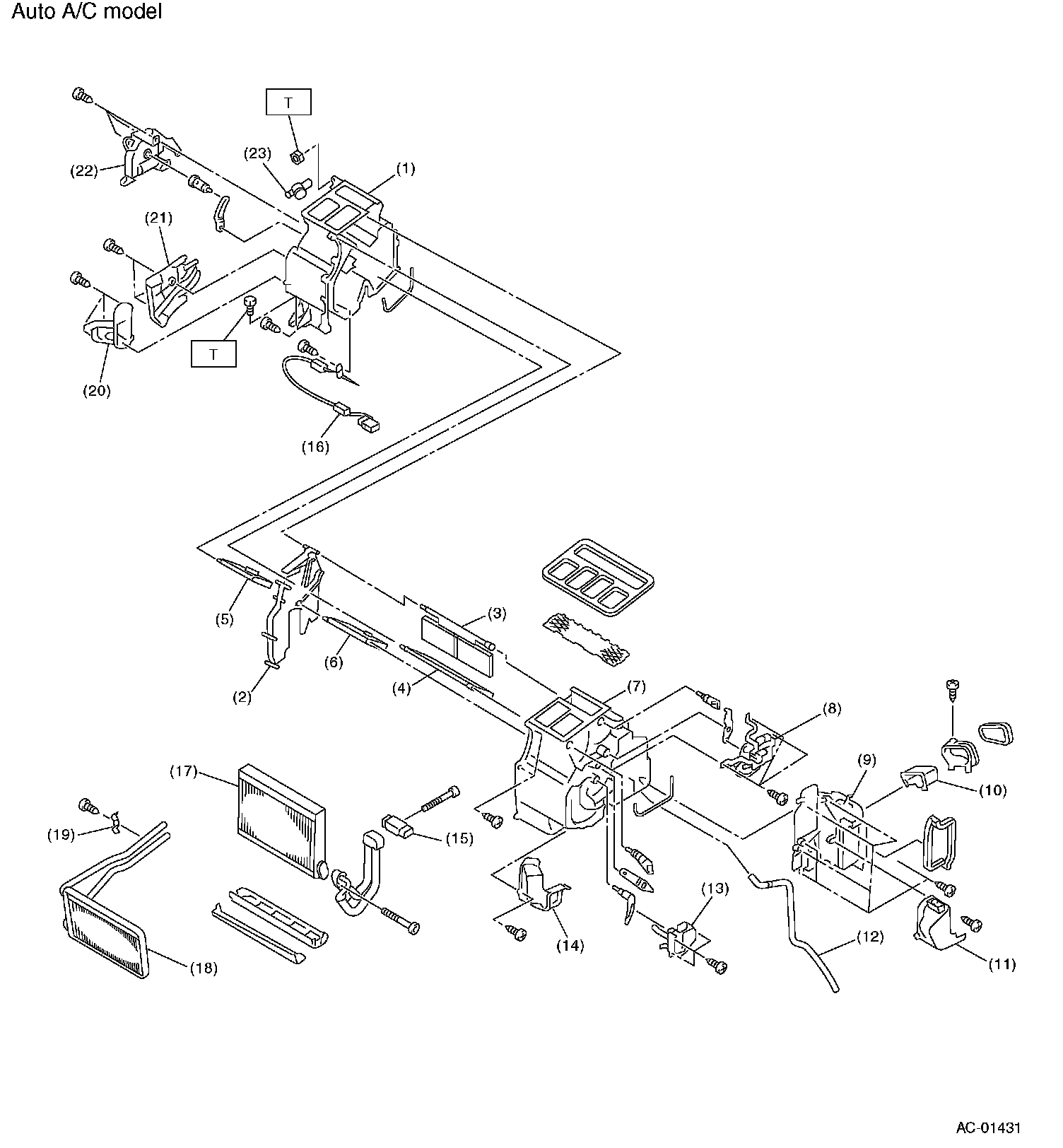

Heater Cooling Unit - Auto A/C Model (Part 1):

Heater Cooling Unit - Auto A/C Model (Part 2):

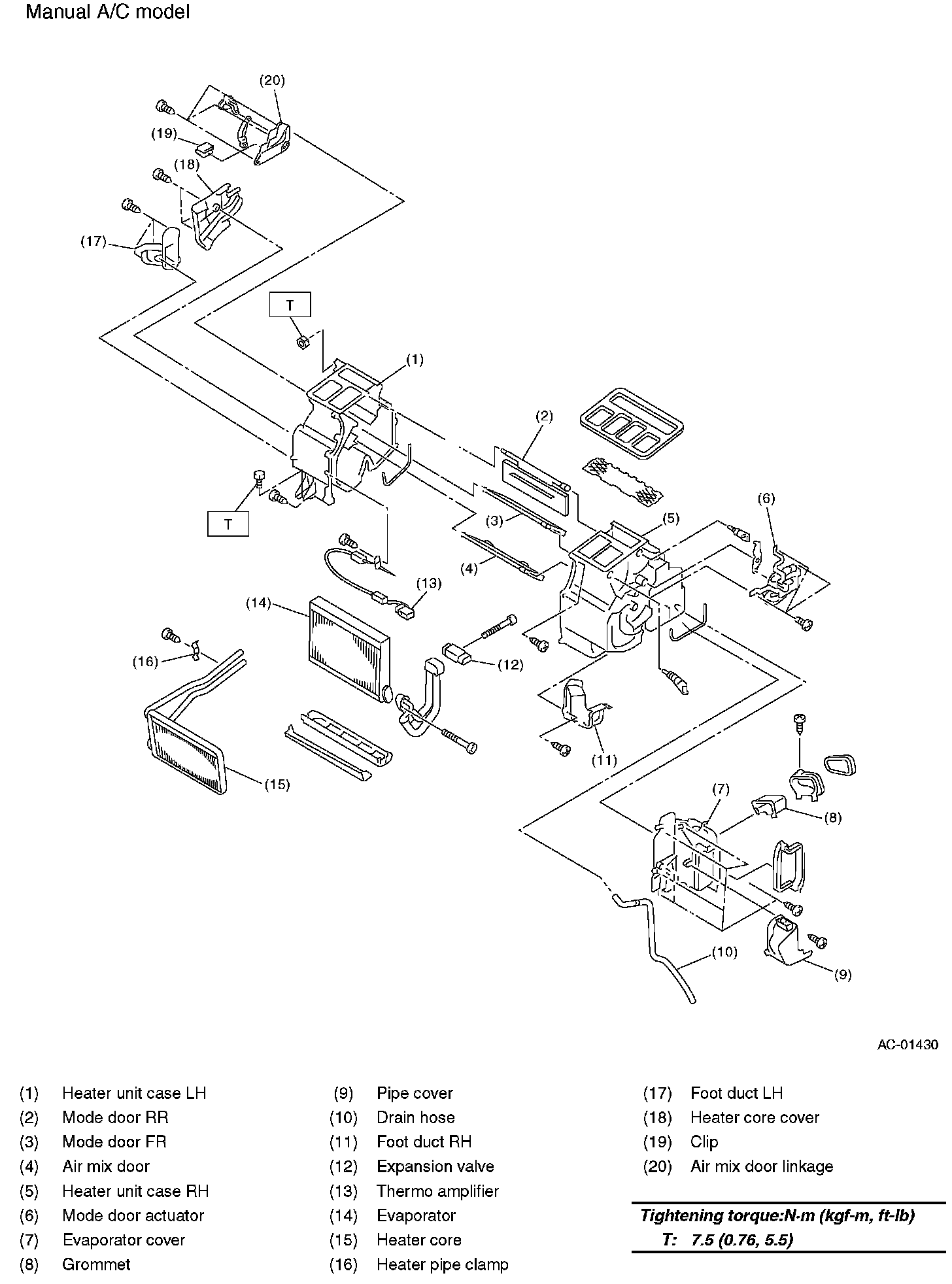

Manual A/C Model:

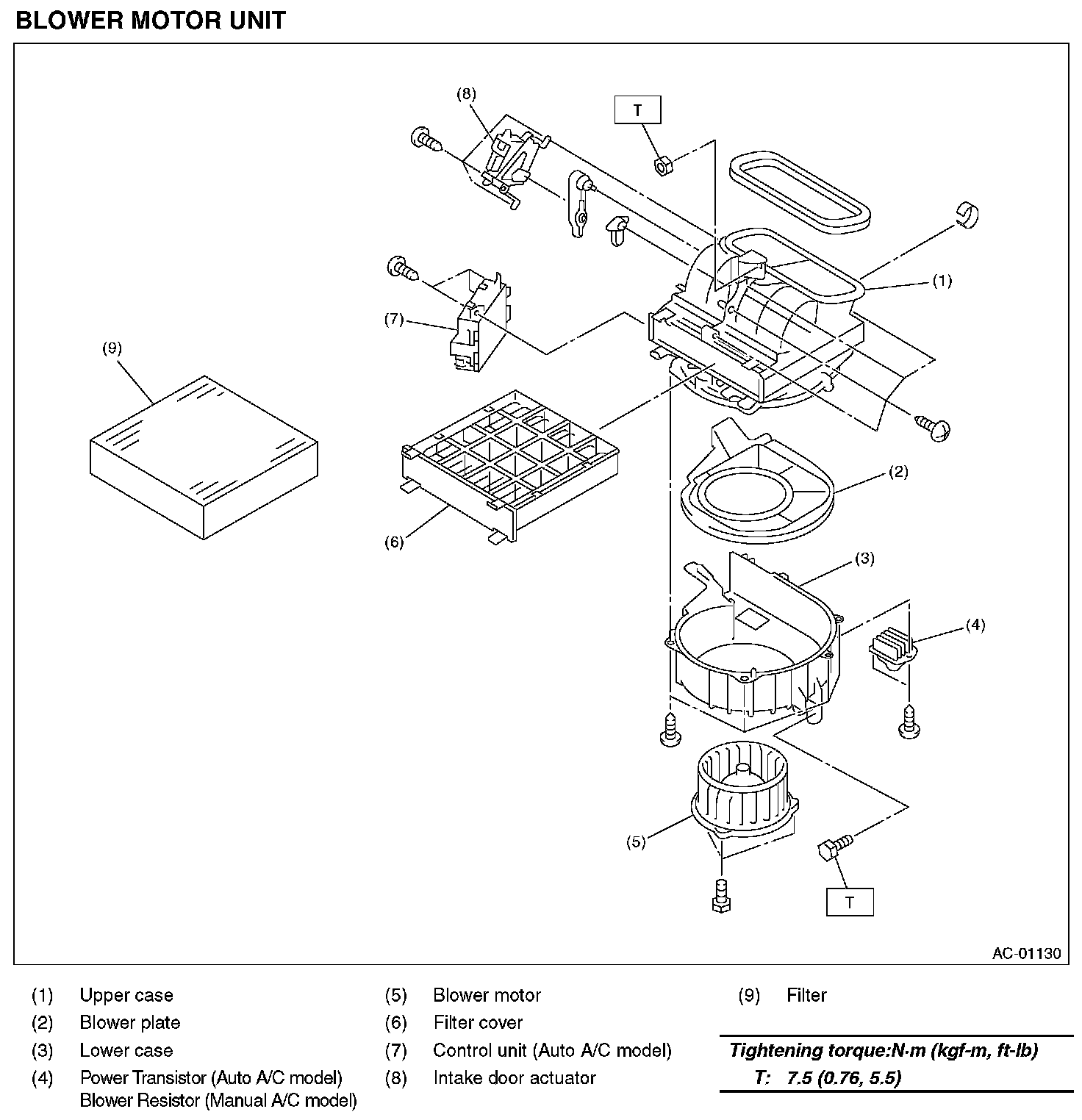

Blower Motor Unit:

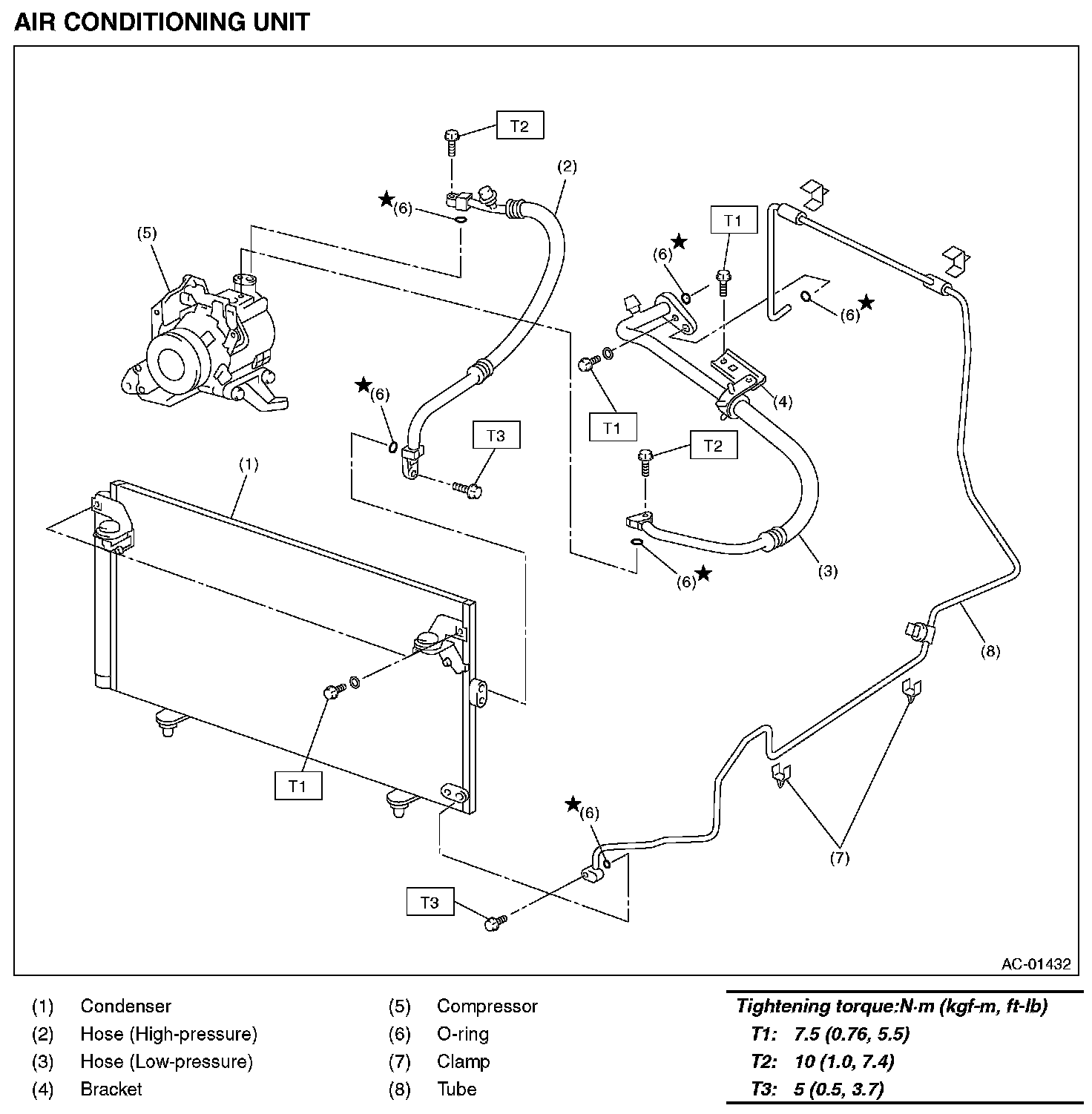

Air Condition Unit:

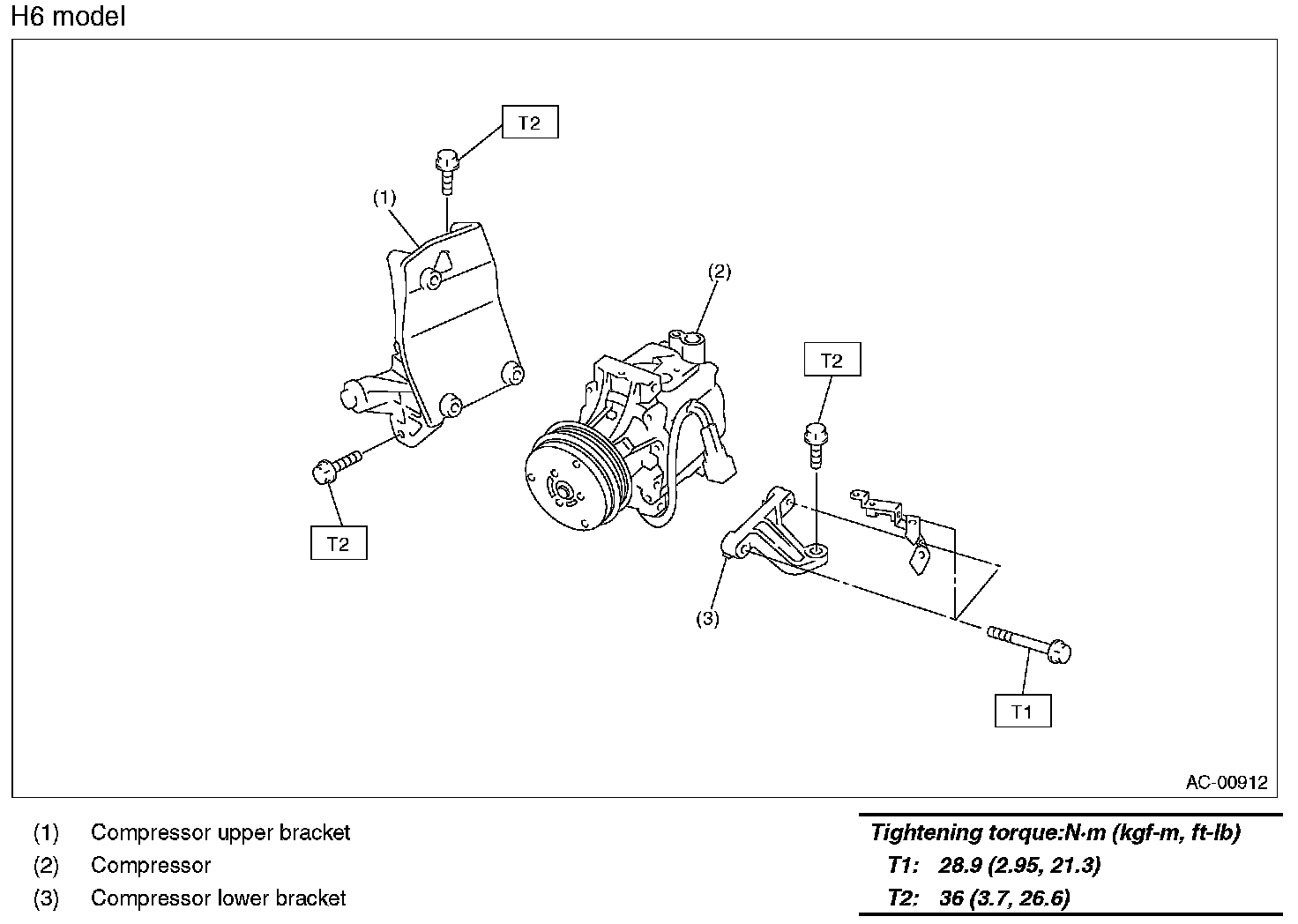

Compressor:

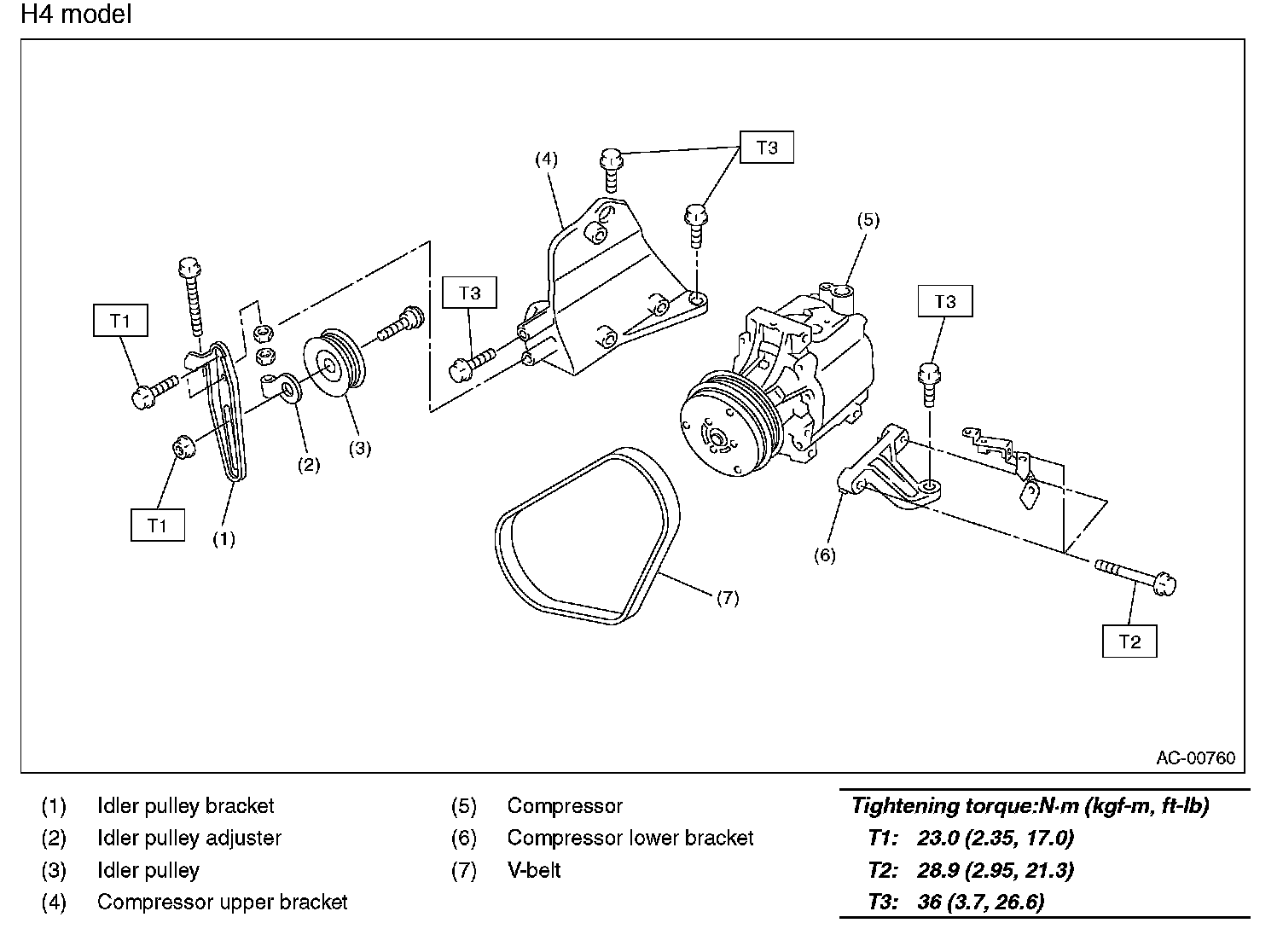

Compressor:

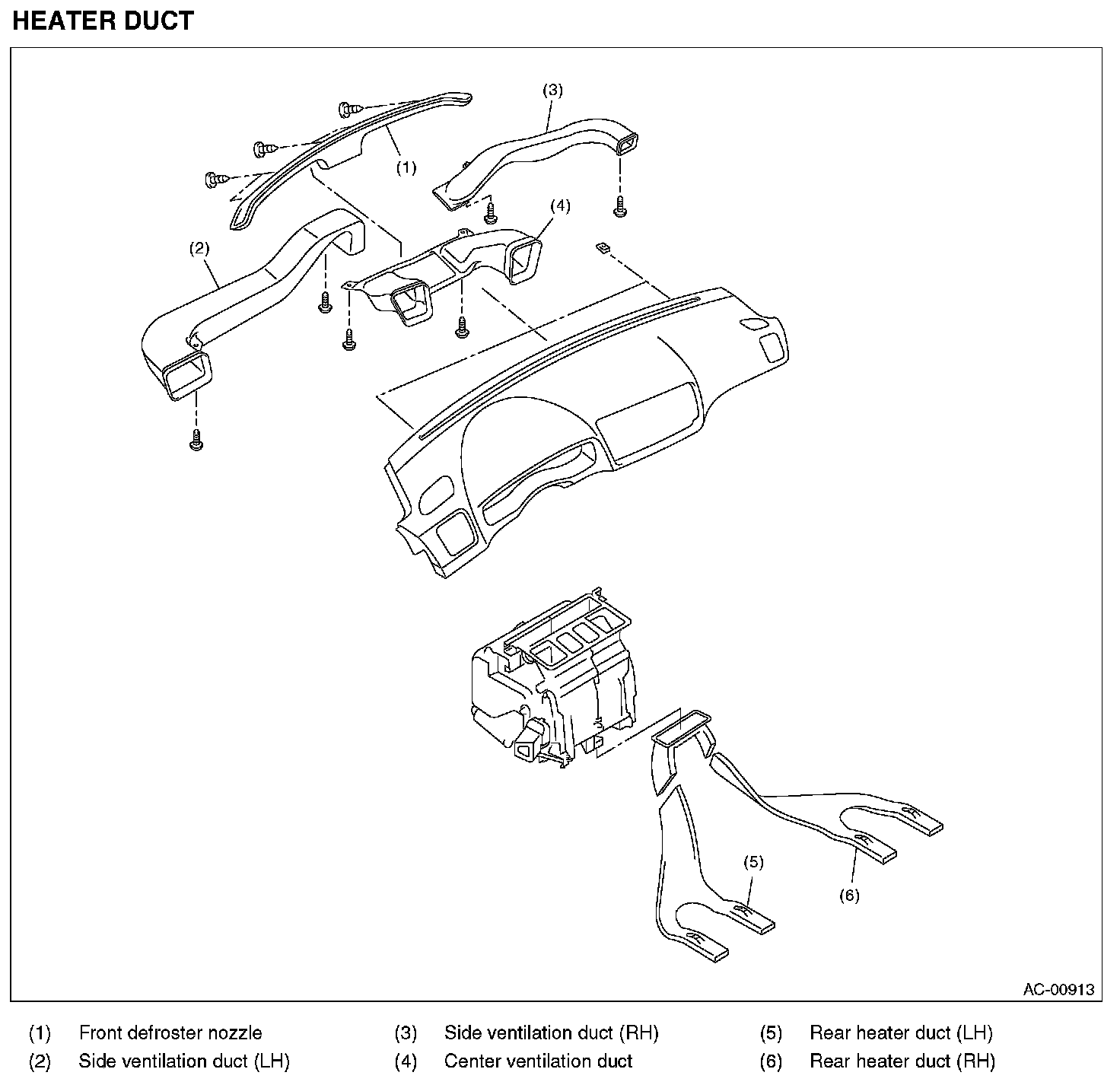

Heater Duct:
