Home >> Subaru >> 2008 >> Outback F6-3.0L DOHC >> Repair and Diagnosis >> Diagrams >> Connectors >> R1-R226 & AB17-AB56

R1-R226 & AB17-AB56

Rear Wiring Harness (Wagon Model)

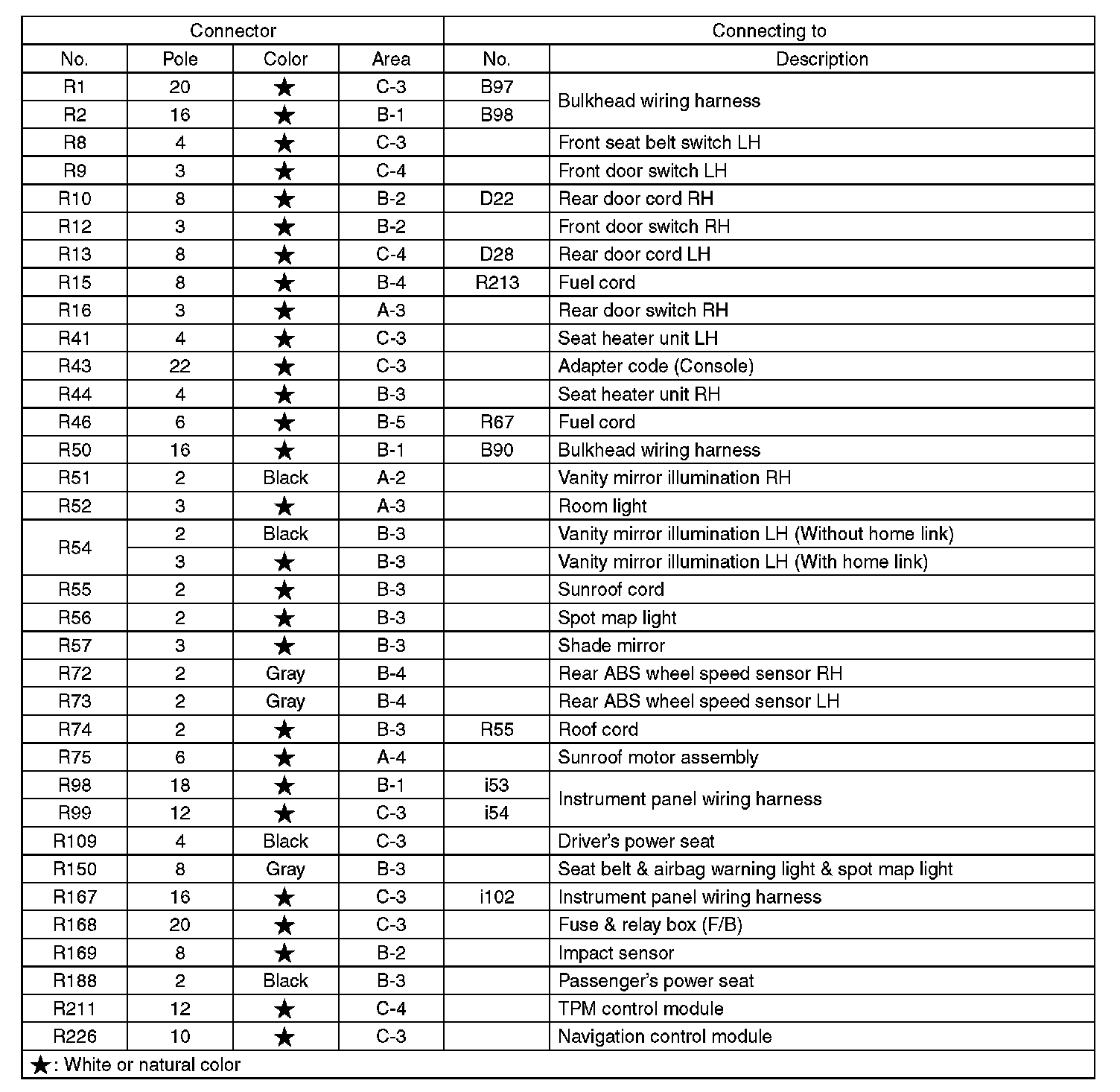

R1-R226:




AB17-AB56:

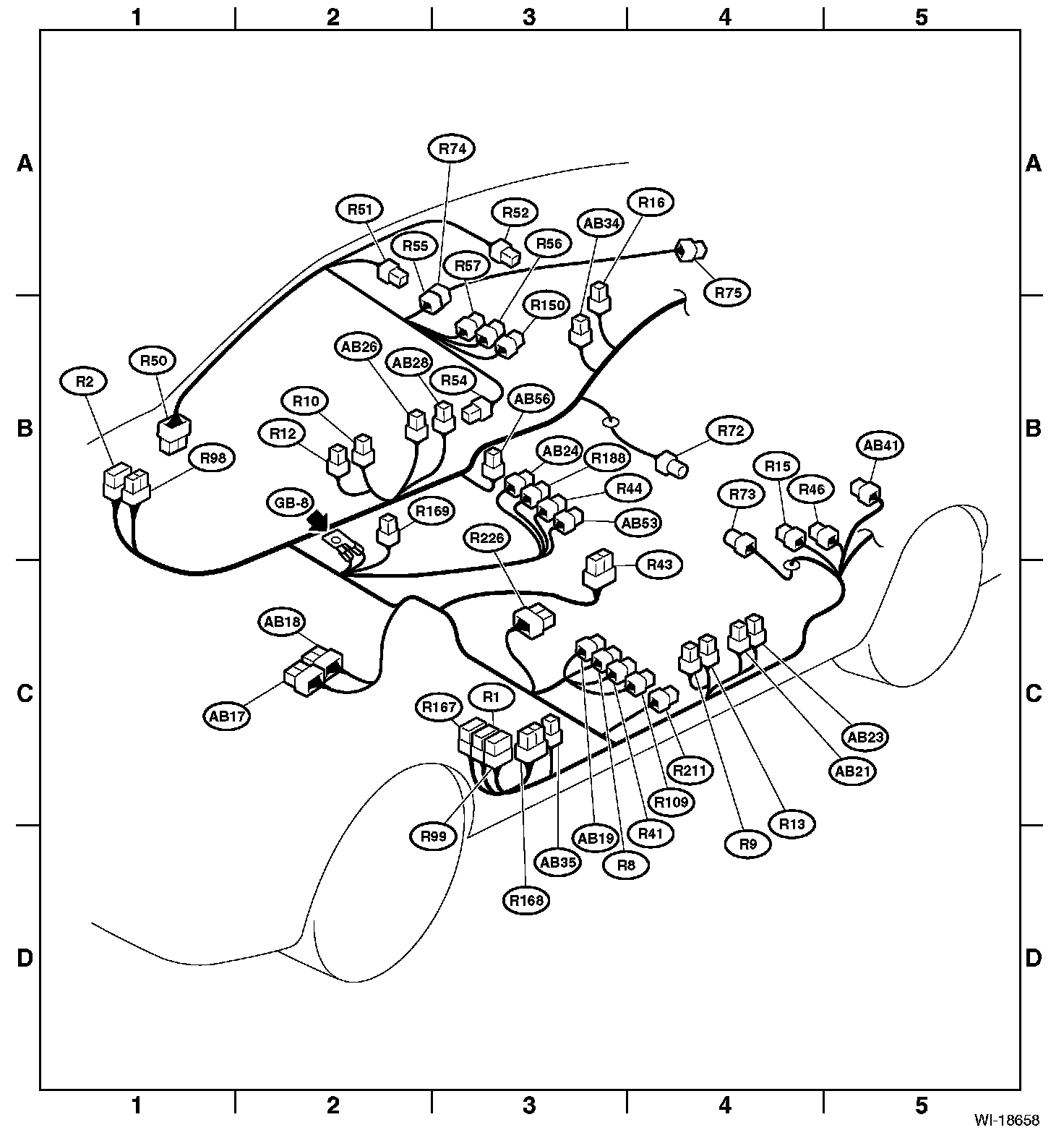

Area View:
