Rear

Rear Brake Pad

REMOVAL
1) Lift up the vehicle, then remove the rear wheels.

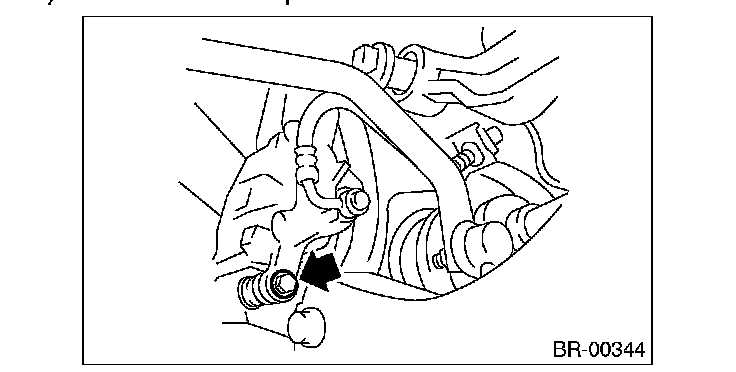

2) Remove the caliper bolt.





3) Raise the caliper body and support it.

NOTE: Do not disconnect the brake hose from the caliper body.

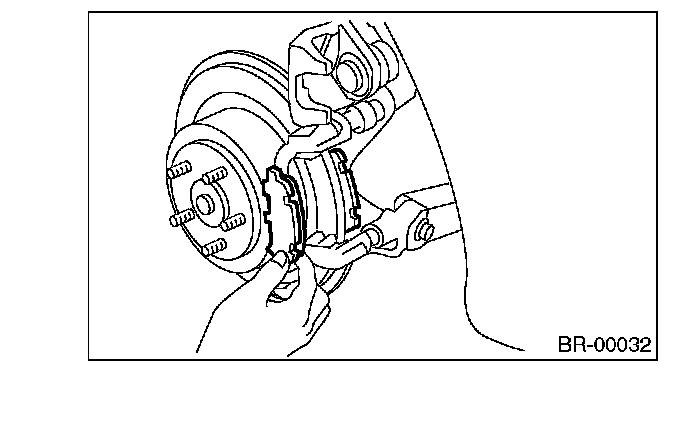

4) Remove the pad.

NOTE: If it is difficult to remove the brake pad, use the same procedure as front disc brake pad.





INSTALLATION

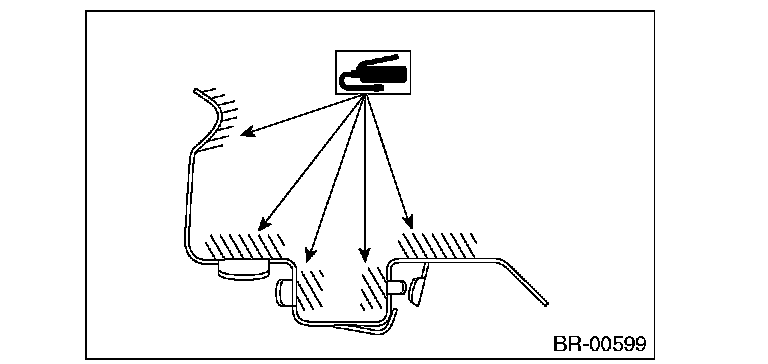

1) Apply a thin coat of Molykote M7439 (Part No. K0777YA000) to the pad clip.





2) Apply a thin coat of Molykote AS880N (Part No. K0779YA010) to the contact surface between the pad and shim.
3) Install the pad to support.
4) Install the caliper body to the support.
Tightening torque:
Solid disc brake model 27 N-m (2.8 kgf-m, 19.9 ft-lb)
Ventilated disc brake model 37 N-m (3.7 kgf-m, 27.2 ft-lb)

INSPECTION

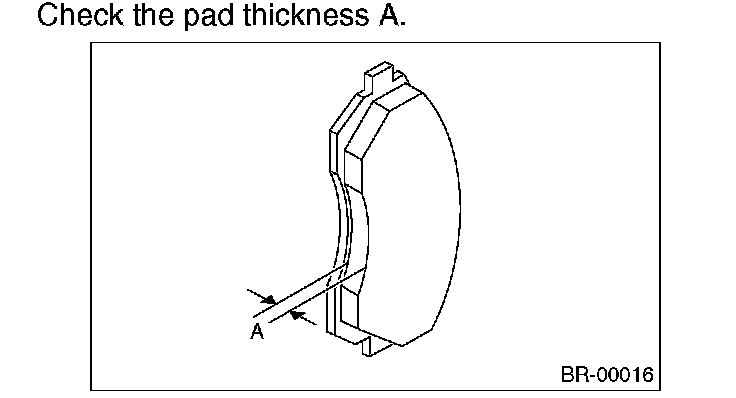

Check the pad thickness A.








NOTE:
^ Always replace the pads of both sides as a set.
^ Replace pad clips if they are twisted or worn.
^ A wear indicator is installed on the inner disc brake pad. If the pad is worn to the limit, the end of wear indicator contacts disc rotor, and a squeaking sound is heard as the wheel rotates. If the sound is heard, replace the pad. Replace the pad if there is oil or grease on it.
