Without DTC

WITHOUT DTC

DETECTING CONDITION:
^ Defective combination meter
^ Open circuit of harness TROUBLE SYMPTOM:
^ ABS warning light does not go off.
^ "NO TROUBLE CODE" will be displayed on the Subaru Select Monitor.

NOTE: When the ABS warning light is OFF and "NO TROUBLE CODE" is displayed on Subaru Select Monitor, the system is in normal condition.

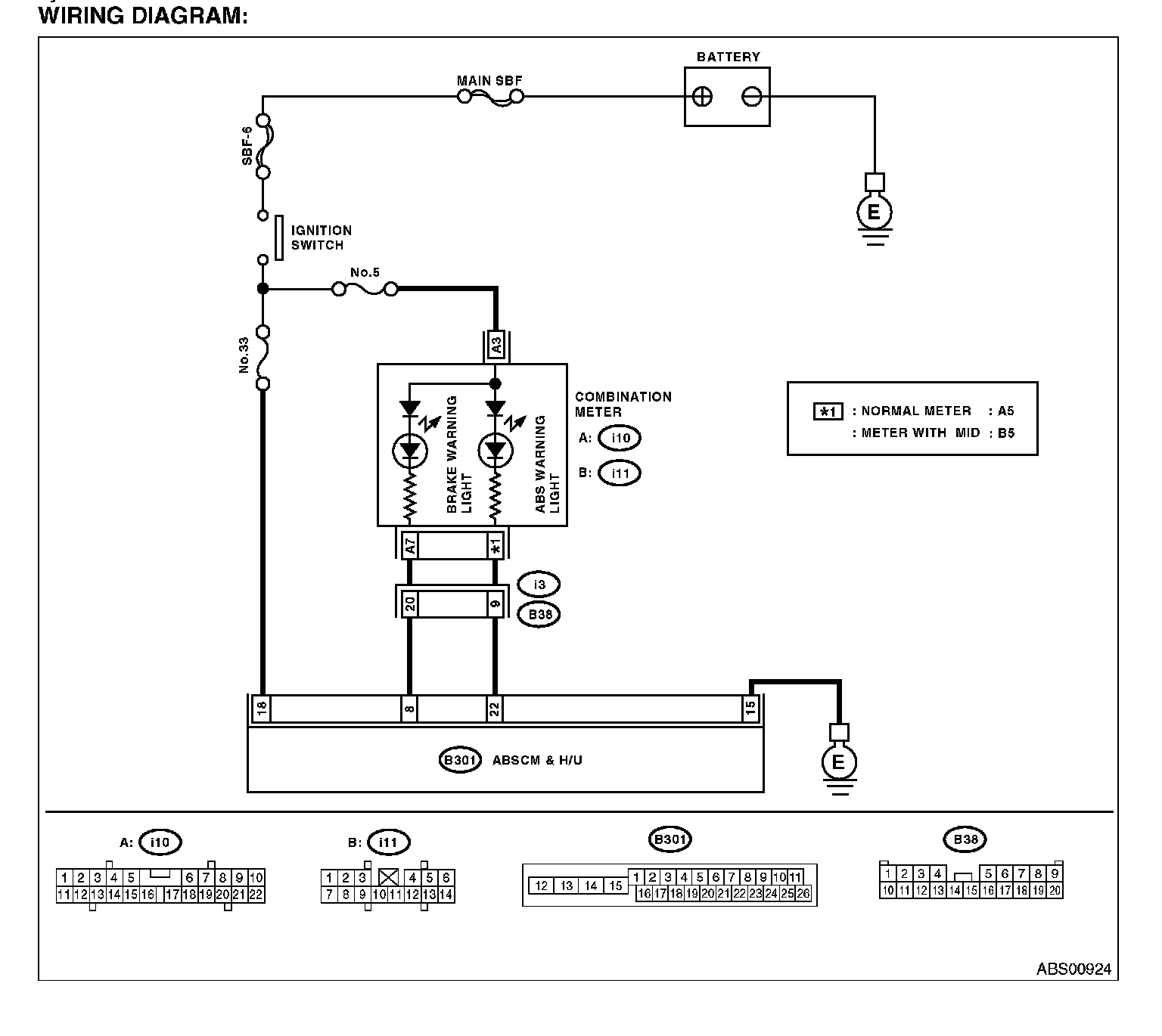

WIRING DIAGRAM:

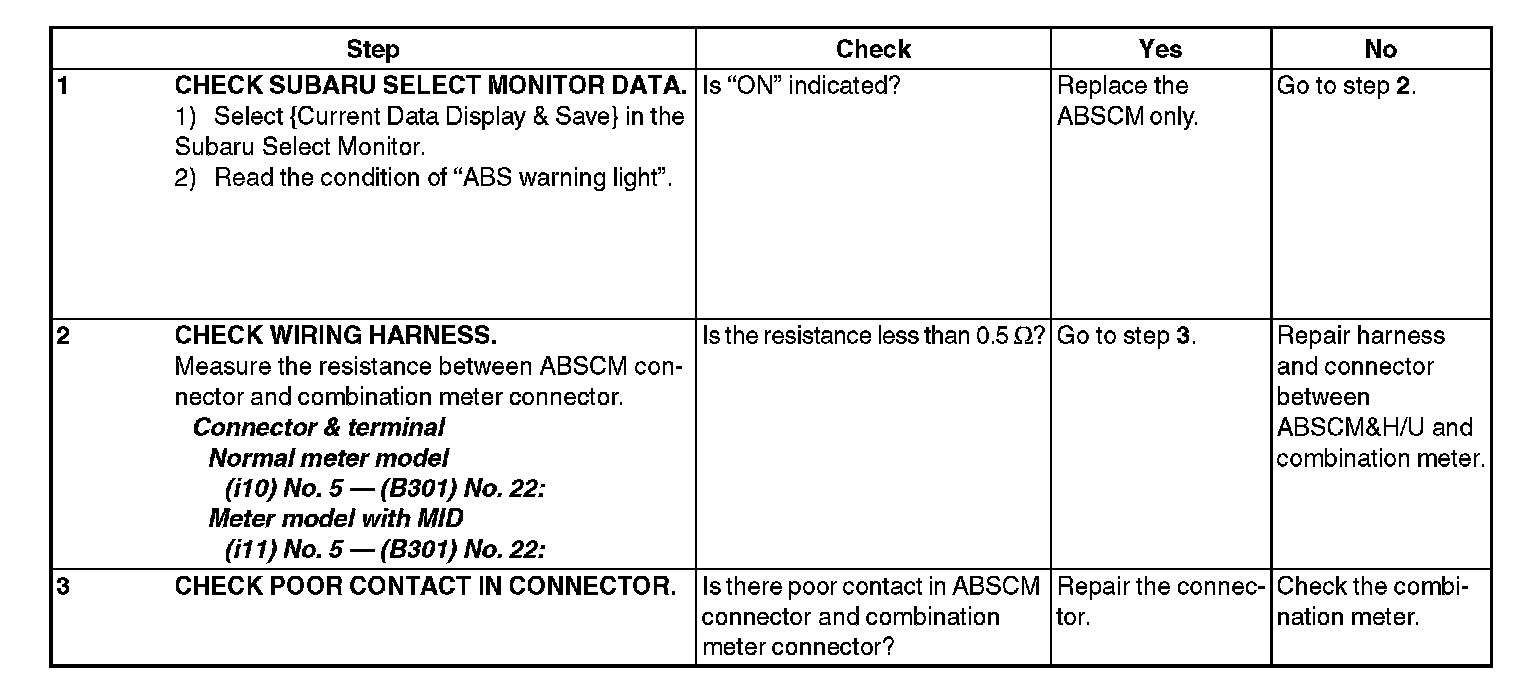

Step 1-Step 3:
