With VDC

Control Module I/0 Signal

ELECTRICAL SPECIFICATION





NOTE:

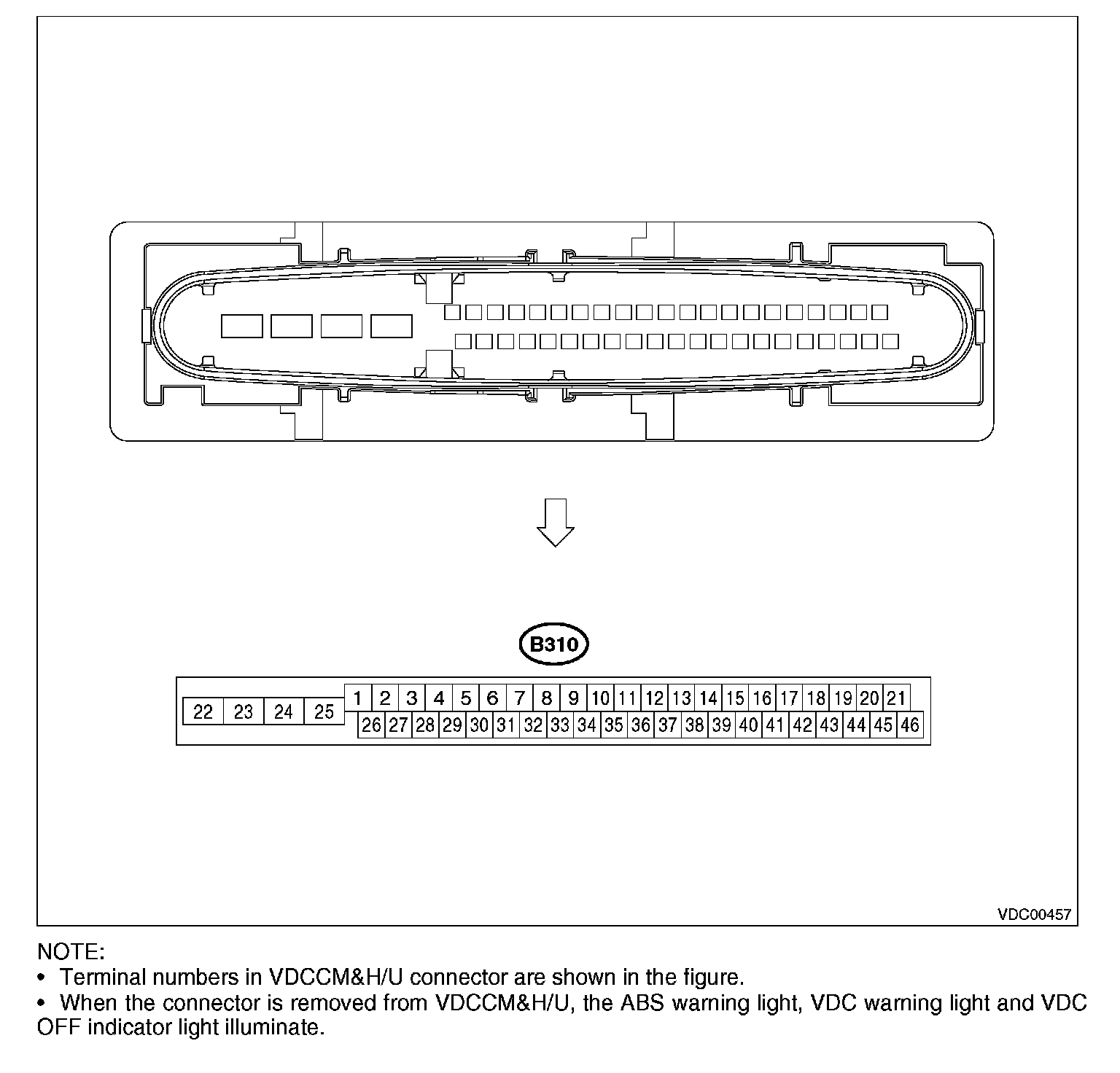

^ Terminal numbers in VDCCM & H/U connector are shown in the figure.
^ When the connector is removed from VDCCM & H/U, the ABS warning light, VDC warning light and VDC OFF indicator light illuminate.

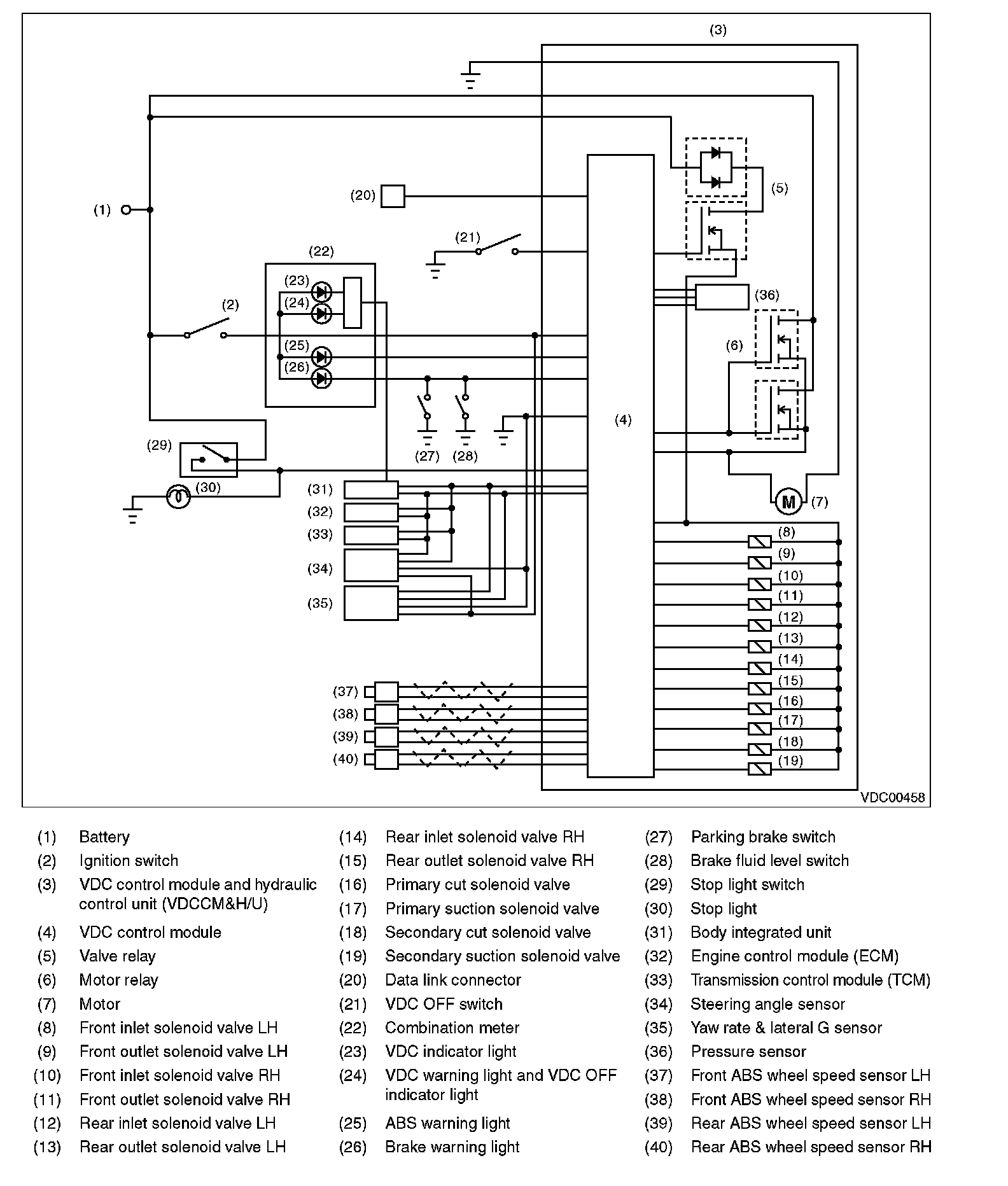

WIRING DIAGRAM
